Hydraulic Modulator: Installation

To install, reverse removal procedure. Tighten hydraulic modulator mounting nuts to 95 INCH lbs. (11 N.m). Tighten brake lines to 108 INCH lbs. (12 N.m). Refill brake master cylinder, bleed brakes and check for leaks.

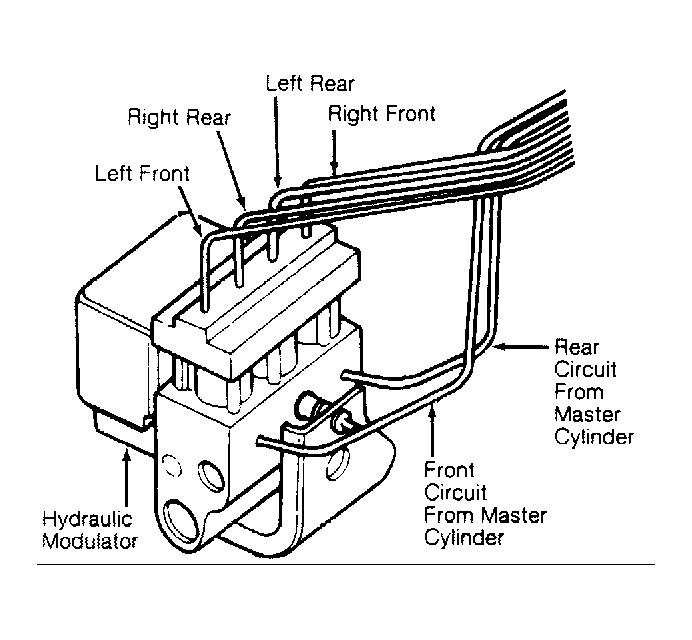

Fig 1: Identifying Brake Line Position

Courtesy of GENERAL MOTORS CORP.
