BCM Connector Pin Identification

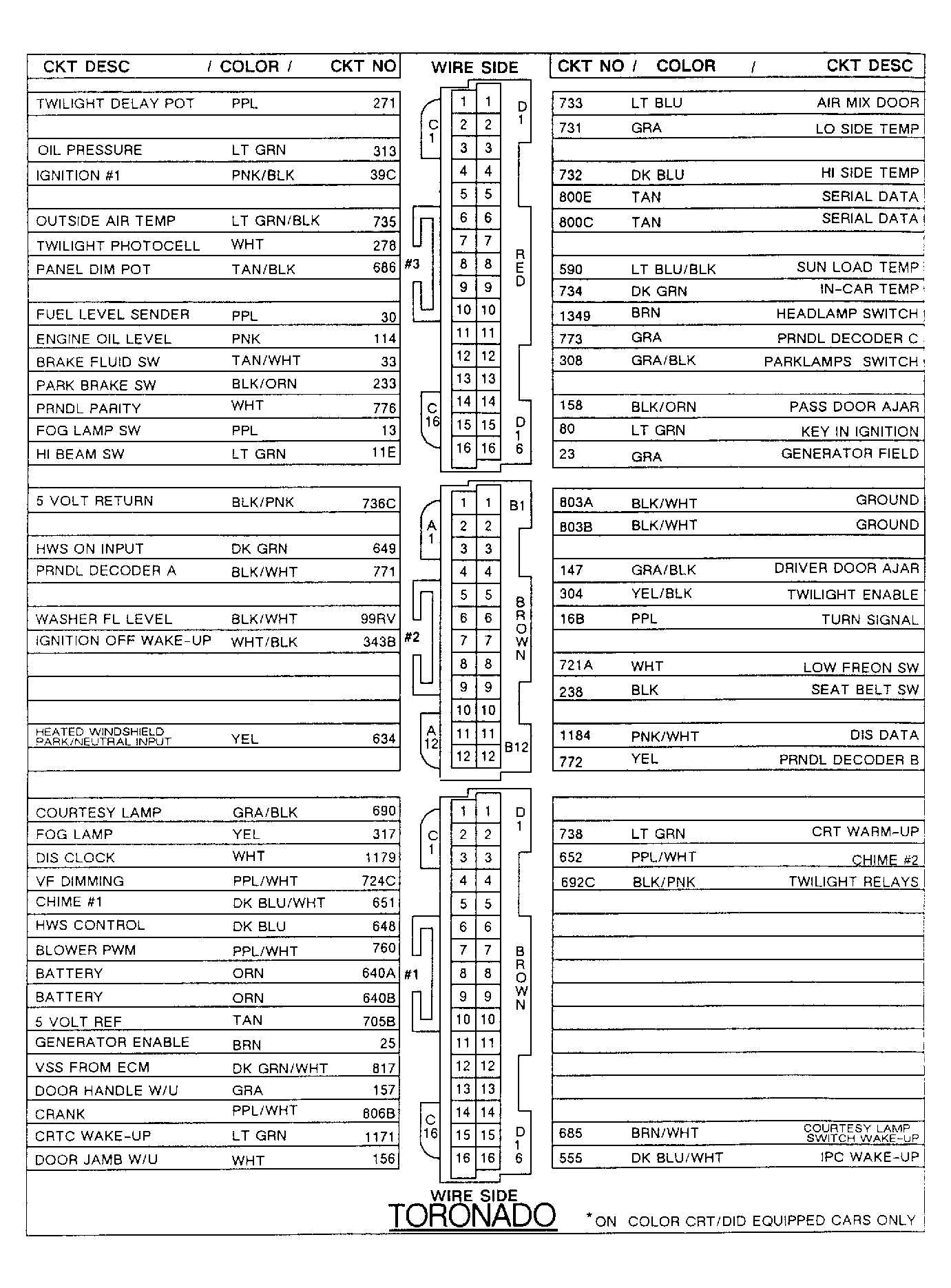

Fig 1: Locating BCM Electrical Connector Pins (Wire Side View)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
