Lower Transaxle Assembly

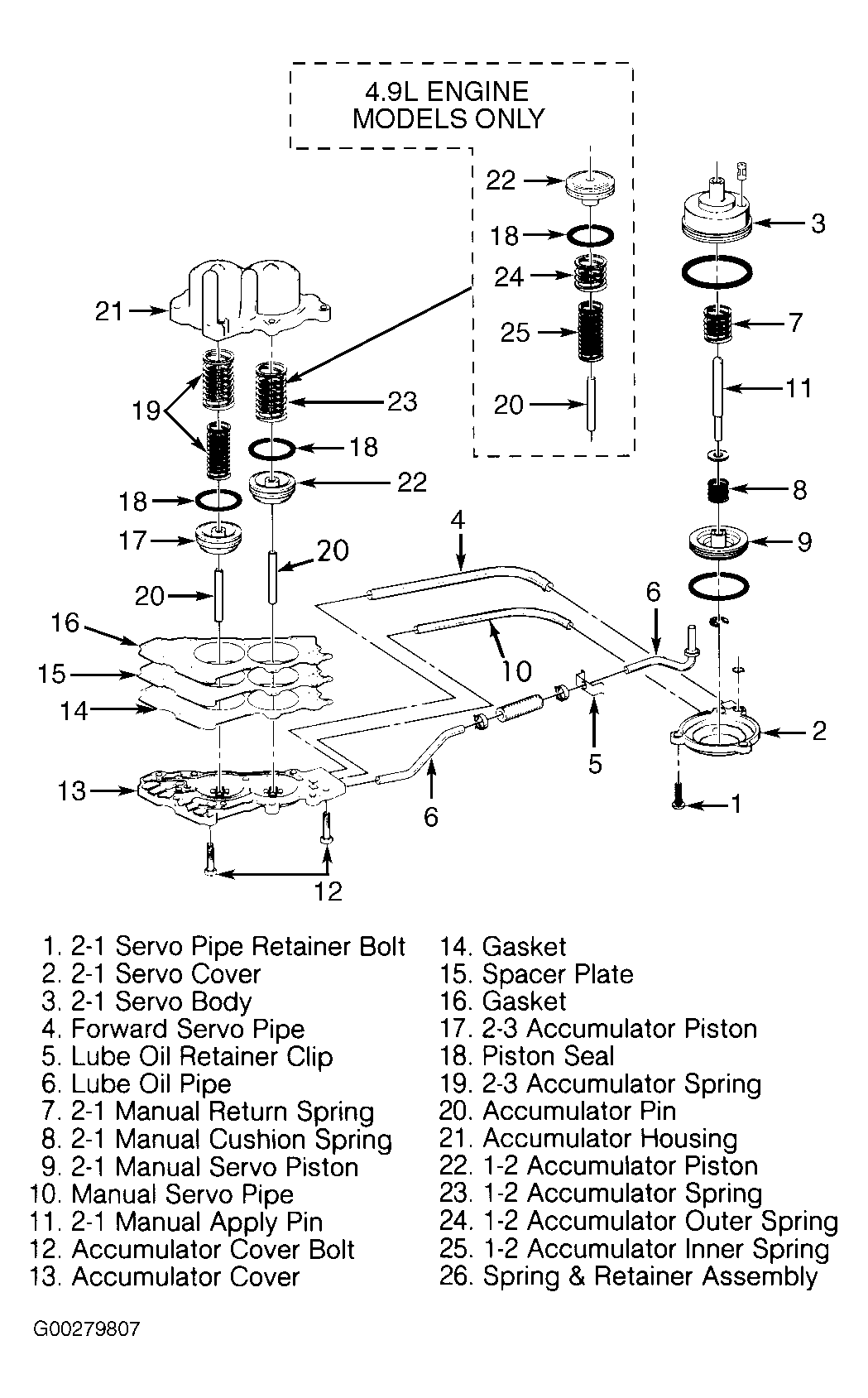

Remove bottom oil pan, oil filter, accumulator cover with 2-1 servo feed and return pipes. Remove modulator and modulator valve. Remove all retainers, gaskets, pipes and accumulator piston assemblies from bores (DO NOT interchange springs). See Fig 1 .
