Fuse Block: Application and ID

Behind LH Side Of I/P:





Behind LH side of I/P

Fuse Panel Details:




Fuse Panel Details:

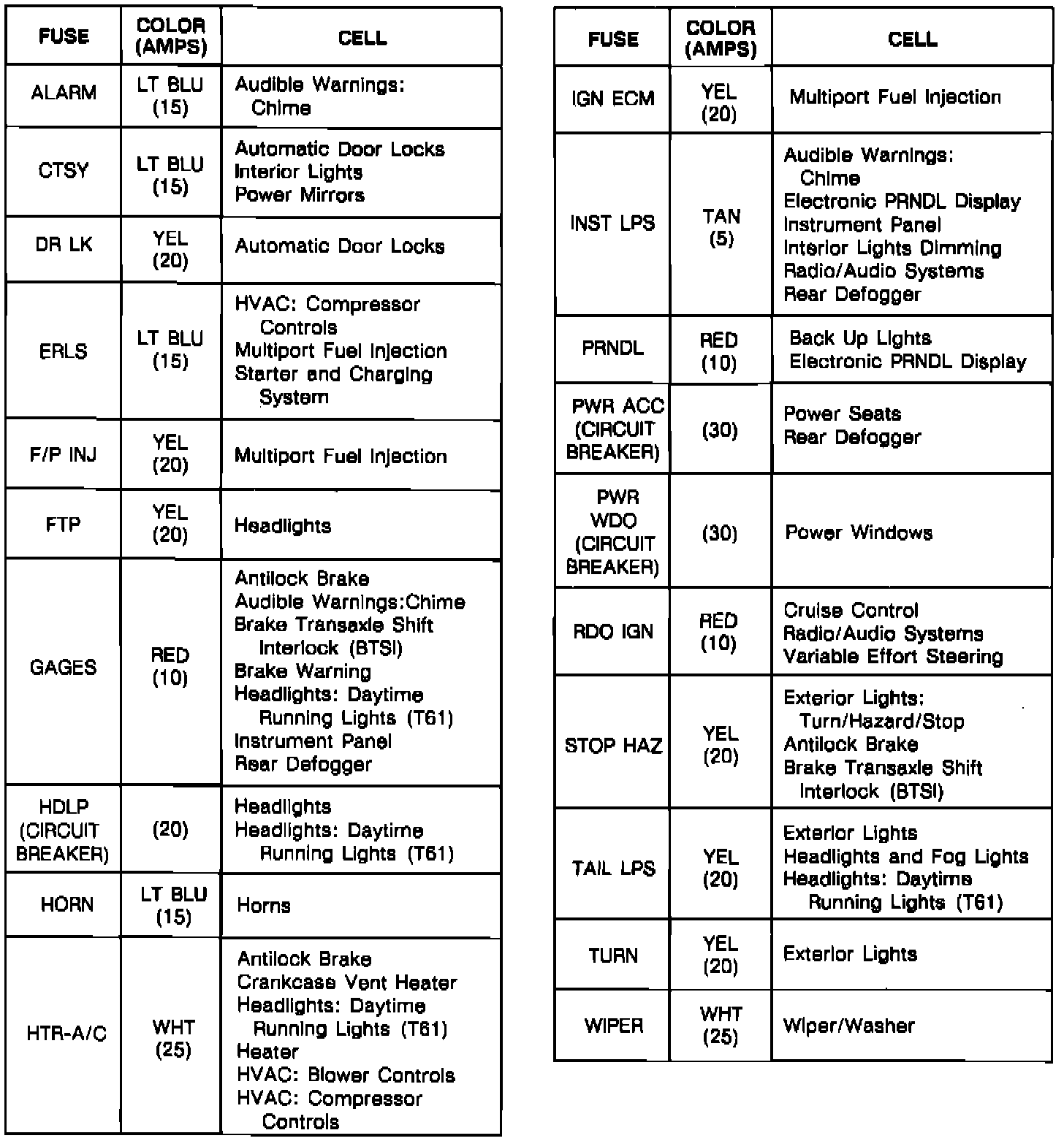

Fuse Block Details
