Component Locations

COMPONENT LOCATIONS

Component

Location

Bus Bar Ground

⁽¹⁾ , ⁽³⁾ Behind LH Side Of Instrument Panel (I/P), On The Steering Column Bracket

Fuse Block

⁽¹⁾ Behind LH Side Of I/P

Outside Rearview Mirror Switch

Below Heater-A/C Controller

Power Mirror

In Respective Door

C206A

⁽³⁾ Behind LH Side Of I/P, Above Brake Pedal Support Bracket

C292

⁽¹⁾ Behind LH Side Of I/P

C295

Behind RH Side Of I/P

C296

⁽²⁾ Behind LH Side Of I/P

C296A

Behind LH Side Of I/P, At Kick Panel

C297

⁽¹⁾ Behind RH Side Of I/P, At Kick Panel

C298

⁽²⁾ Behind Center Of I/P

C298A

⁽²⁾ Behind Center Of I/P

C502

⁽²⁾ Inside LH Door

C602

⁽²⁾ Inside RH Door

P300

⁽²⁾ LH Cowl Side Panel

P301

⁽²⁾ RH Cowl Side Panel

P500

⁽¹⁾⁽²⁾ LH A-Pillar

P600

⁽¹⁾⁽²⁾ RH A-Pillar

S210

⁽³⁾ Behind LH Side Of I/P, Near I/P Cluster

S228

⁽¹⁾ Behind LH Side Of I/P, Near Bus Bar Ground

S230

⁽¹⁾ Behind RH Side Of I/P, Above Kick Panel

S236

⁽¹⁾ Behind LH Center Of I/P, Near Bus Bar Ground

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

⁽³⁾	See Fig 3 .

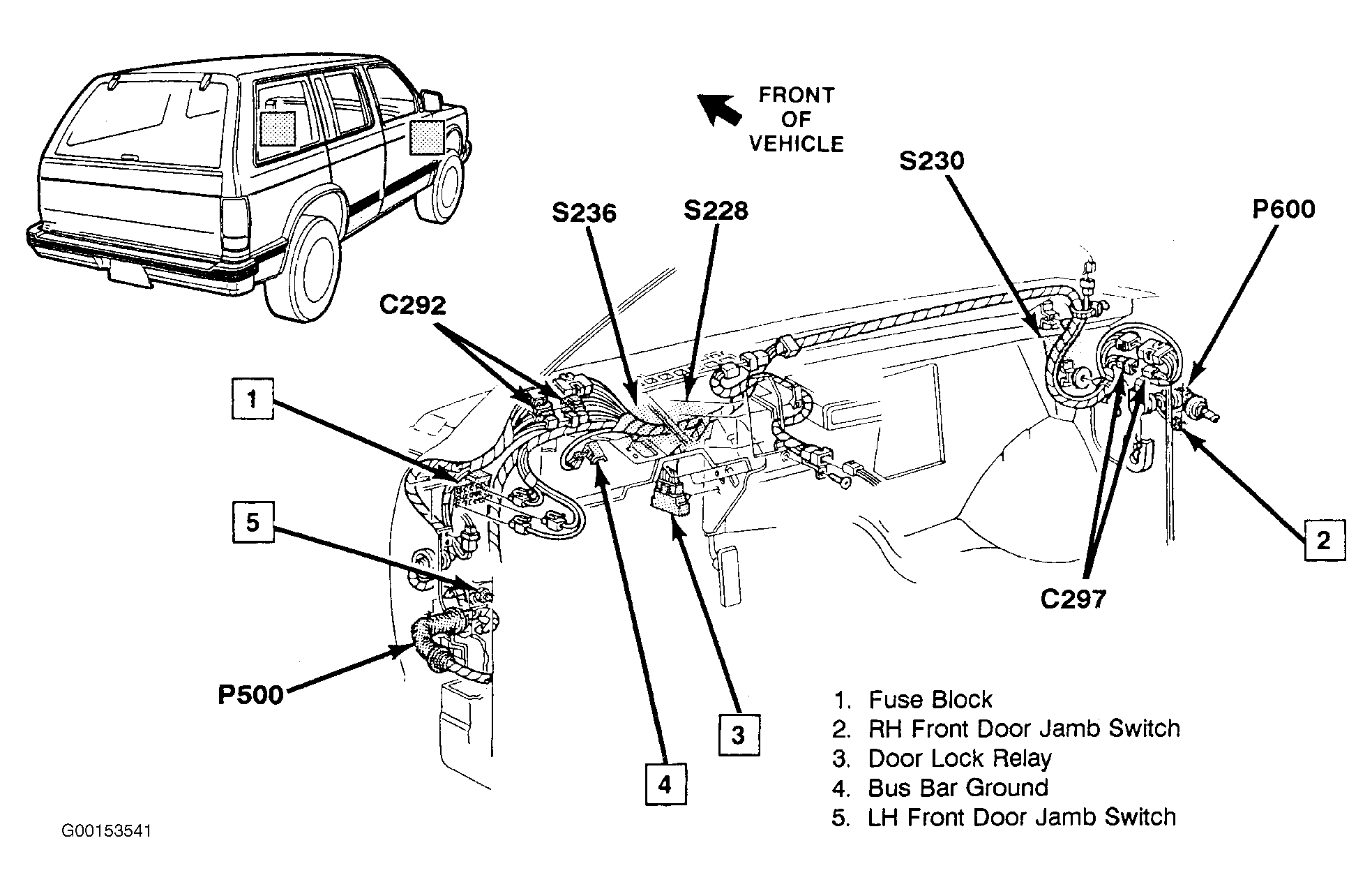

Fig 1: Locating Power Mirror Components

Courtesy of GENERAL MOTORS CORP.

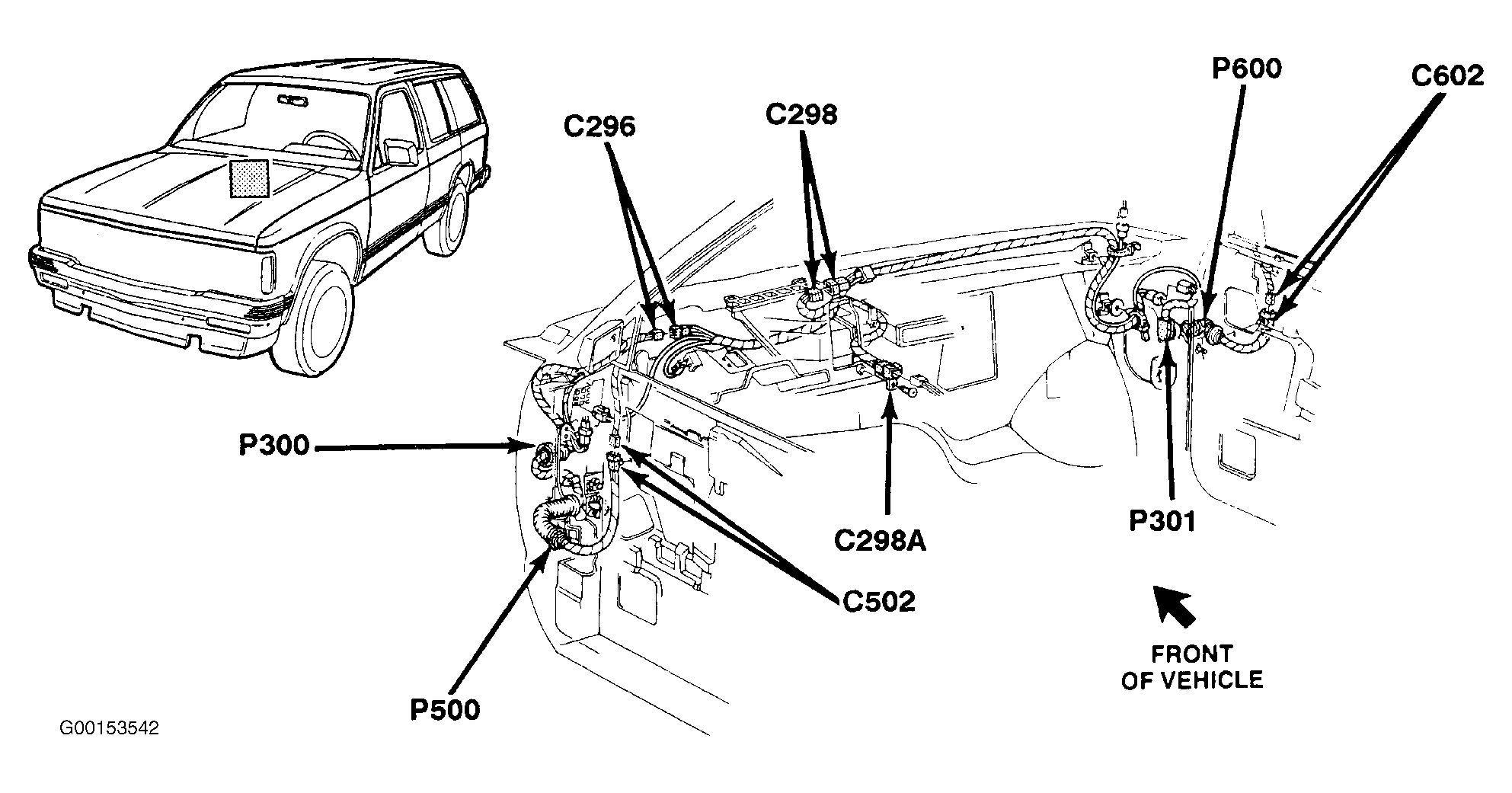

Fig 2: Identifying Power Mirror Wiring (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

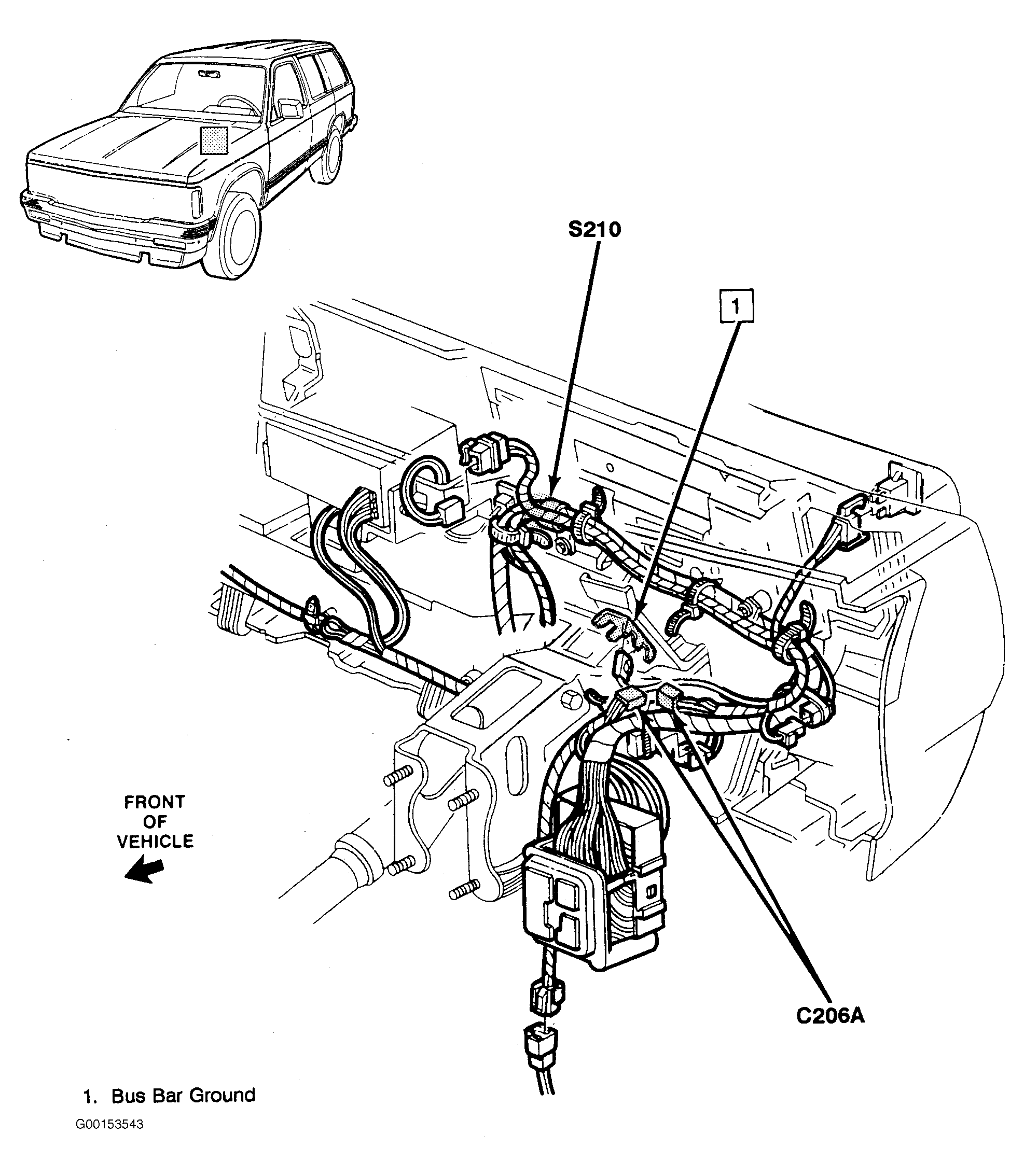

Fig 3: Identifying Power Mirror Wiring (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
