Diagnostic Aids

Tech 1 has the ability to command the MIL and TEMP/CHECK GAUGES light on and off. A faulty driver circuit or poor connection can result in setting of Code 26.

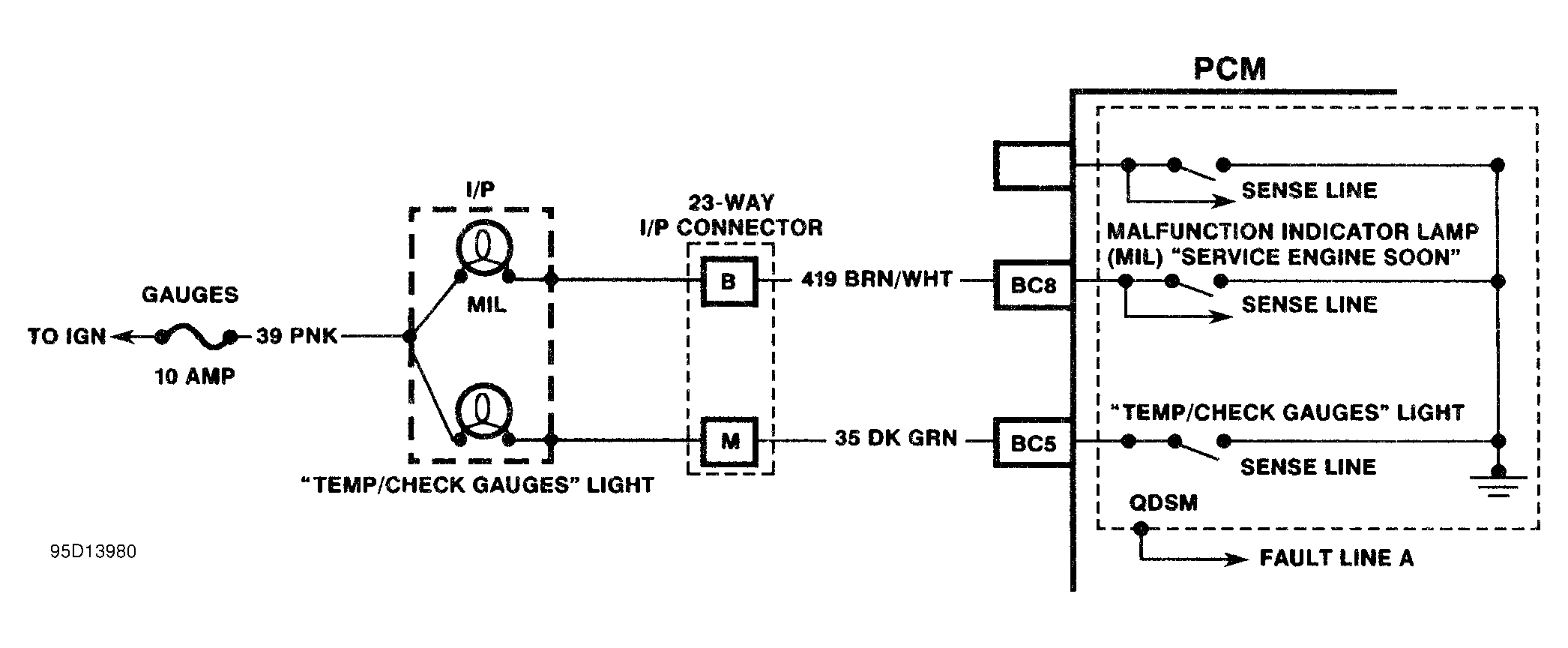

Fig 1: Code 26 Schematic (2.3L) Quad-Driver Module Error

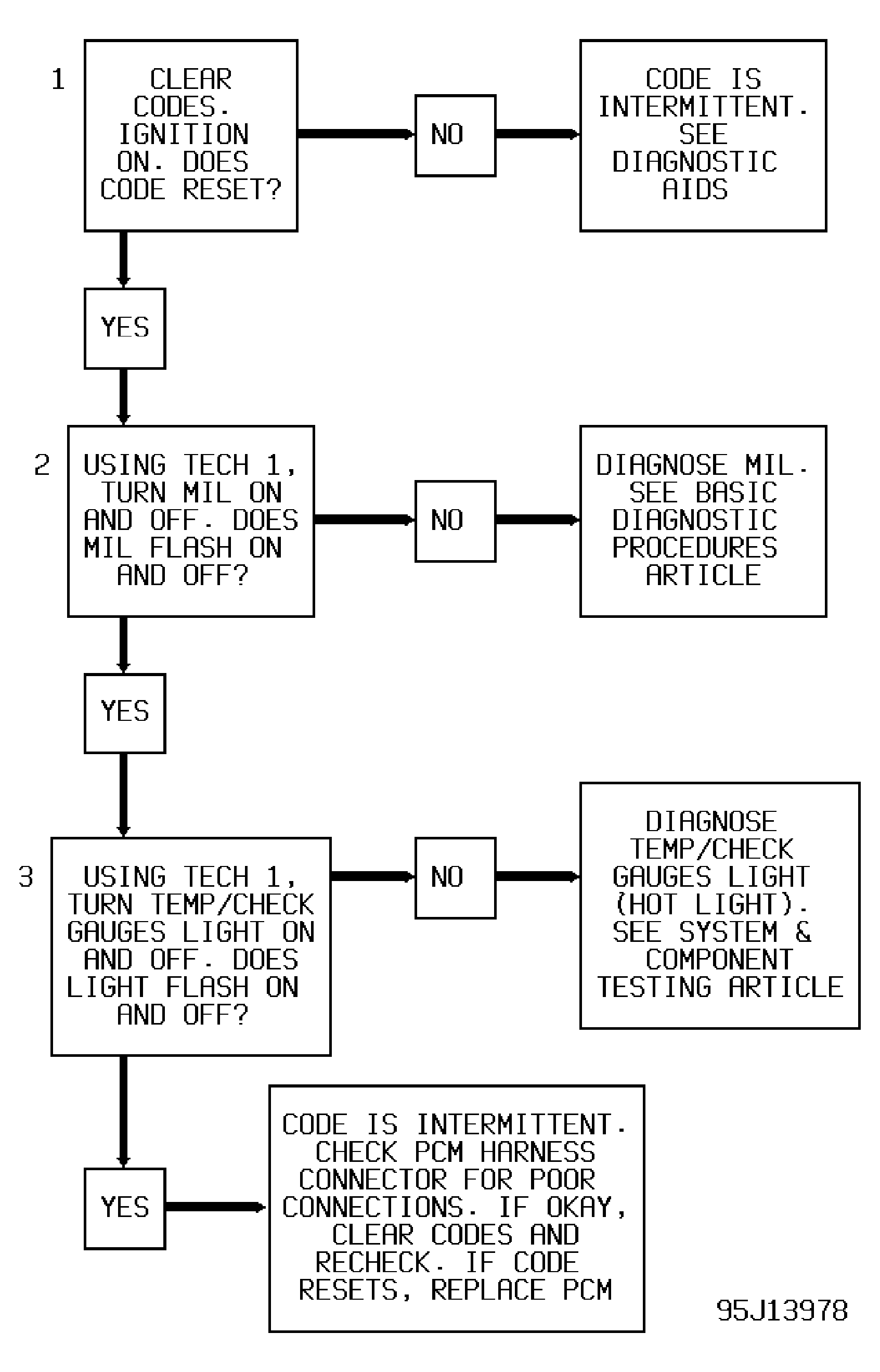

Fig 2: Code 26 Diagnostic Flow Chart (2.3L) Quad-Driver Module Error
