Test Description

Fig 1: Code P1565 Schematic (3.8L) Cruise Servo Position
G95A13870

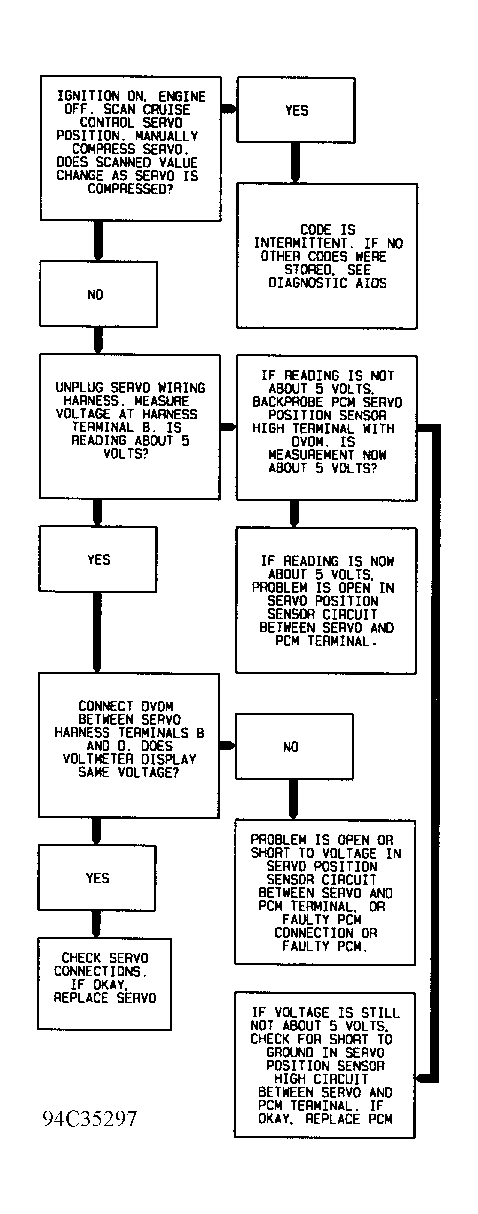

Fig 2: Code P1565 Diagnostic Flow Chart (3.8L) Cruise Servo Position
G94C35297
