Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|
| Convenience Center | Center dash, near tie bar. |
| Engine Compartment Fuse Center | Left side of engine compartment. See Figure . |

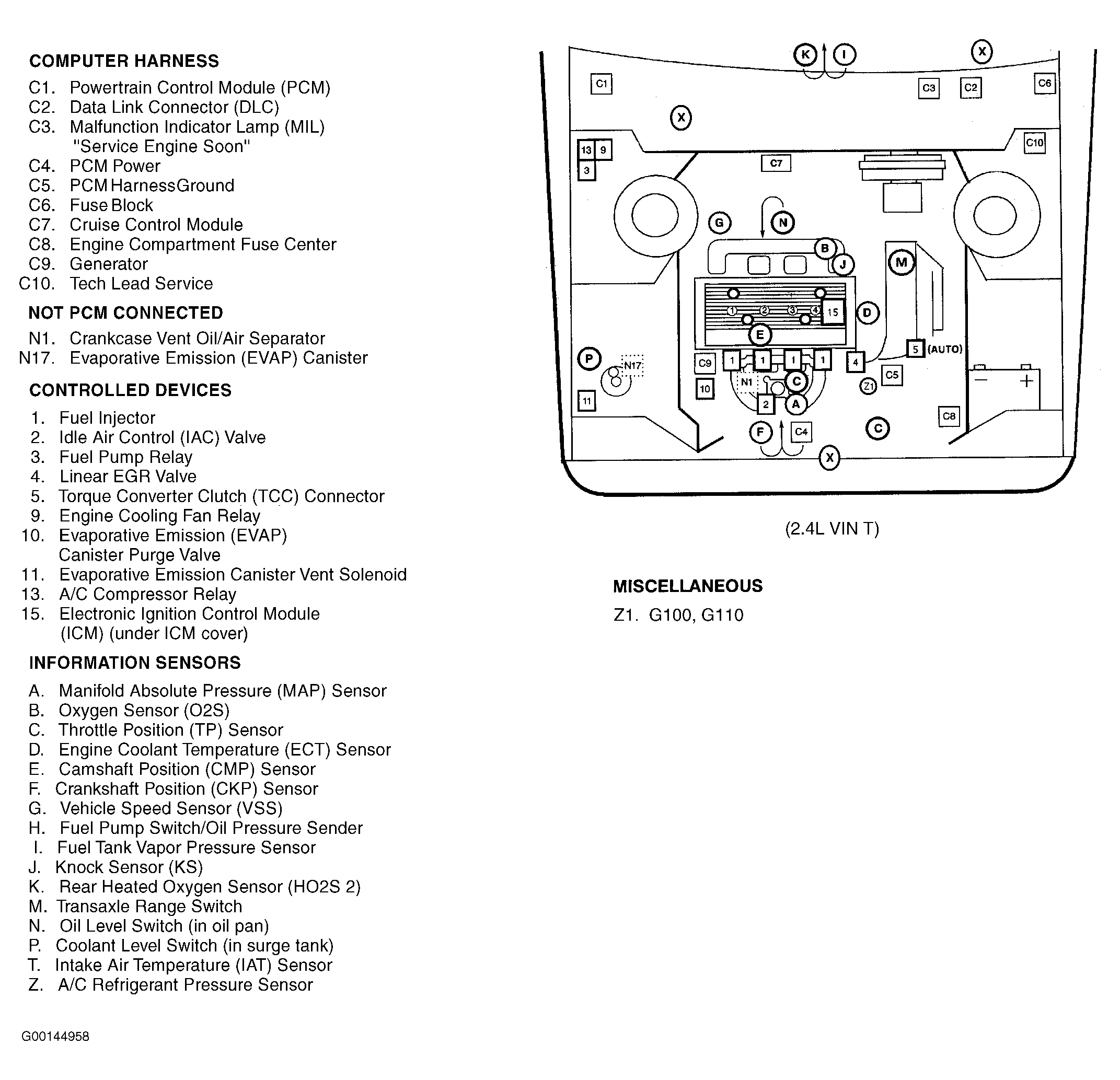

| Fuse Block (2.4L VIN T) | Under left side of dash, left of steering column. See Figure . |

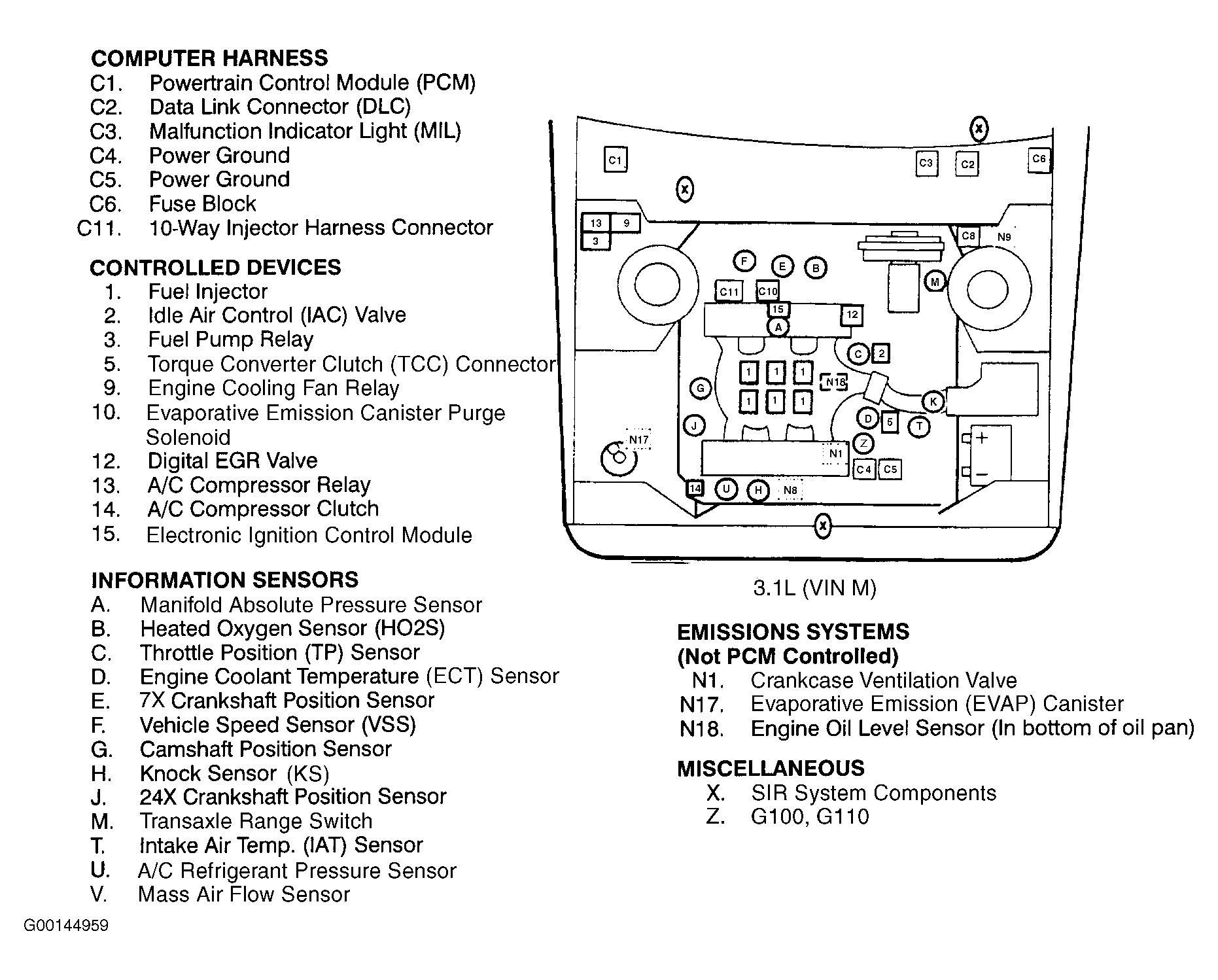

| Fuse Block (3.1L VIN M) | Under left side of dash, left of steering column. See Figure . |
| Fusible Link G | At starter solenoid. |
