Removal & Installation

Disconnect negative battery cable. Open trunk lid. Remove left inner trim panel. Disconnect 2 electrical connectors. Drill out module rivets. Remove module. See Fig 1 . To install, reverse removal procedure. Program module to match transmitter(s). See PROGRAMMING PROCEDURE  .

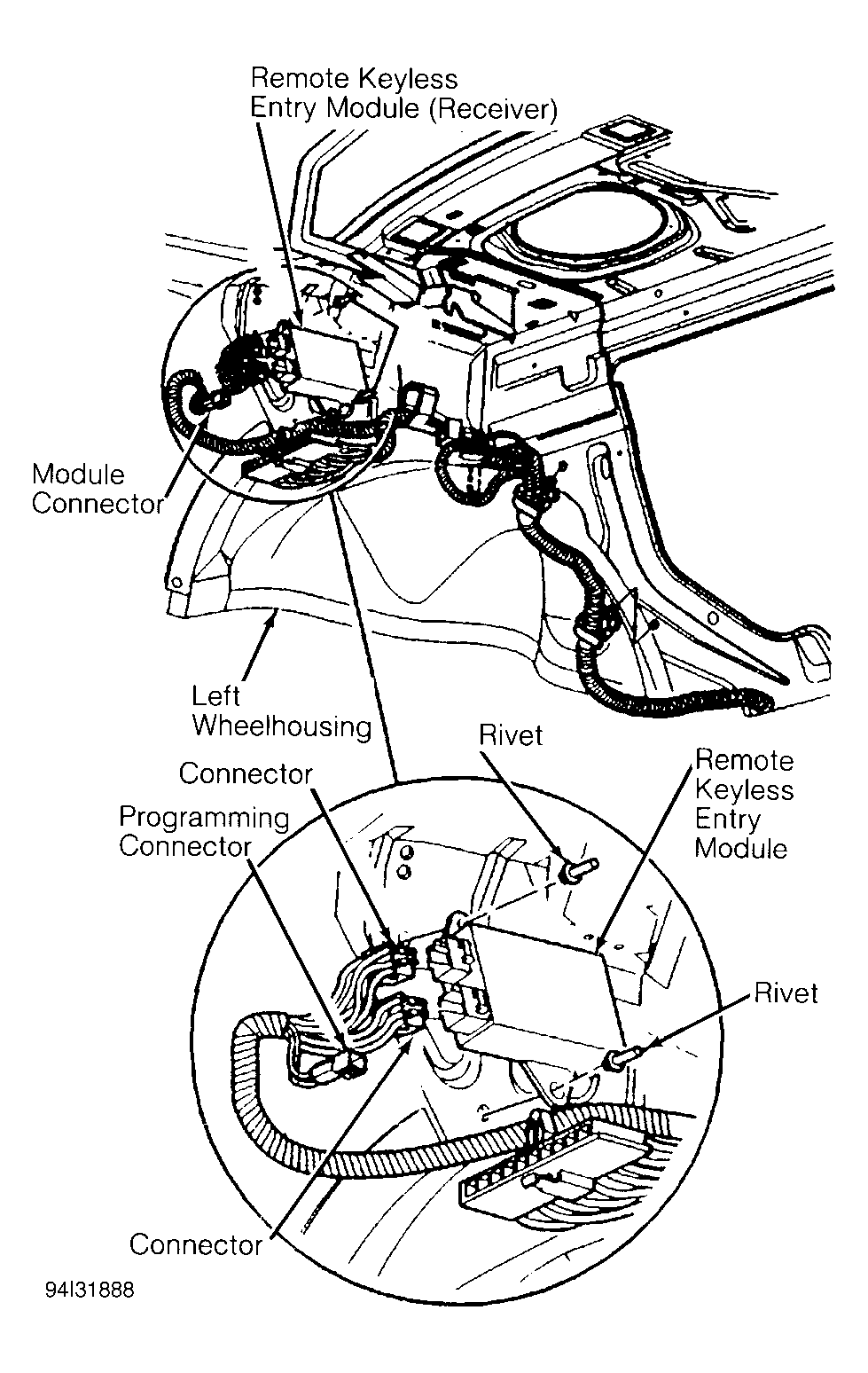

Fig 1: Removing Remote Keyless Entry Module (Receiver)

Courtesy of GENERAL MOTORS CORP.
