Home
>>
Oldsmobile
>>
1997
>>
Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Interior Lighting Module
>>
Diagrams
>>
Electrical Diagrams
>>
Interior Lamp Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

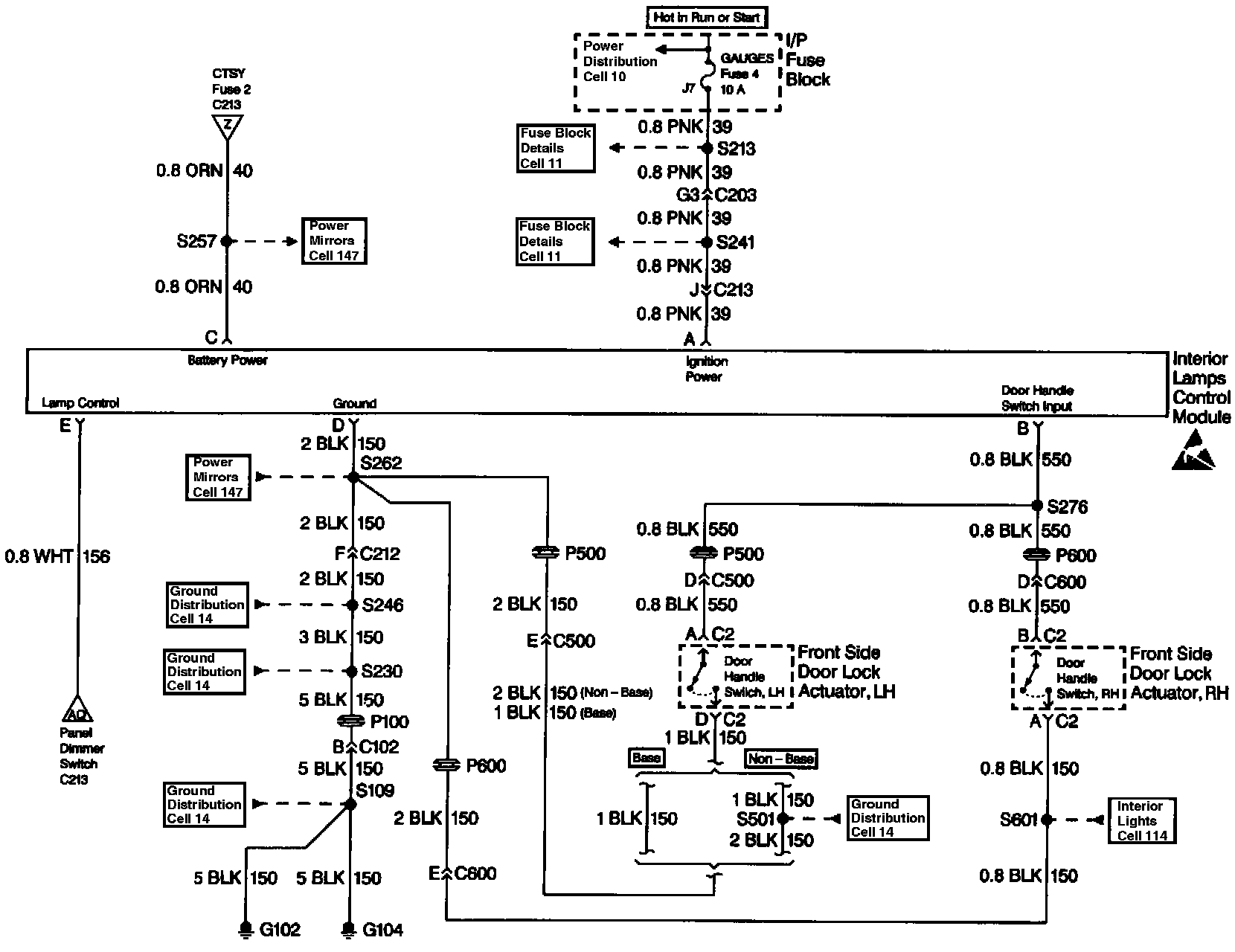

Interior Lamp Control Module
Gauges Fuse 4 - With Interior Lamps Control Module:
