Fuse Application Table

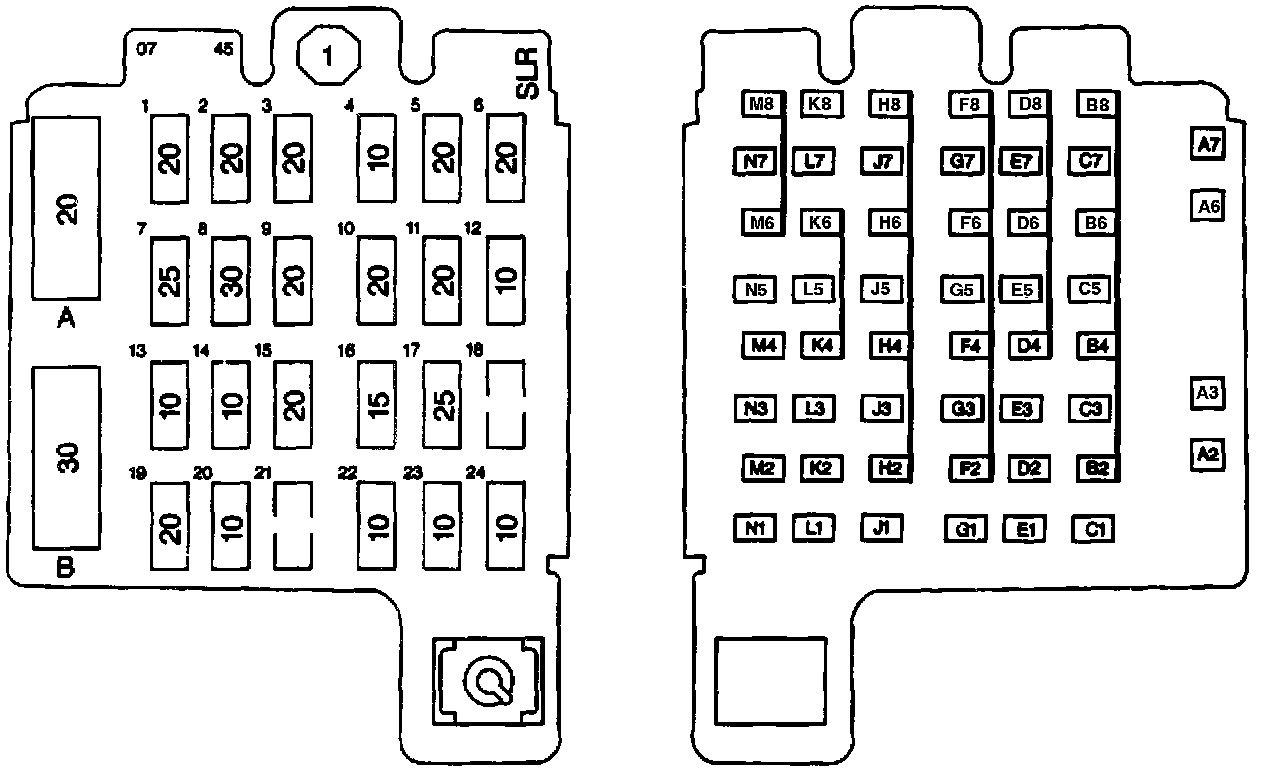

Fuse Block Details:

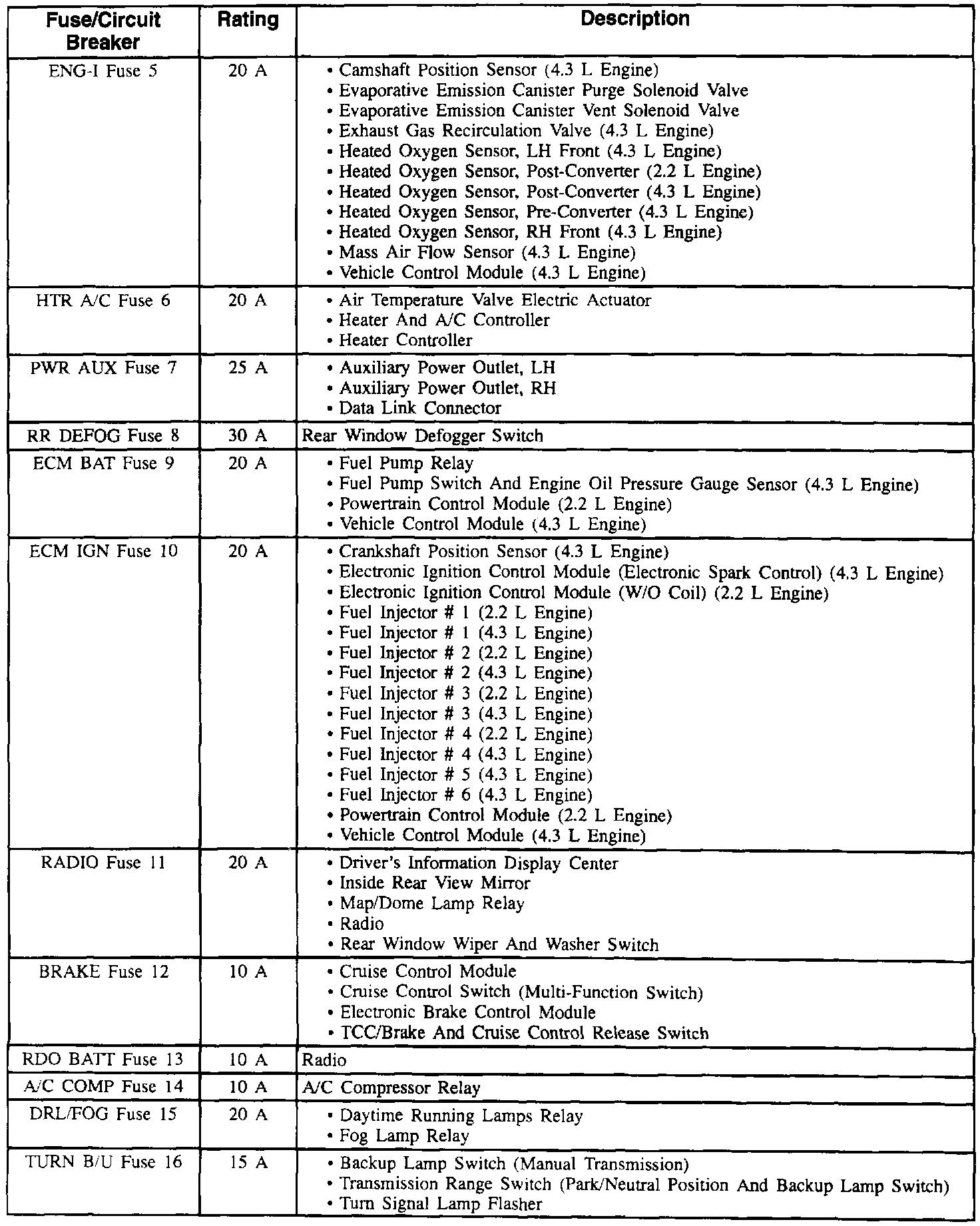

Fuse Application Table (Part 1 Of 3):

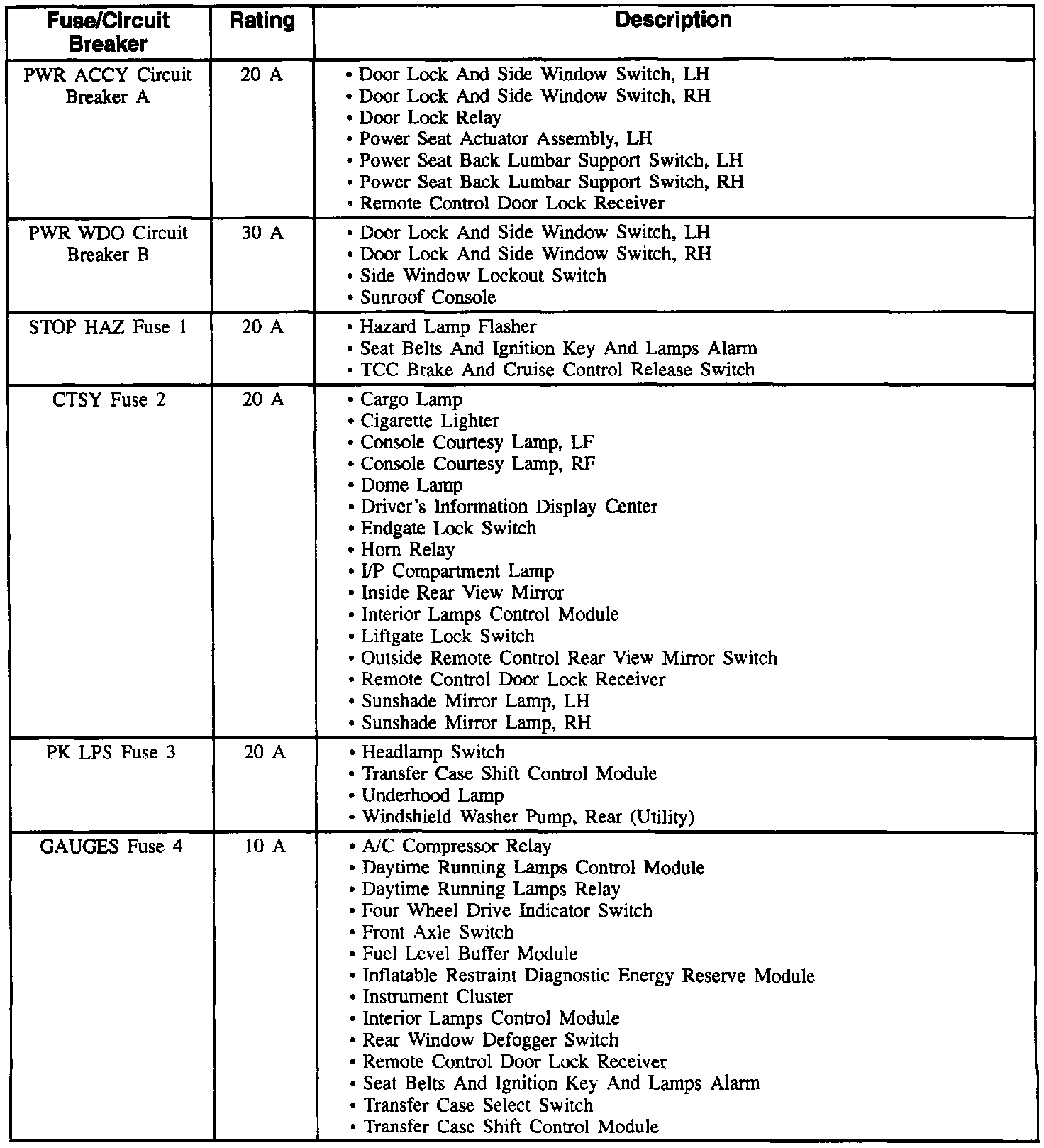

Fuse Application Table (Part 2 Of 3):

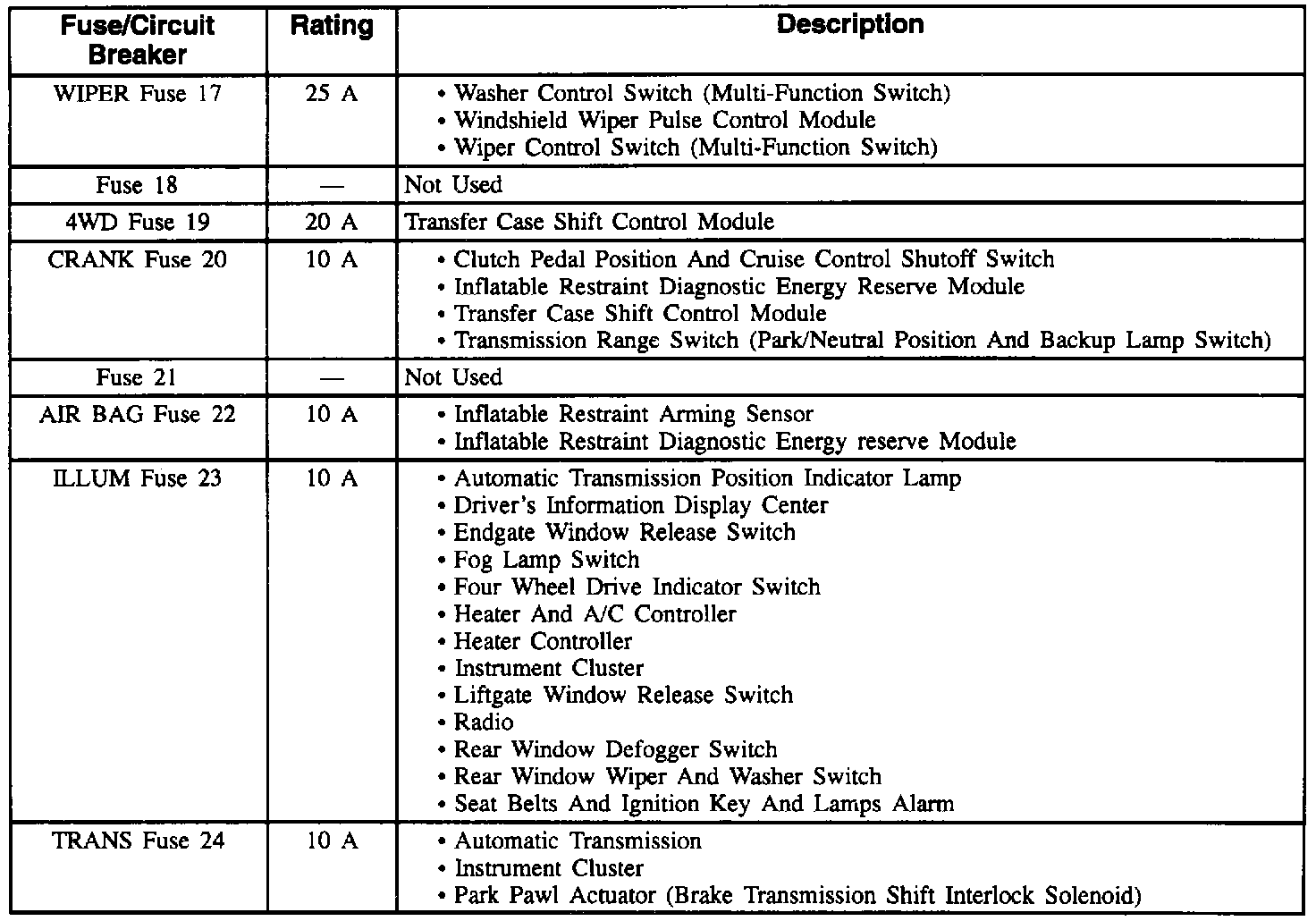

Fuse Application Table (Part 3 Of 3):
