ACHIEVA, Grand Am & Skylark

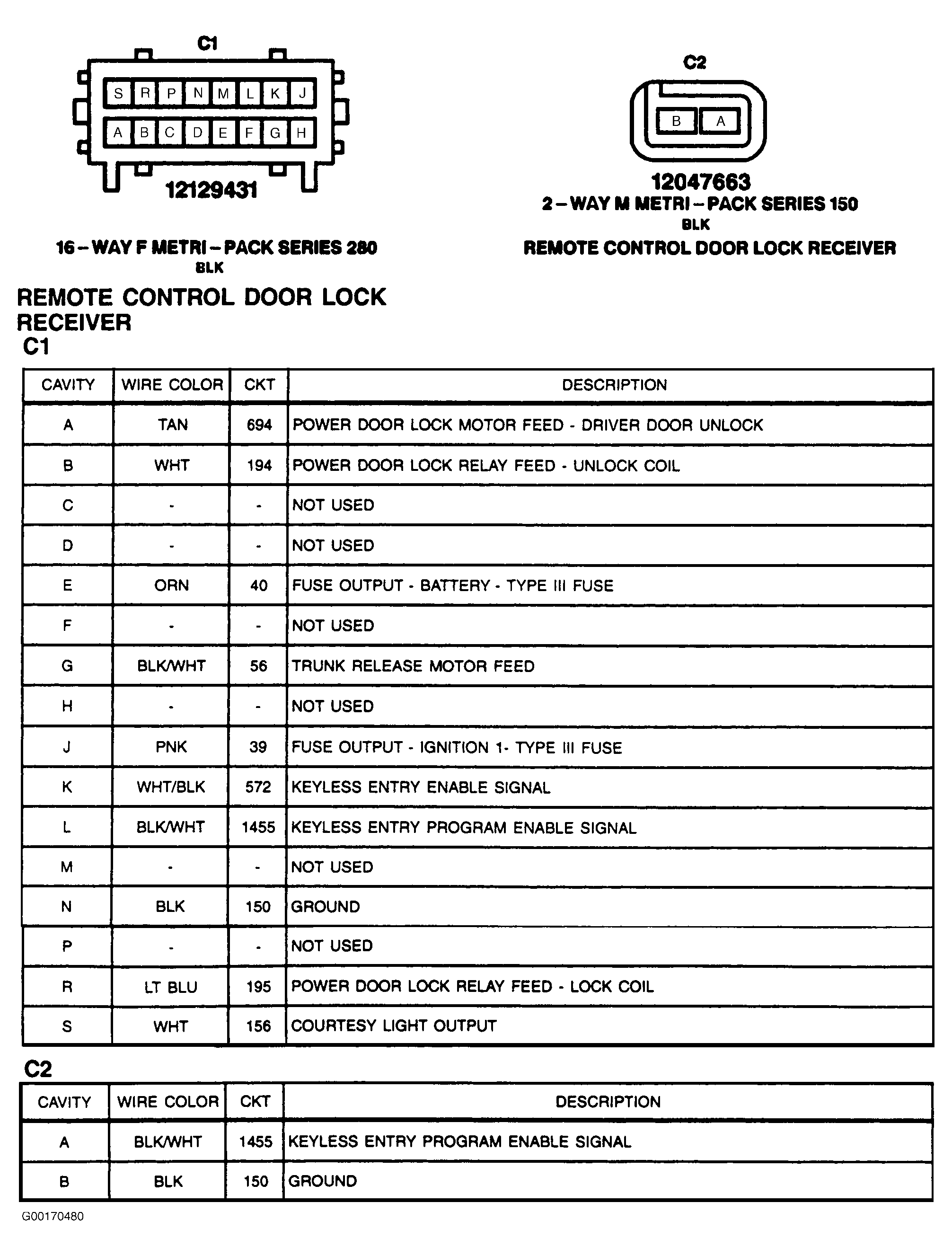

Fig 1: Remote Control Door Lock Receiver Connectors C1 & C2 (Achieva, Grand Am & Skylark) - 16-Pin Connector (Black) & 2-Pin Connector (Black)
G00170680Courtesy of GENERAL MOTORS CORP.
