Pcm Connectors (ACHIEVA)

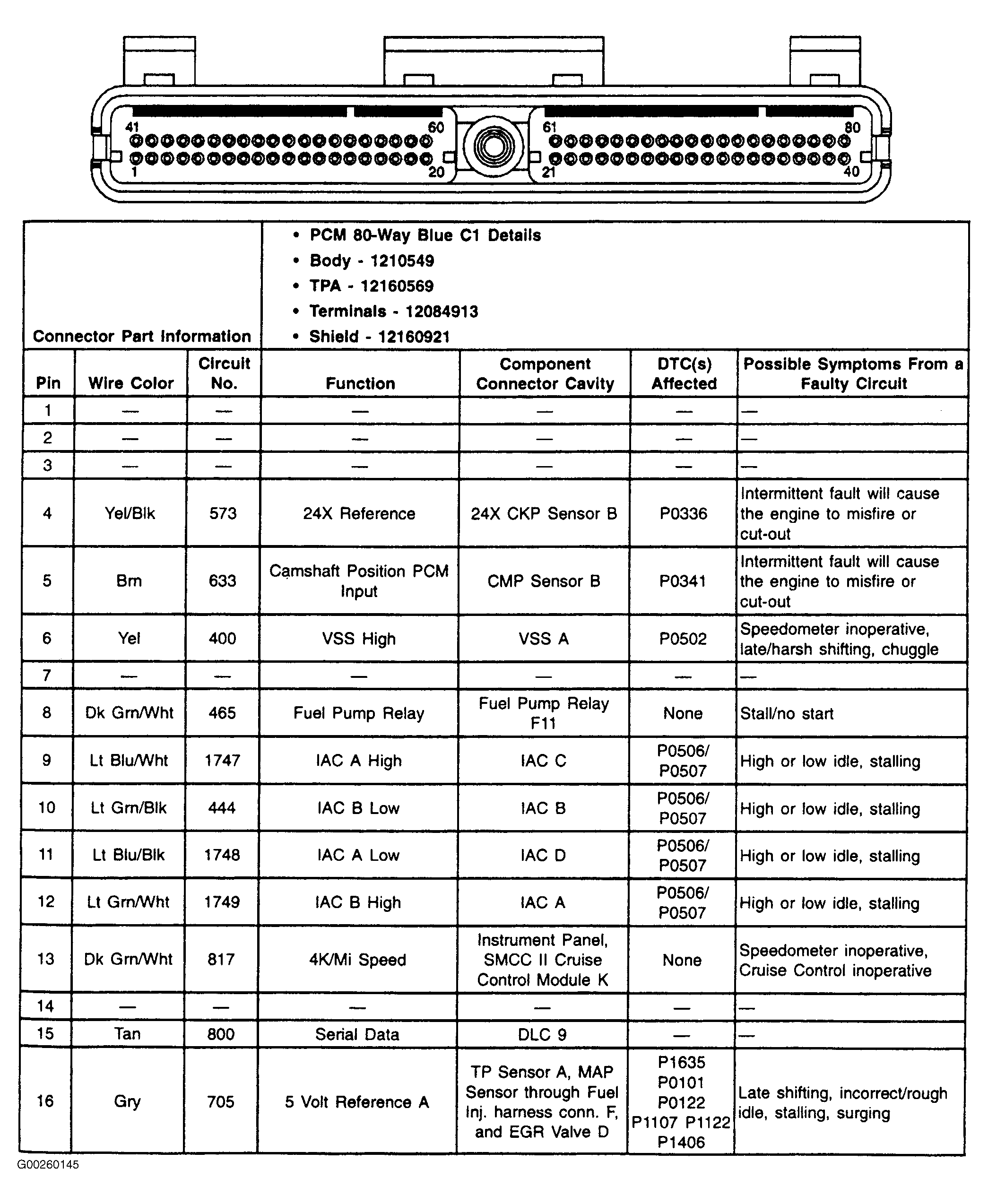

Fig 1: Identifying PCM 80-Pin Blue C1 Connector Terminals (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

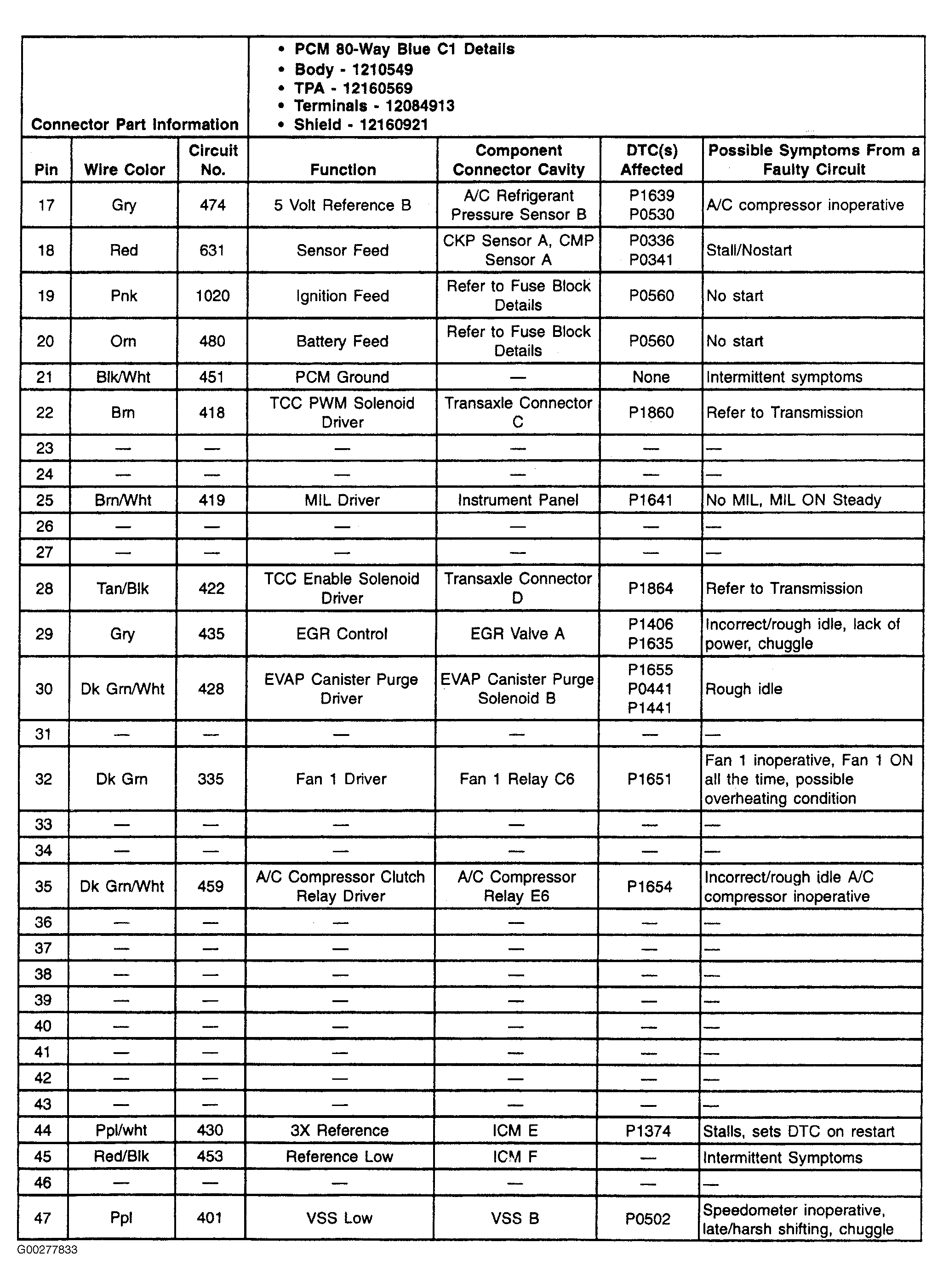

Fig 2: Identifying PCM 80-Pin Blue C1 Connector Terminals (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

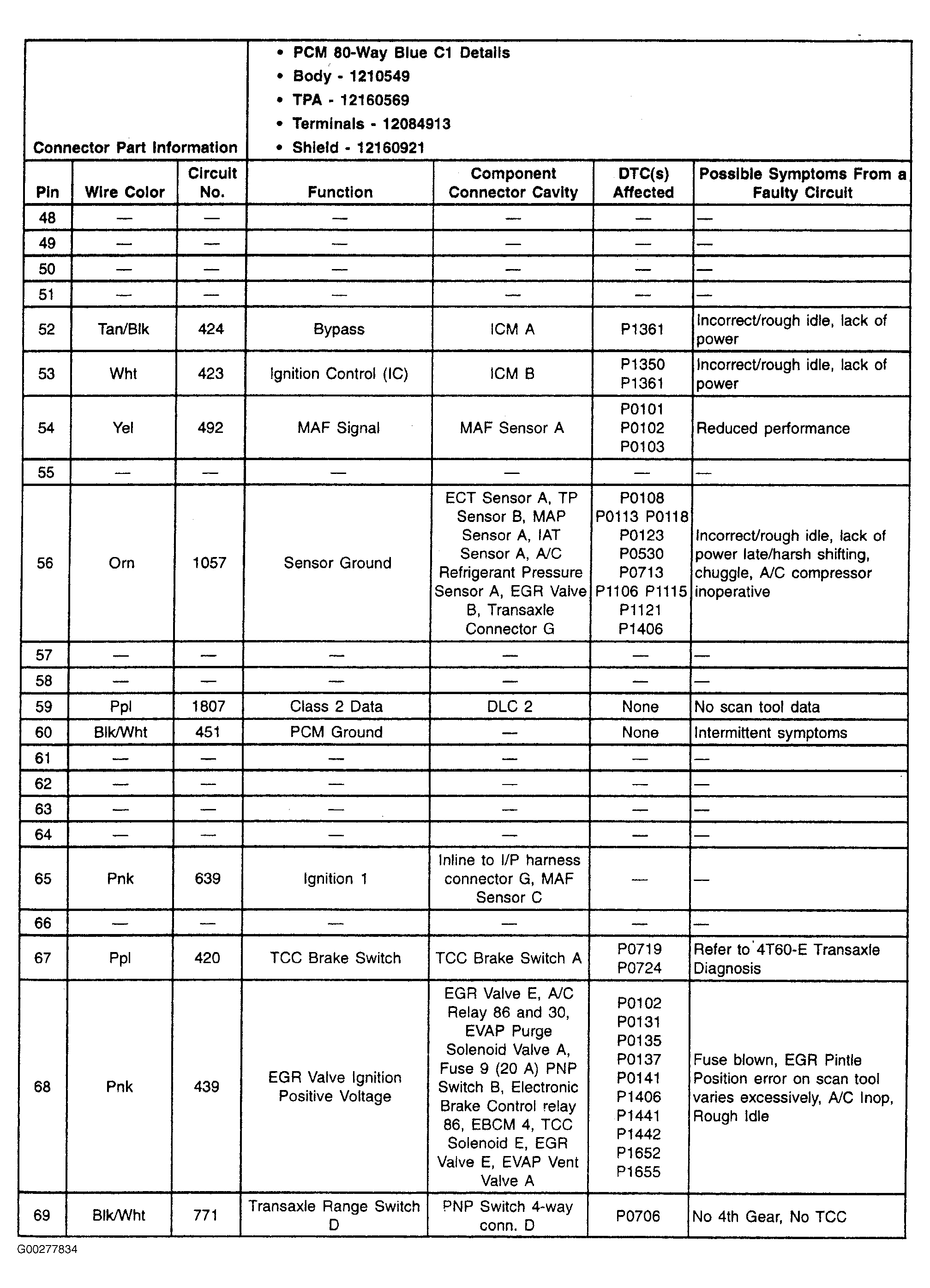

Fig 3: Identifying PCM 80-Pin Blue C1 Connector Terminals (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

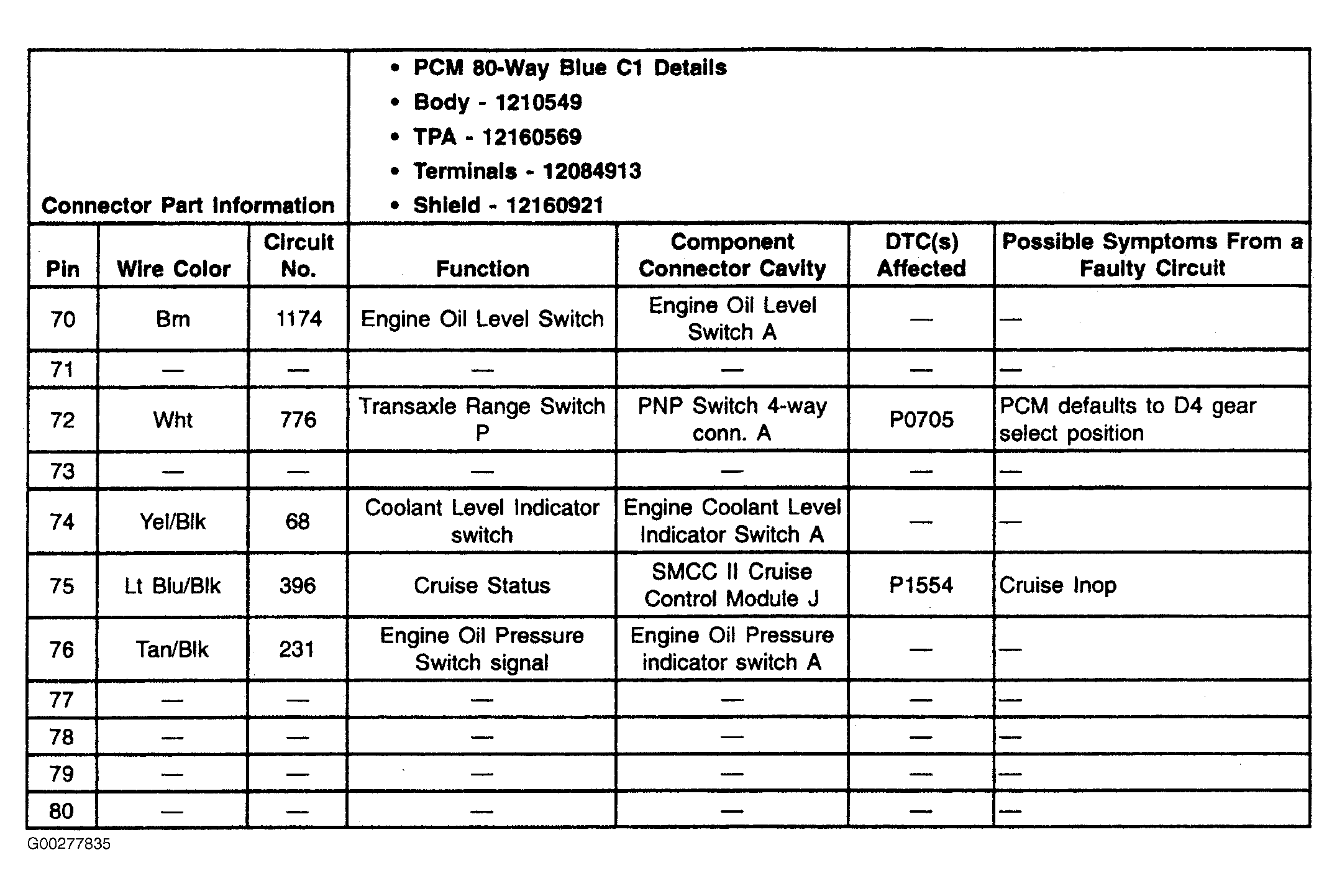

Fig 4: Identifying PCM 80-Pin Blue C1 Connector Terminals (4 Of 4)

Courtesy of GENERAL MOTORS CORP.

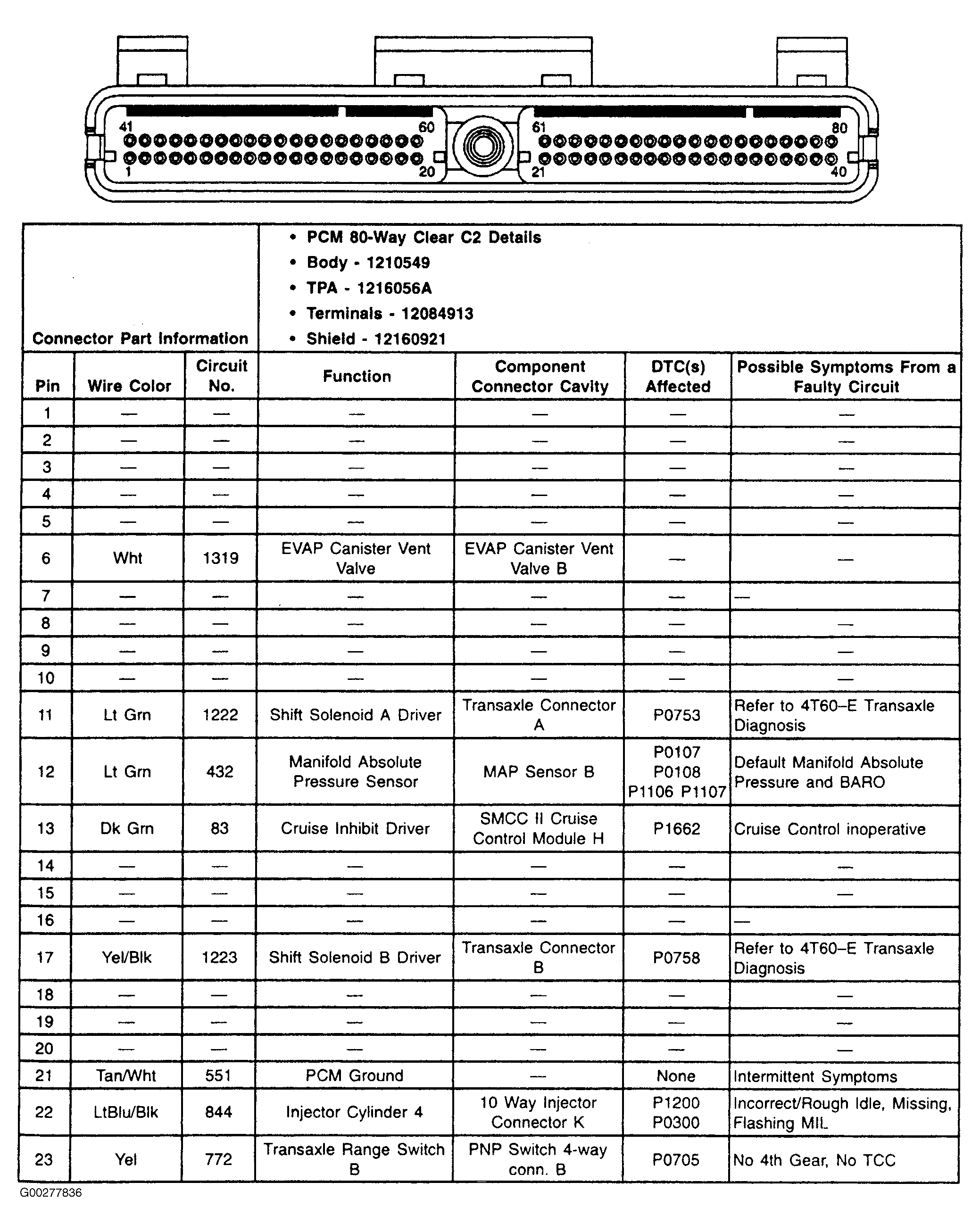

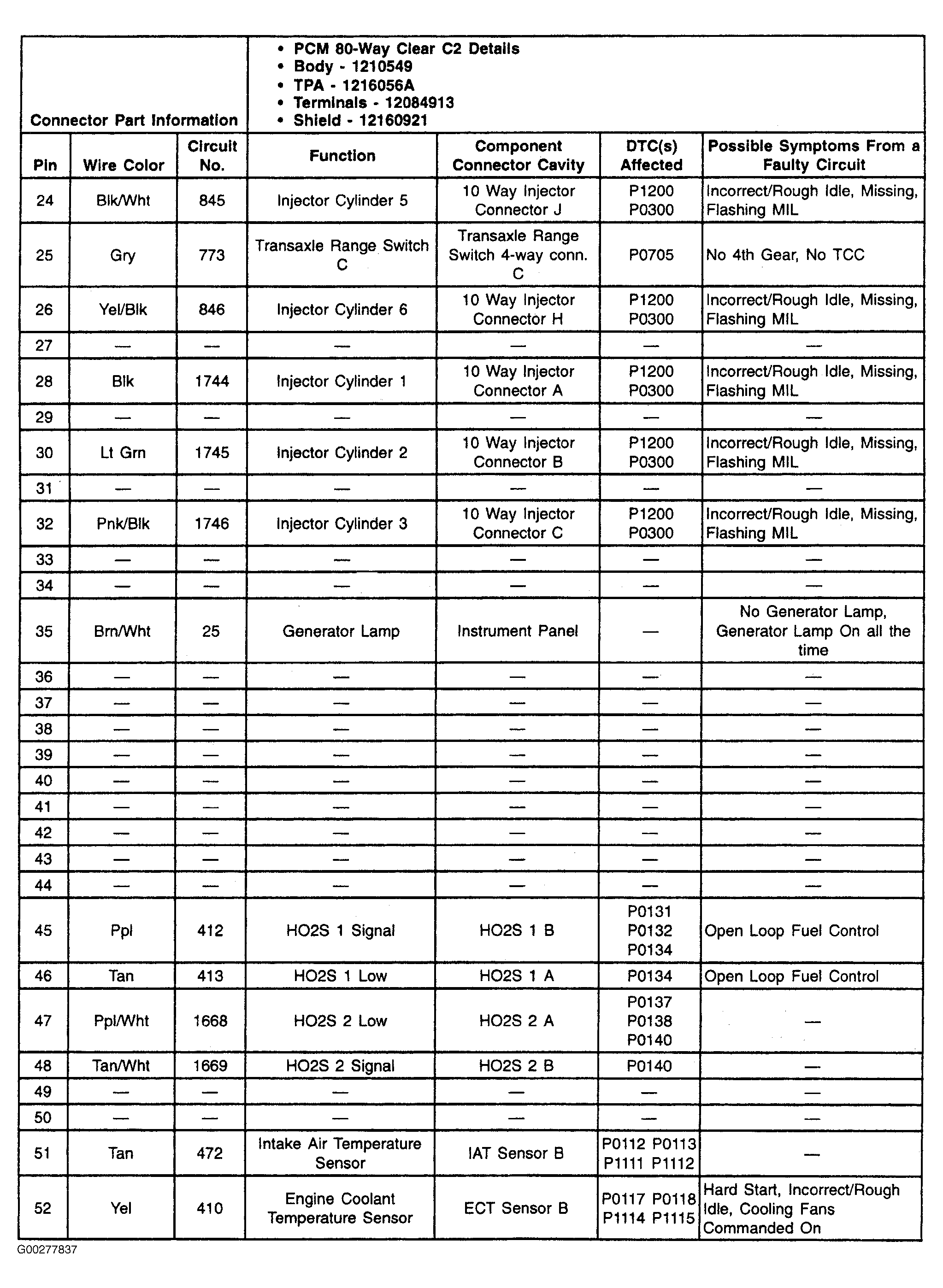

Fig 5: Identifying PCM 80-Pin Clear C2 Connector Terminals (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying PCM 80-Pin Clear C2 Connector Terminals (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

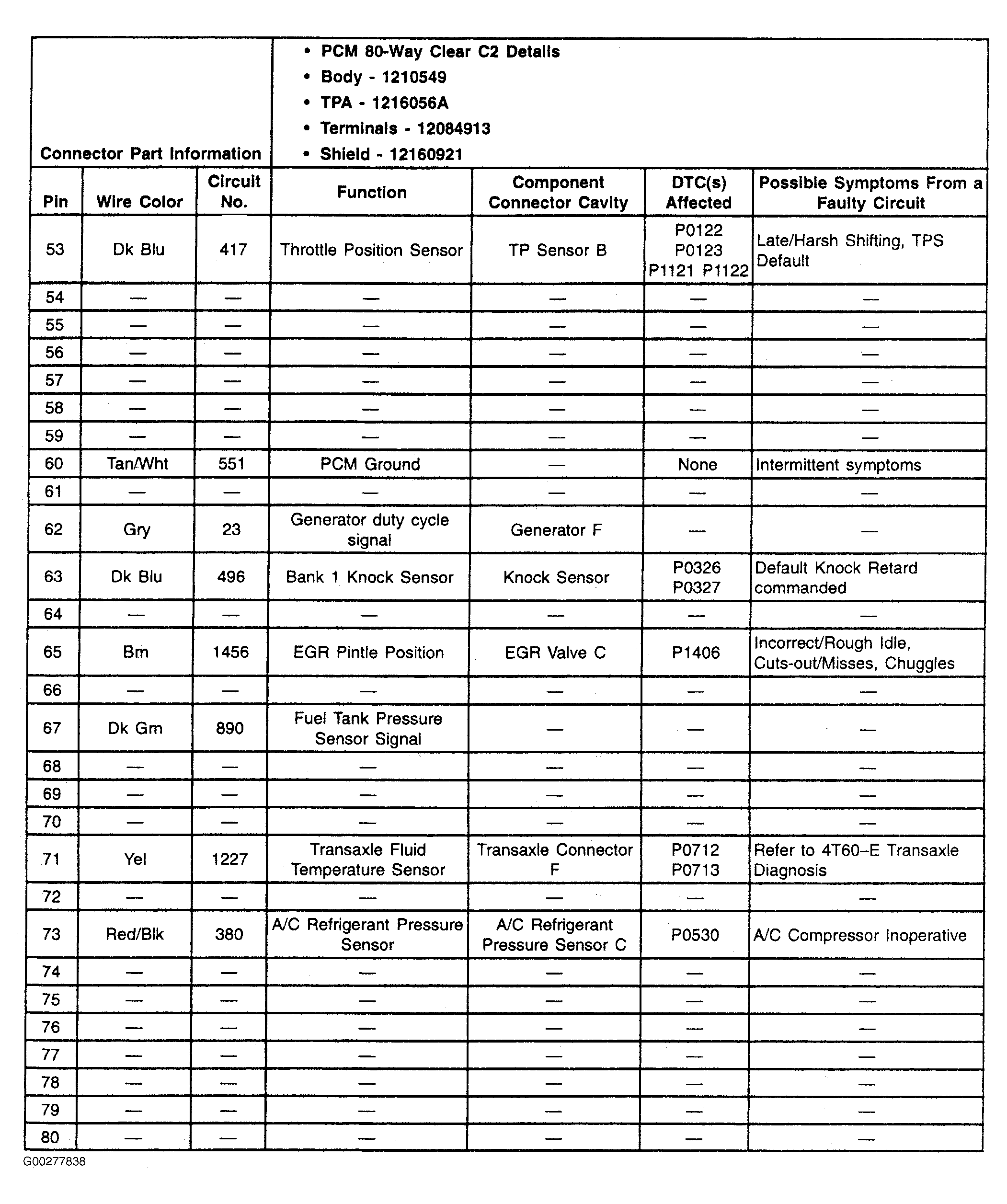

Fig 7: Identifying PCM 80-Pin Clear C2 Connector Terminals (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
