Front Seat Switch (LH - BUICK With Memory Seat)

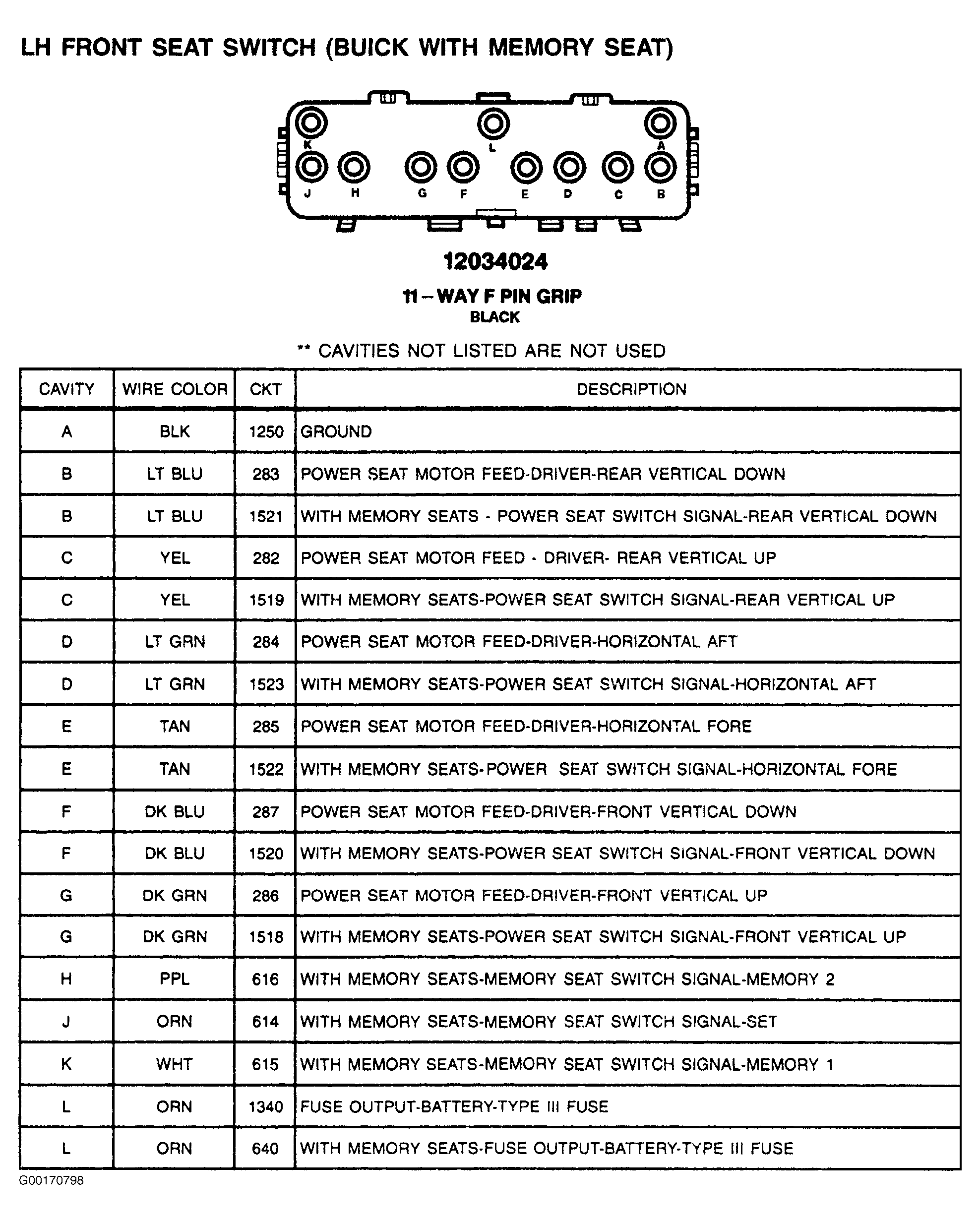

Fig 1: Front Seat Switch (LH - Buick With Memory Seat) - 11-Pin Connector (Black)
G00170798Courtesy of GENERAL MOTORS CORP.
