Heater & A/C Control Assembly C1 & C2 (PONTIAC With Front Auto Controls)

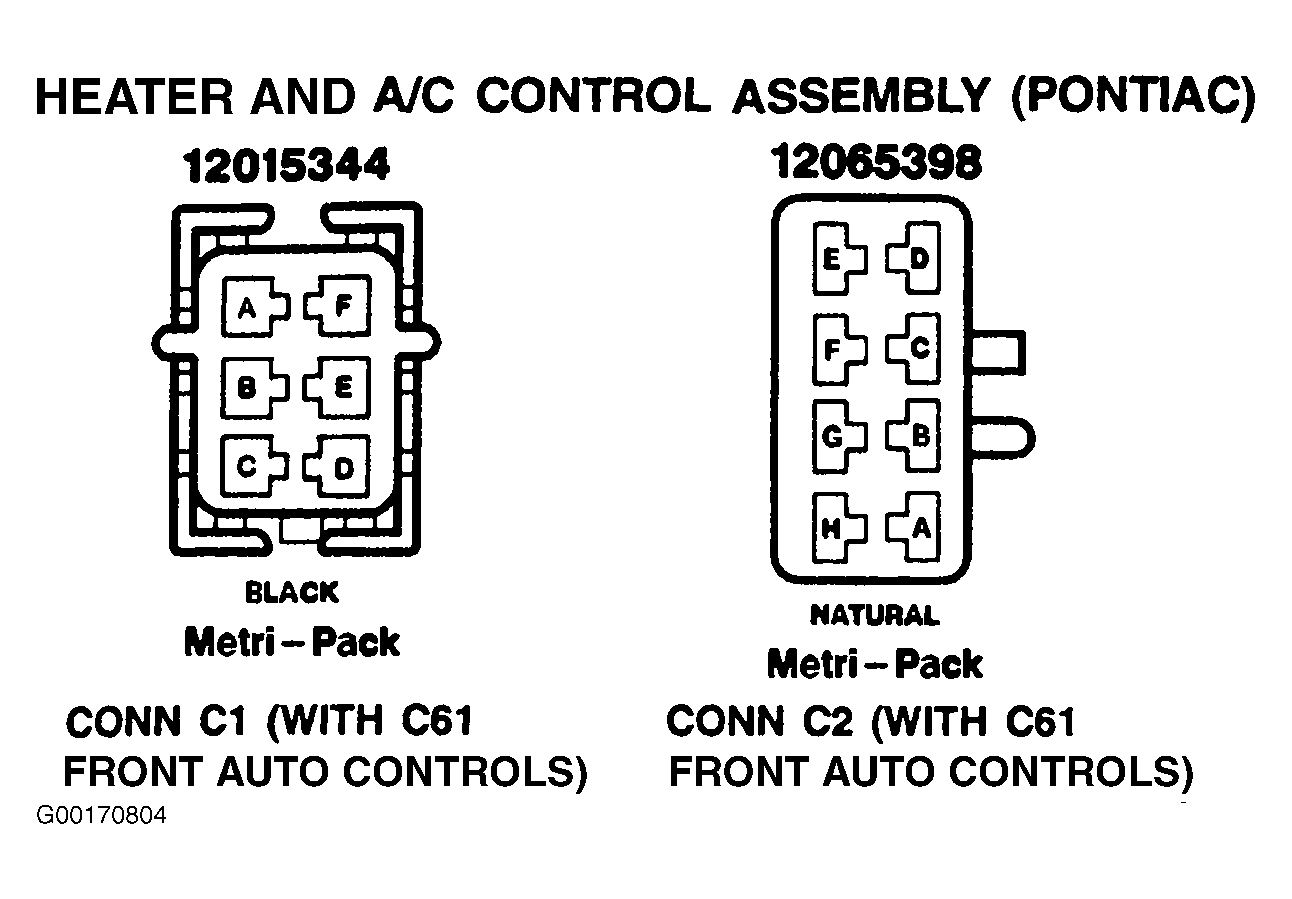

Fig 1: Heater & A/C Control Assembly (Pontiac With Front Auto Controls) - 6-Pin Connector (Black) - & 8-Pin Connector (Natural)

Courtesy of GENERAL MOTORS CORP.
