Radio C2 (PONTIAC)

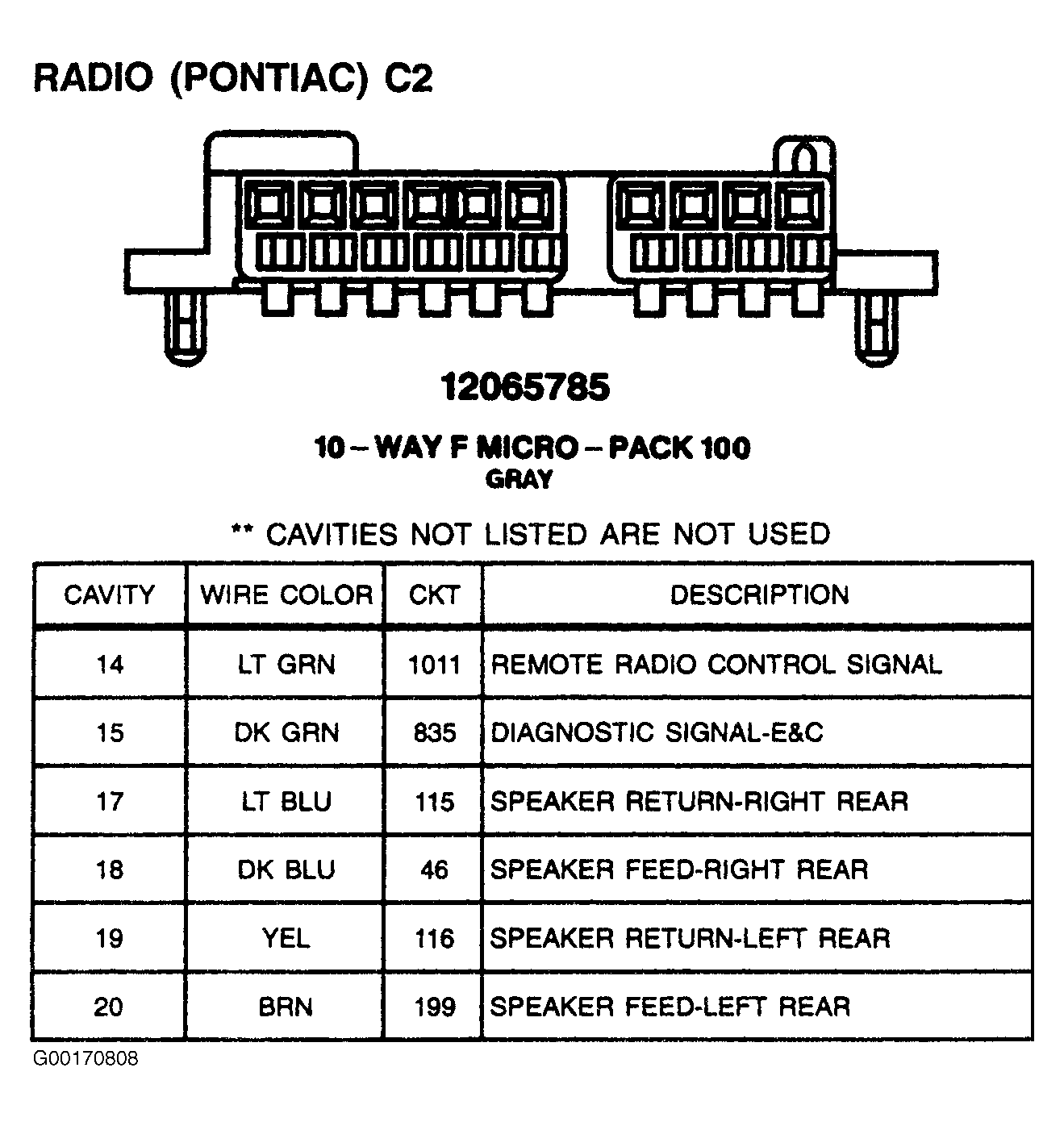

Fig 1: Radio C2 (Pontiac) - 10-Pin Connector (Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
