SMU - Revised Engine Control Component Locations (73-65-36)

Publication date: 1998-01-01
Reference number: 73-65-36

SMU - REVISED ENGINE CONTROL COMPONENT LOCATIONS

SMU - REVISED ENGINE CONTROL COMPONENT LOCATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 73-65-36

SECTIONS 6 & 7 - REVISED COMPONENT LOCATION TABLES FOR ENGINE CONTROLS & AUTOMATIC TRANSMISSION

Model(s): 1997-98 Buick LeSabre

1997-98 Oldsmobile Eighty Eight, LSS, Regency

1997-98 Pontiac Bonneville Section: 6E- Engine Fuel & Emission Bulletin No.: 73-65-36 Date: January, 1998

NOTE: This is a Service Manual Update.

SERVICE INFORMATION

This bulletin is being issued to revise the component location tables in Sections 6 and 7 of the Service Manual. See below and also Figs. Fig 1 thru Fig 13 .

COMPONENT LOCATION INFORMATION

Year/Model  Page(s) Affected  Change
97 H-Car 6E45 - 6E46 The new Engine Controls
98 H-Car 7-20 The new Automatic Transmission Components table replaces the existing table.

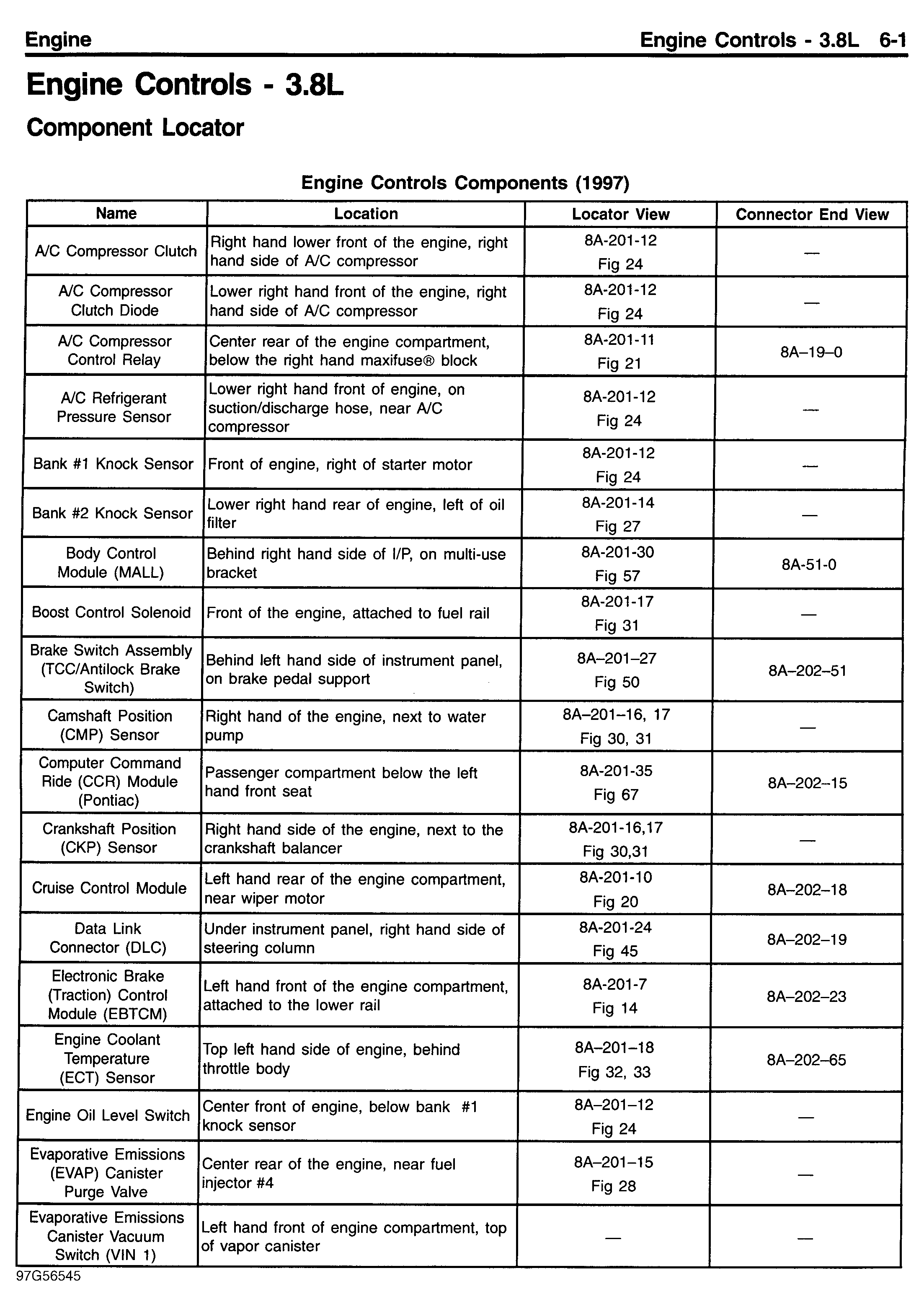

Fig 1: 1997 Engine Controls 3.8L Component Locator - Page 6.1 Rev.
G97G56545

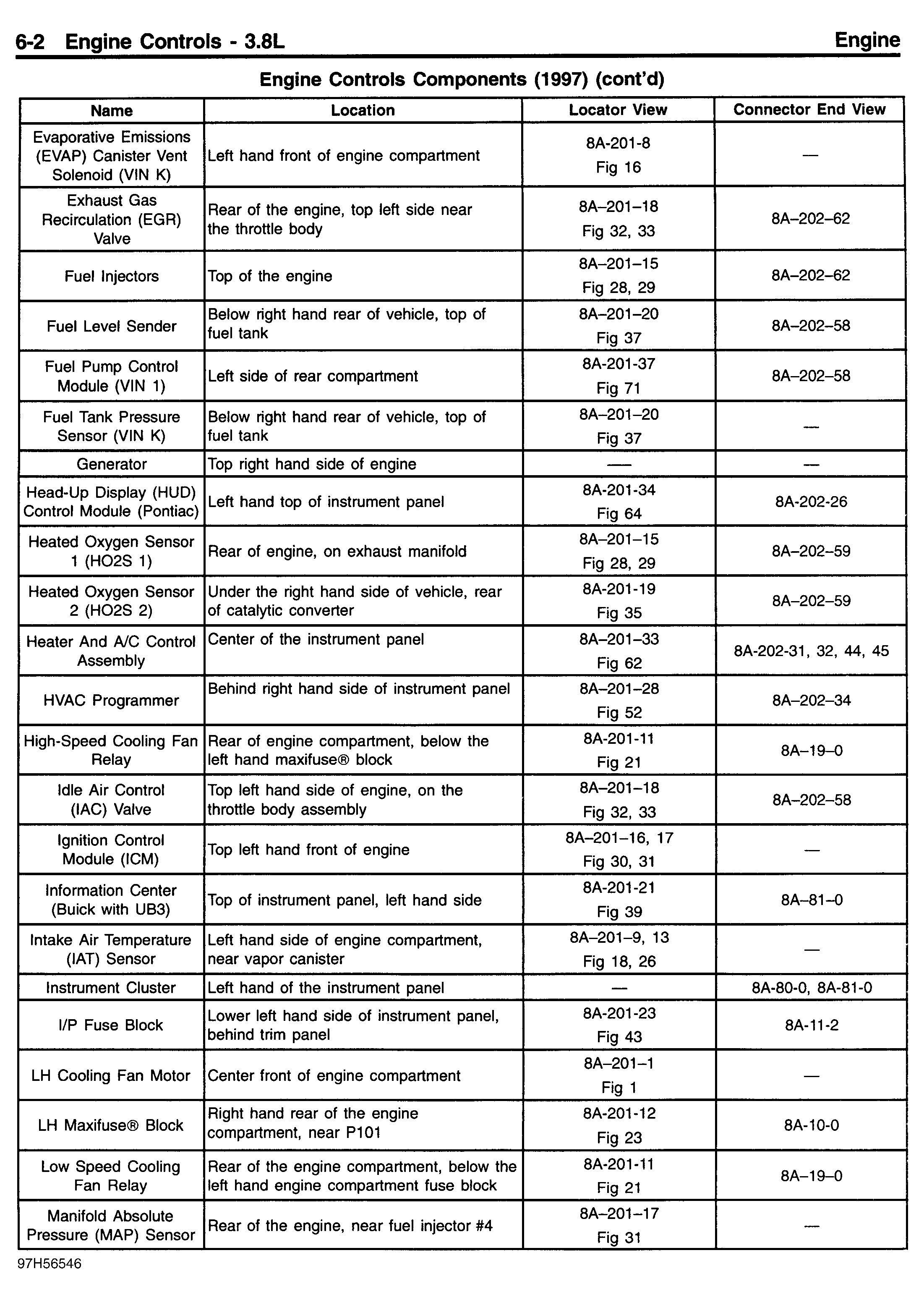

Fig 2: 1997 Engine Controls 3.8L Component Locator - Page 6.2 Rev.
G97H56546

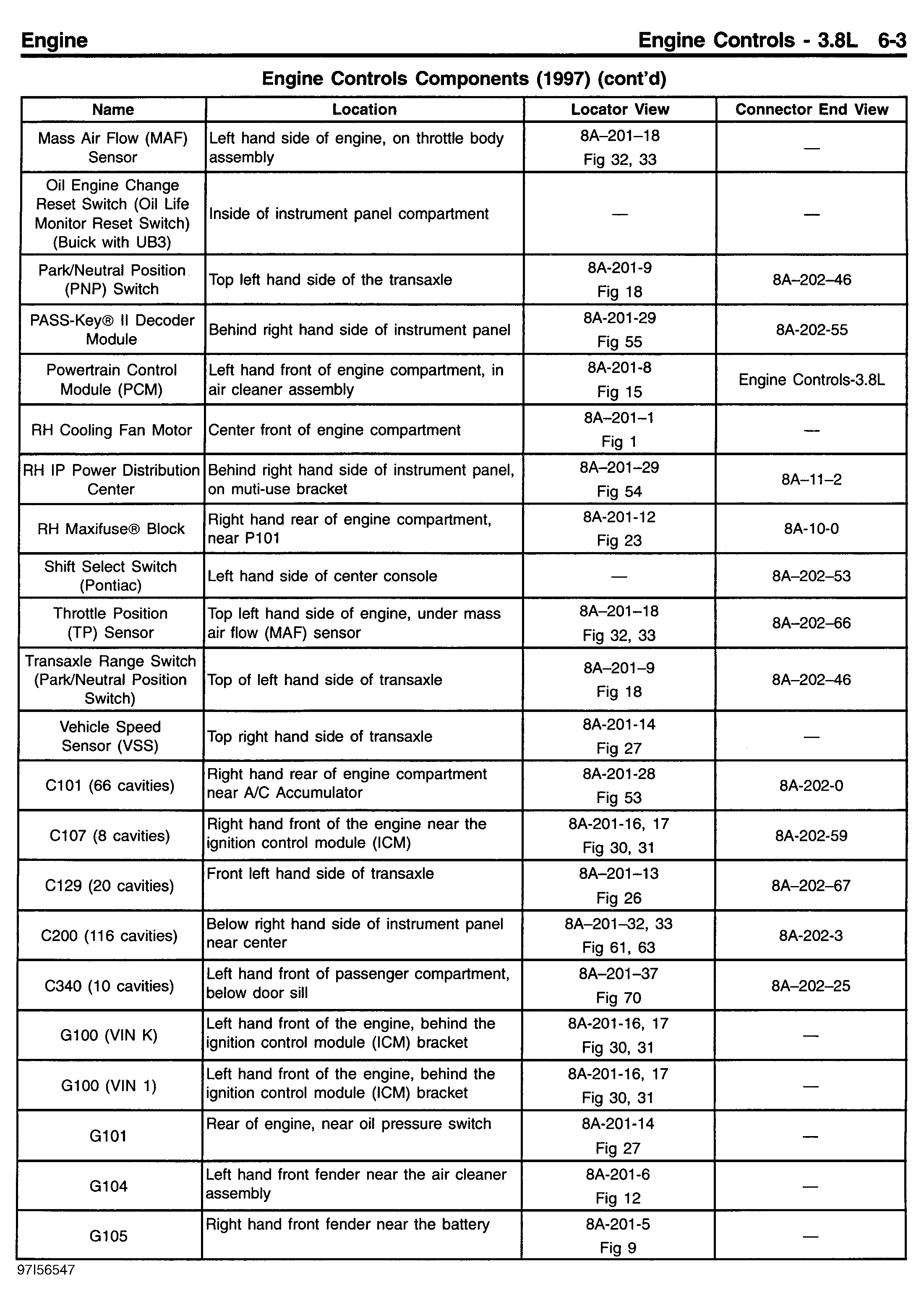

Fig 3: 1997 Engine Controls 3.8L Component Locator - Page 6.3 Rev.
G97I56547

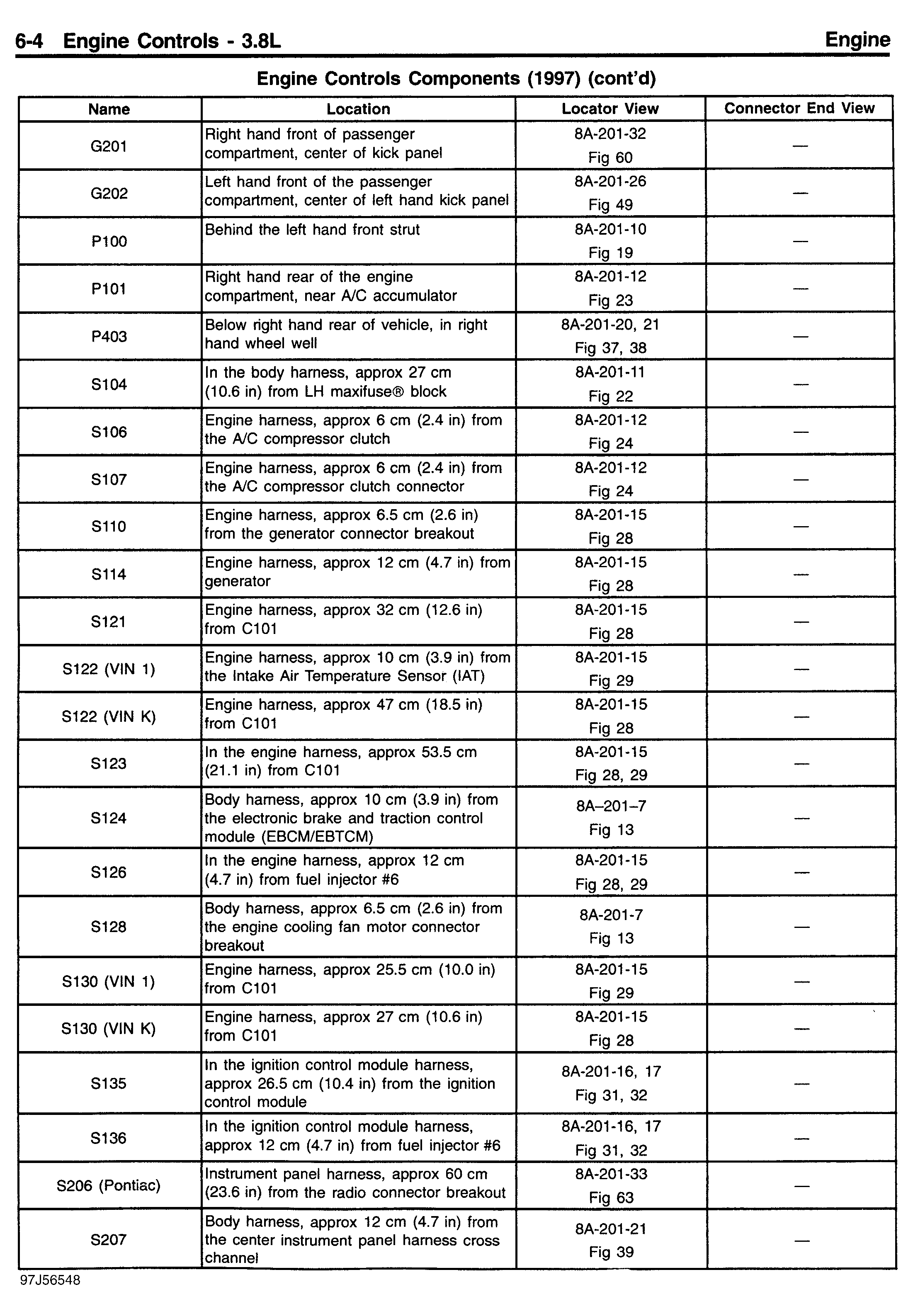

Fig 4: 1997 Engine Controls 3.8L Component Locator - Page 6.4 Rev.
G97J56548

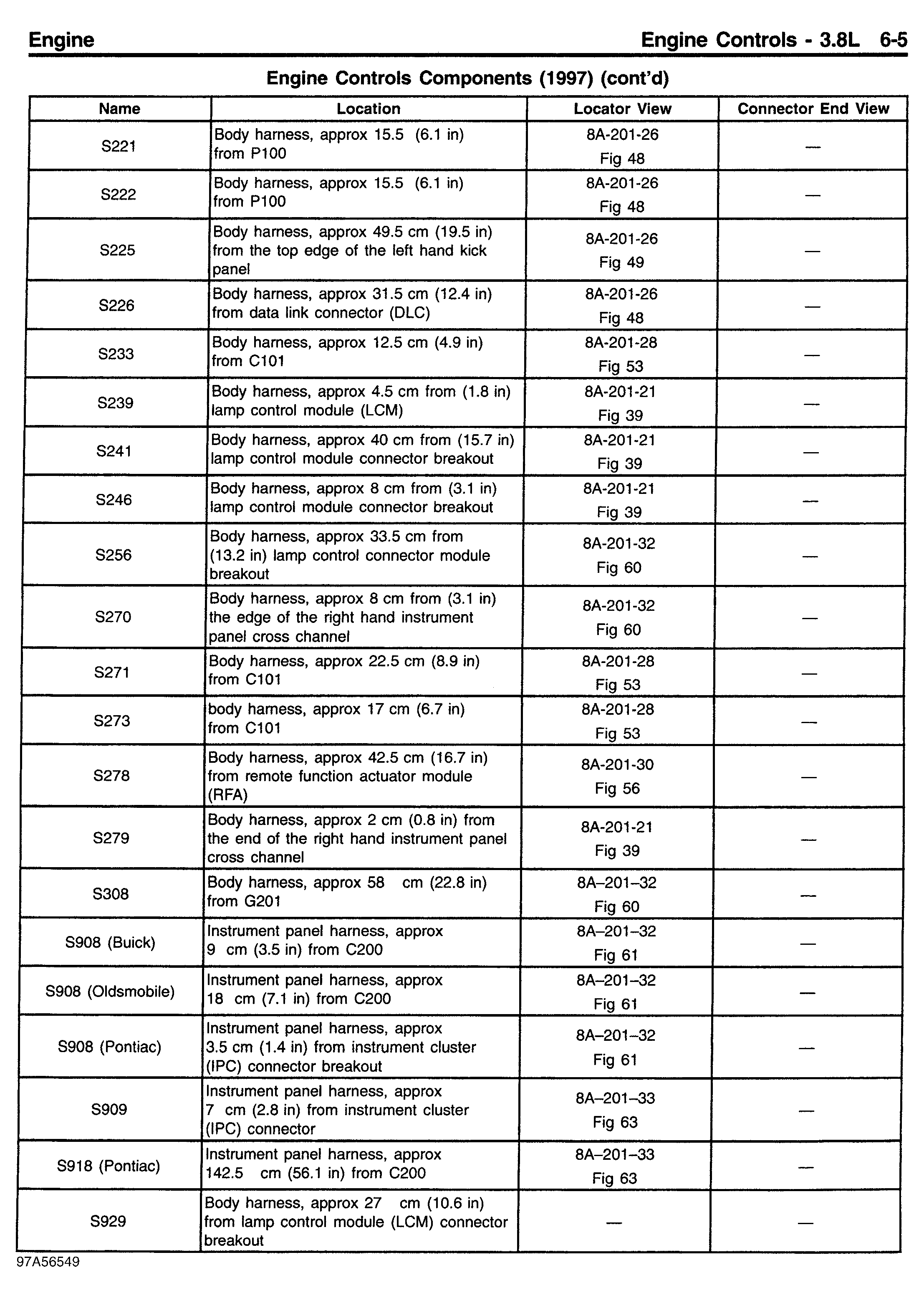

Fig 5: 1997 Engine Controls 3.8L Component Locator - Page 6.5 Rev.
G97A56549

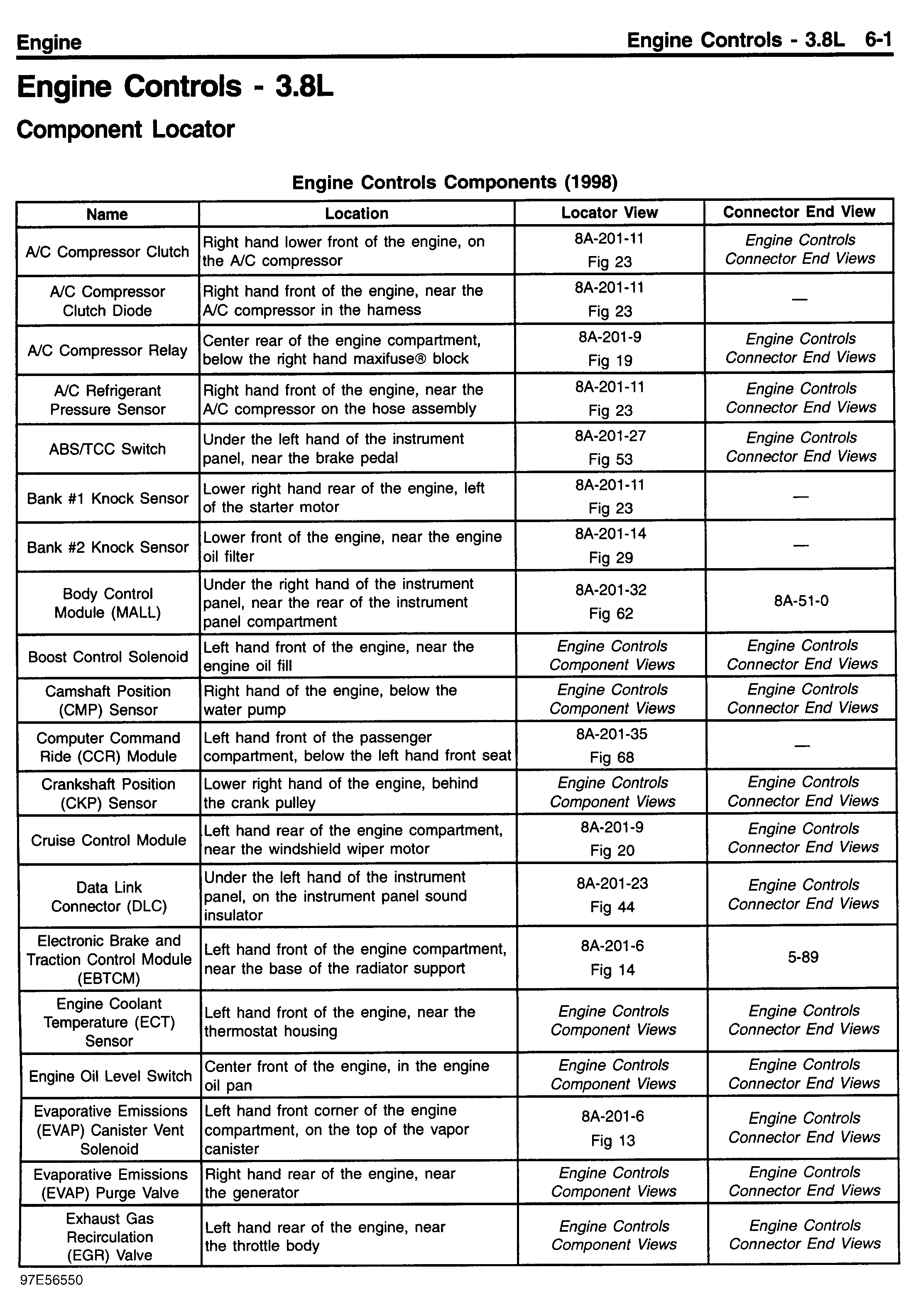

Fig 6: 1998 Engine Controls 3.8L Component Locator - Page 6.1 Rev.
G97E56550

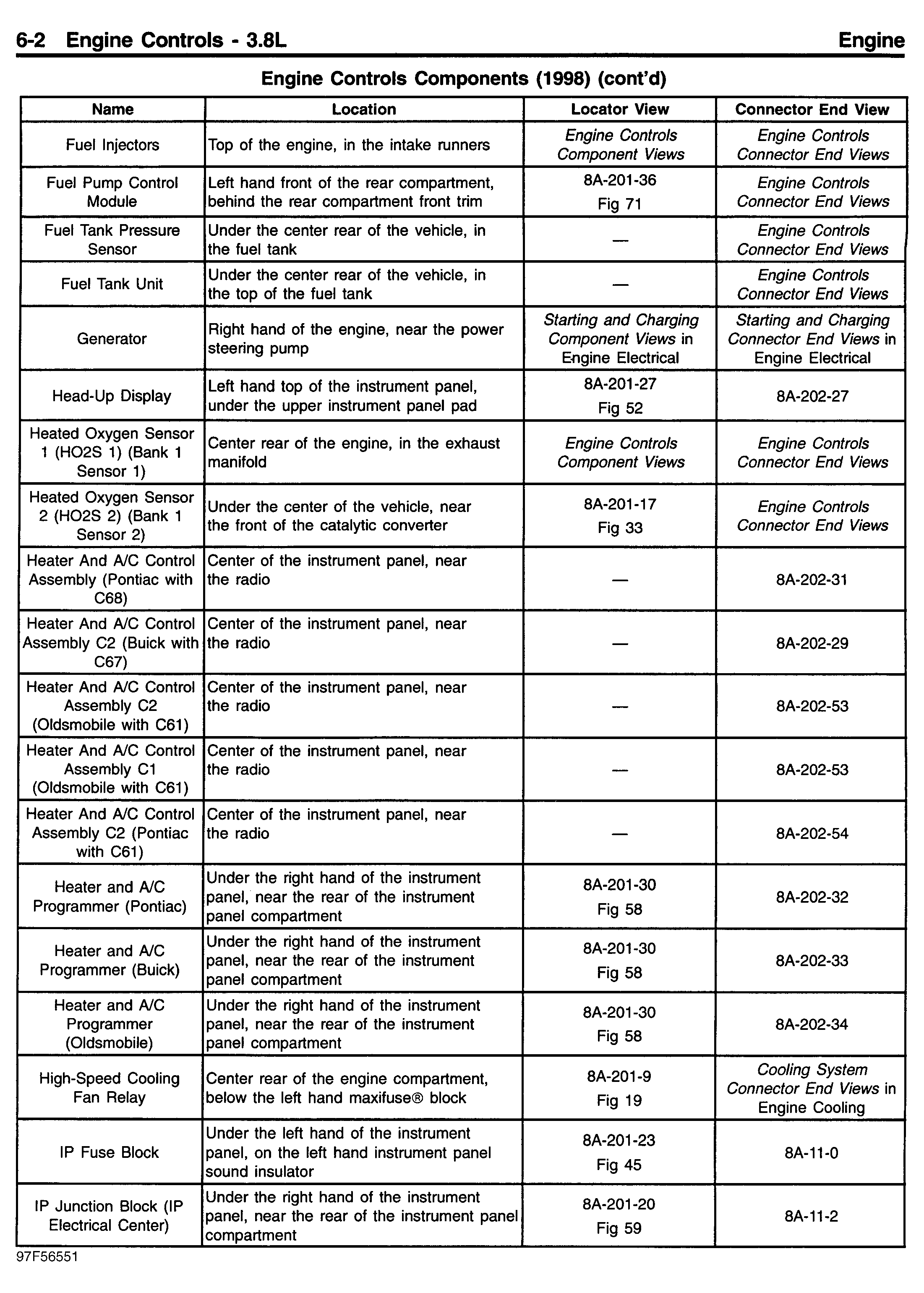

Fig 7: 1998 Engine Controls 3.8L Component Locator - Page 6.2 Rev.
G97F56551

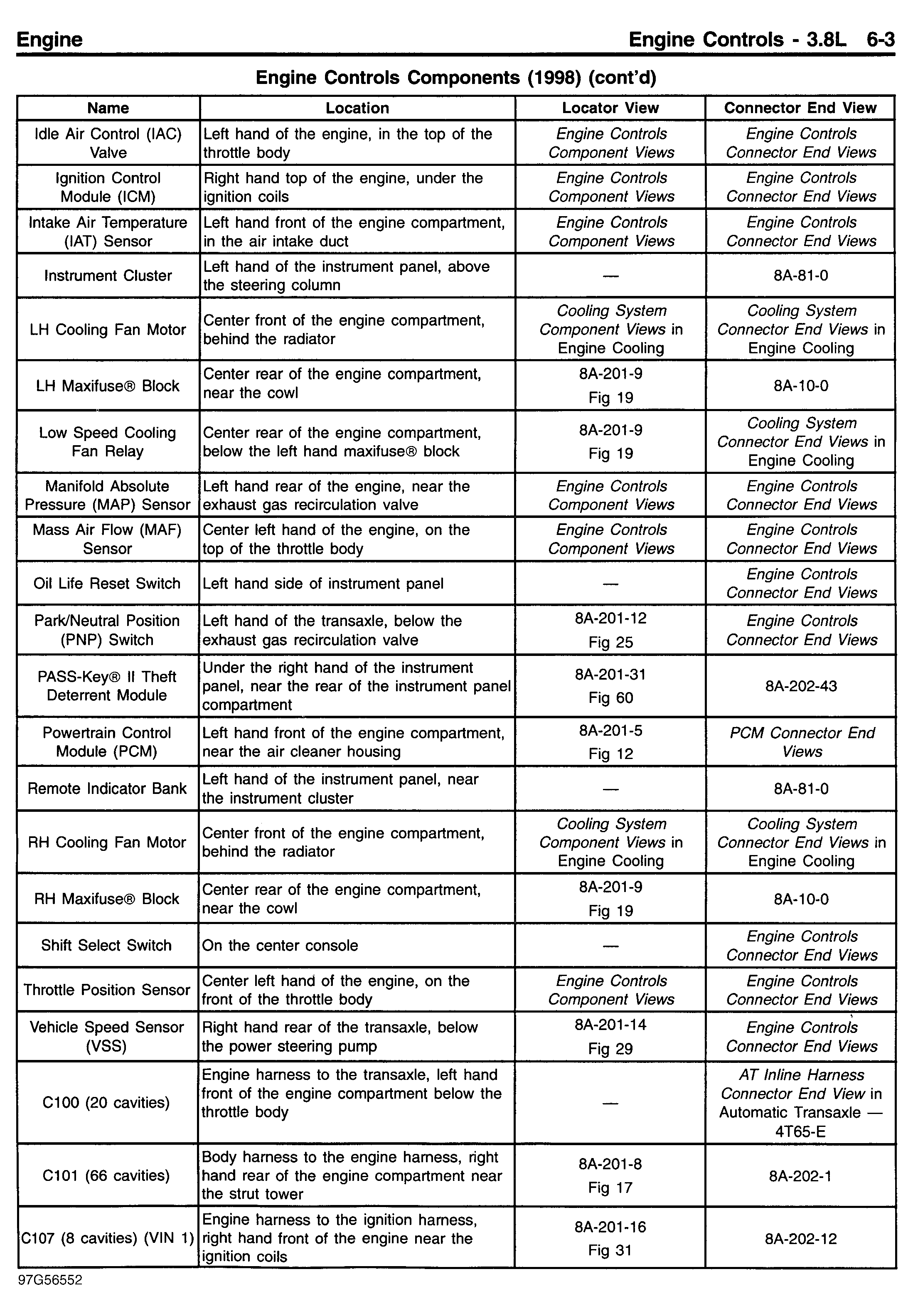

Fig 8: 1998 Engine Controls 3.8L Component Locator - Page 6.3 Rev.
G97G56552

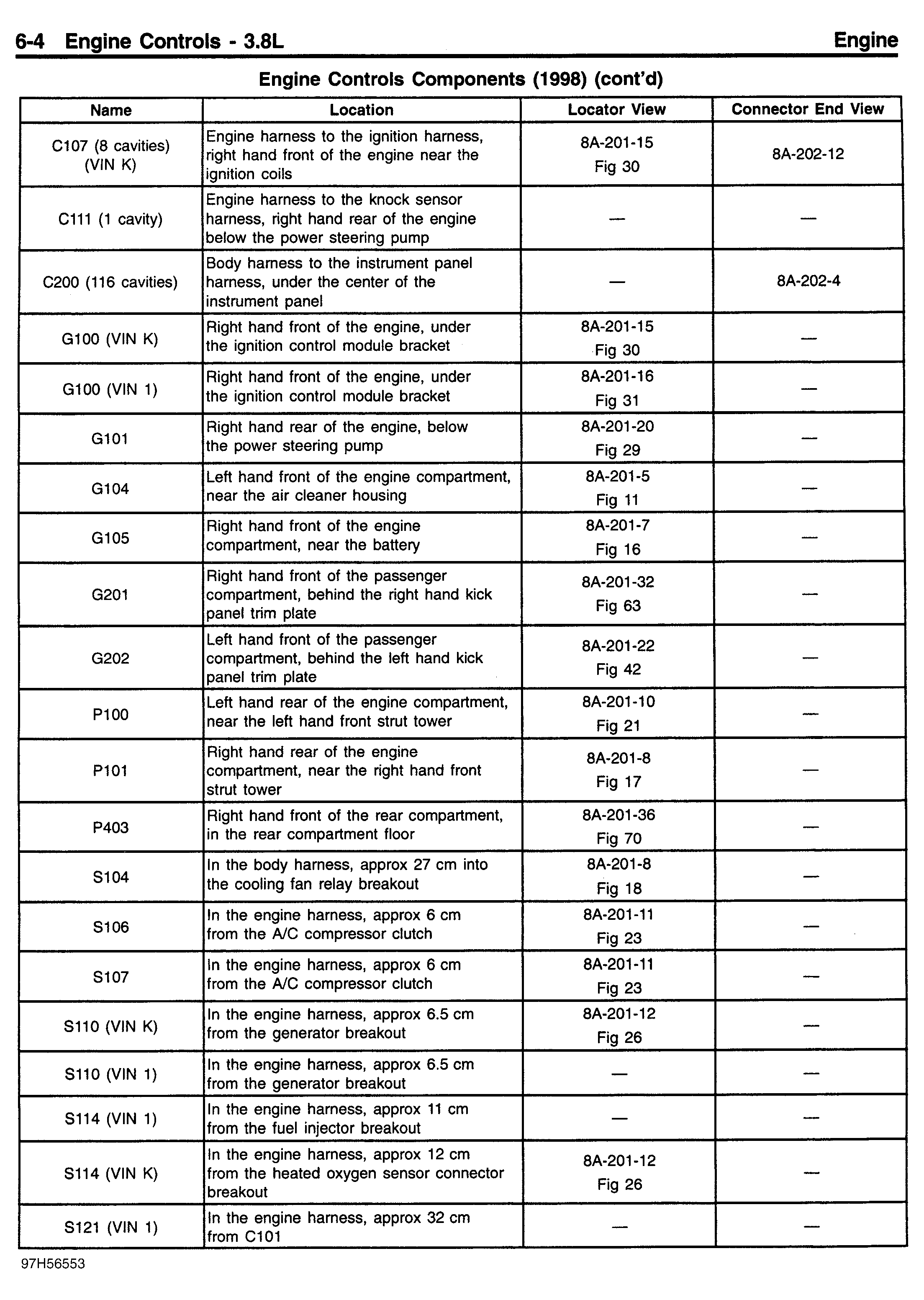

Fig 9: 1998 Engine Controls 3.8L Component Locator - Page 6.4 Rev.
G97H56553

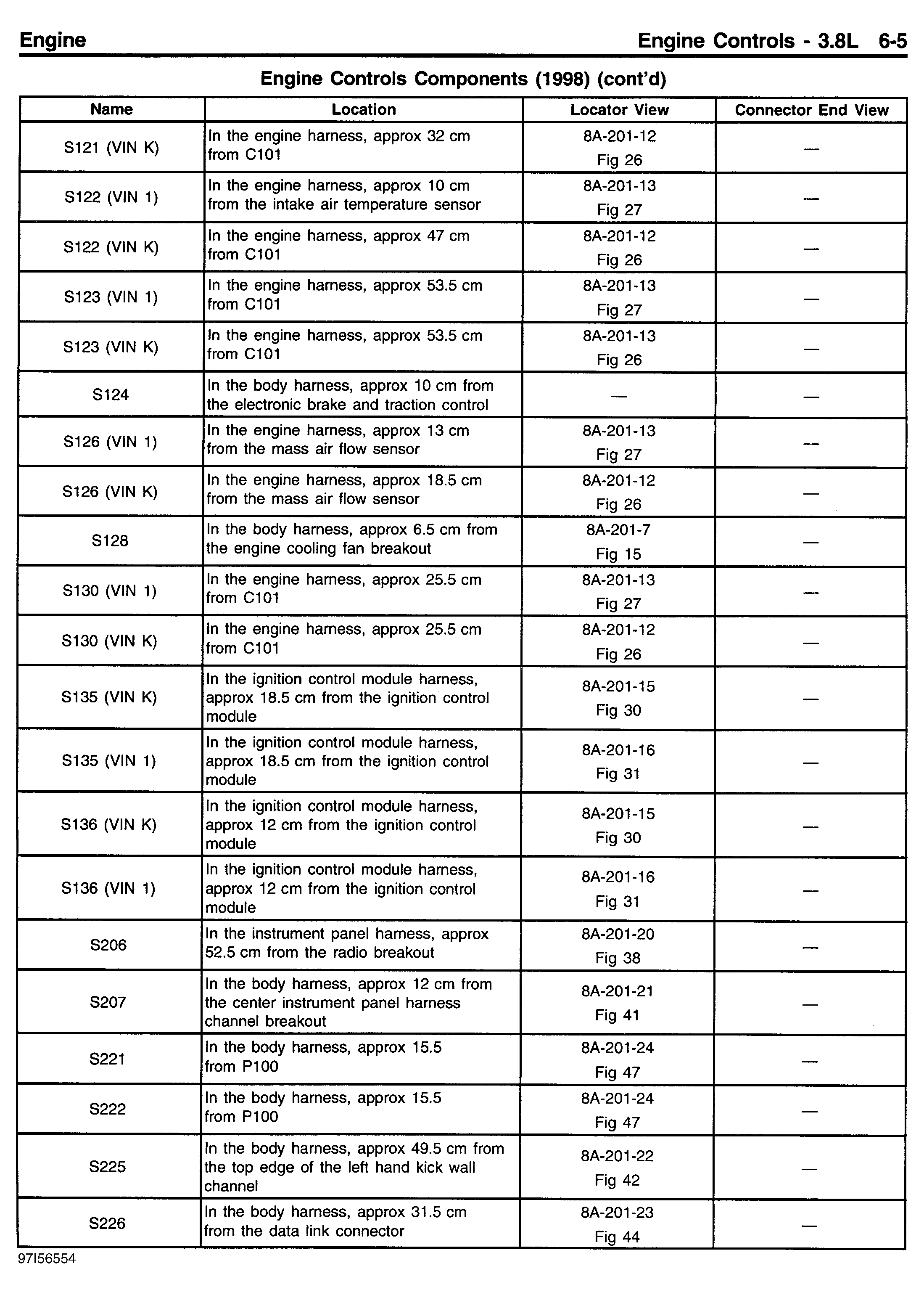

Fig 10: 1998 Engine Controls 3.8L Component Locator - Page 6.5 Rev.
G97I56554

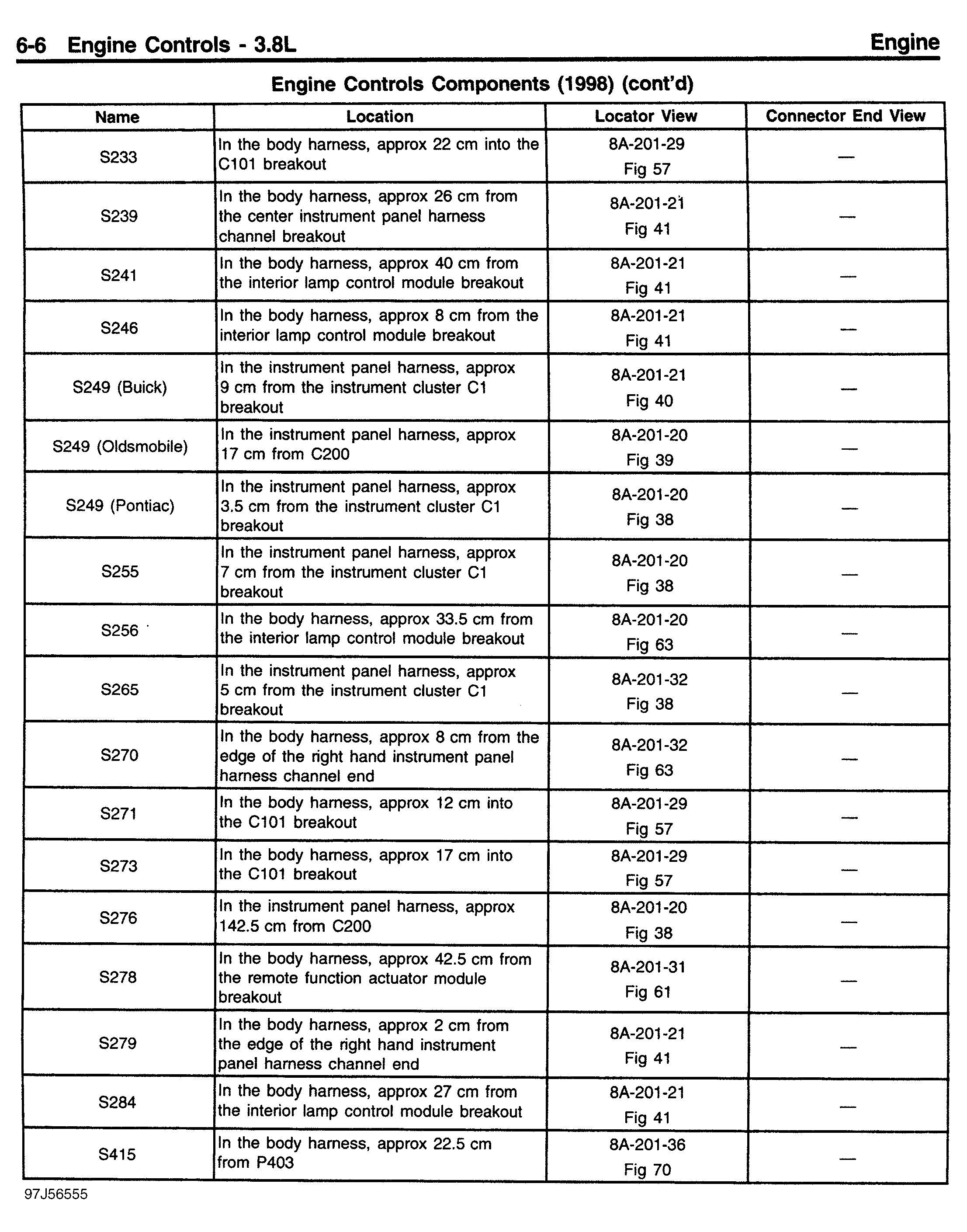

Fig 11: 1998 Engine Controls 3.8L Component Locator - Page 6.6 Rev.
G97J56555

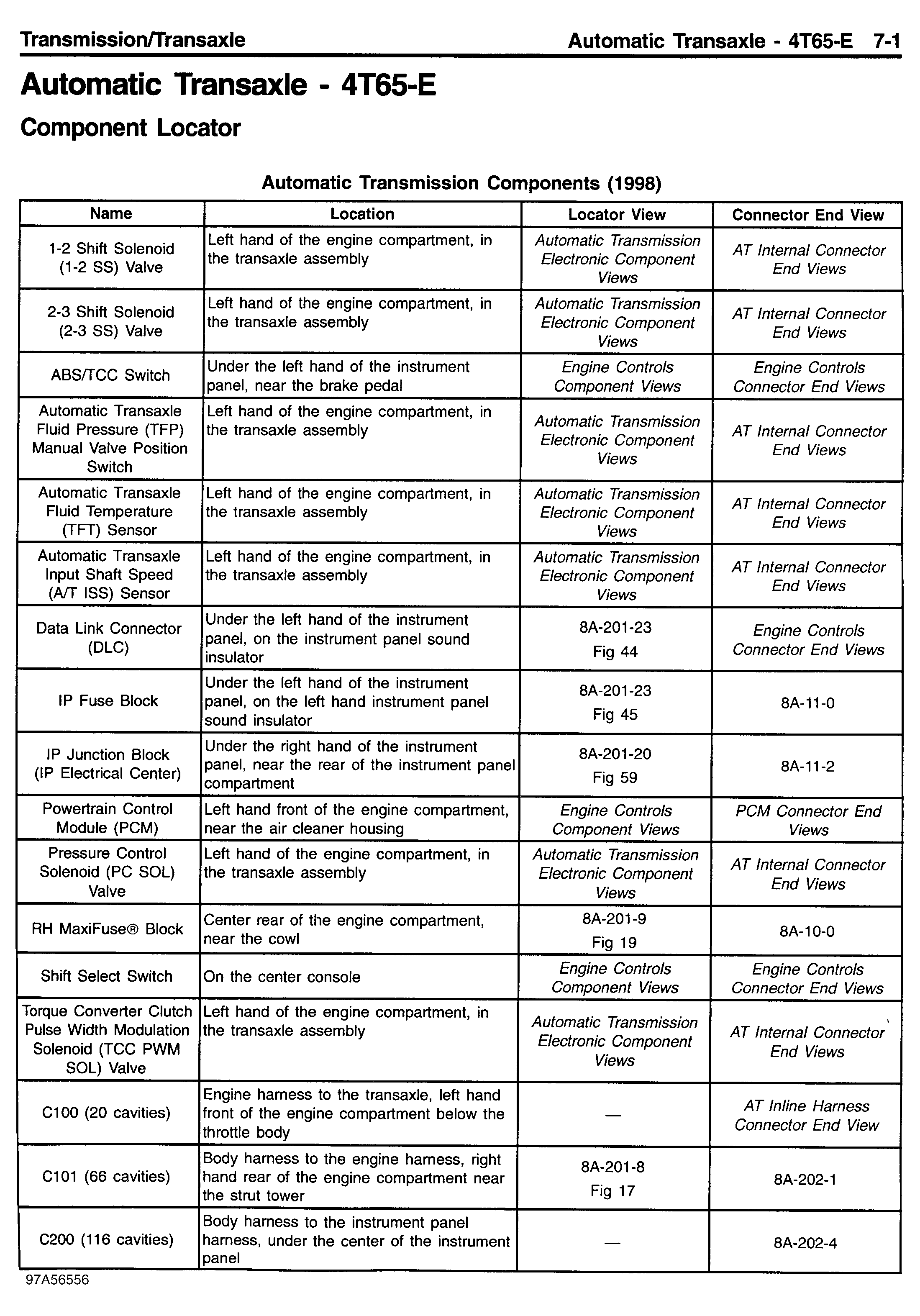

Fig 12: 1998 Automatic Transaxle 4T65-E - Page 7-1 Revision
G97A56556

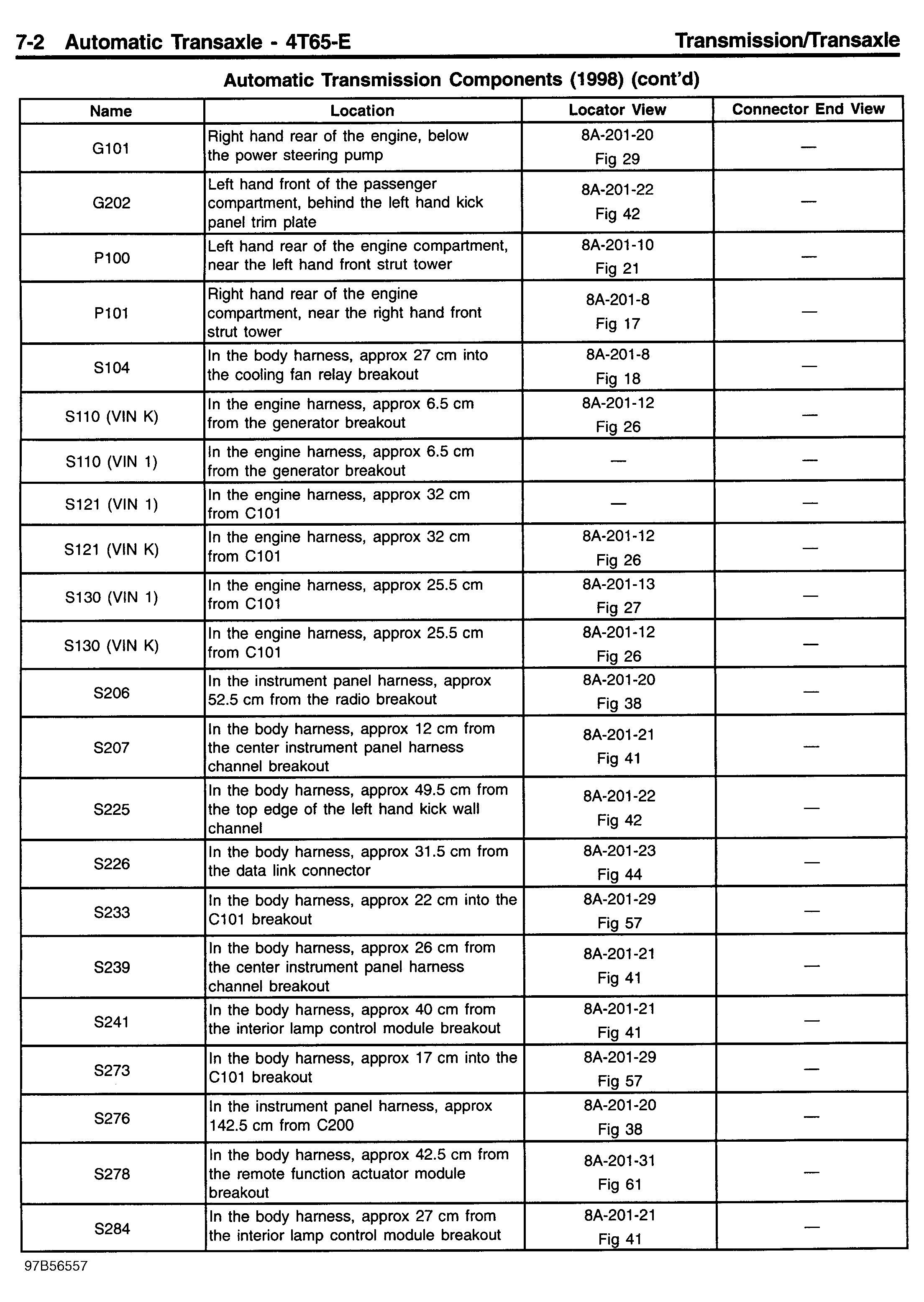

Fig 13: 1998 Automatic Transaxle 4T65-E - Page 7-2 Revision
G97B56557
