Inoperative Power Mirror

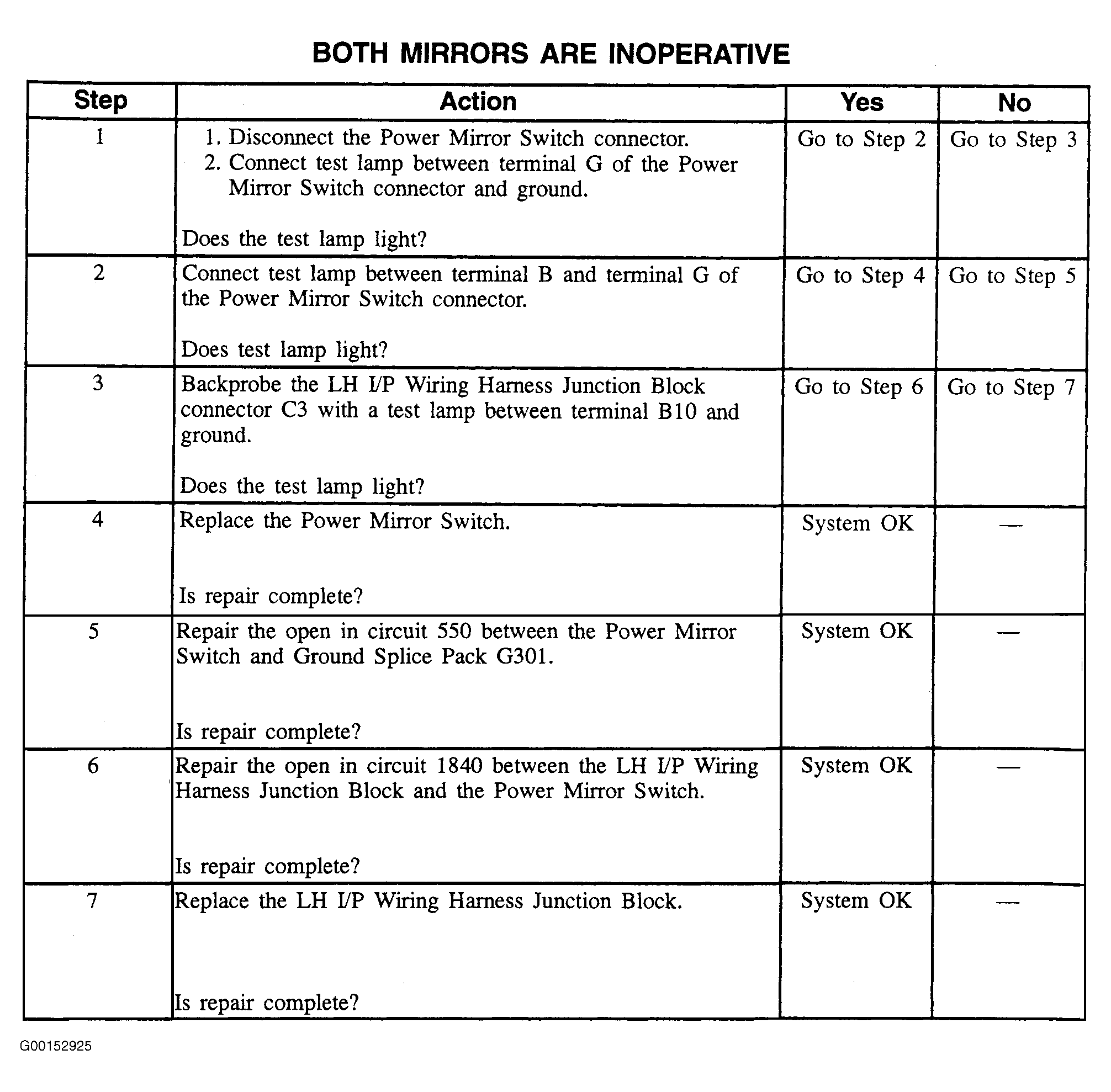

Fig 1: Inoperative Mirrors Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
