LH Mirror Test

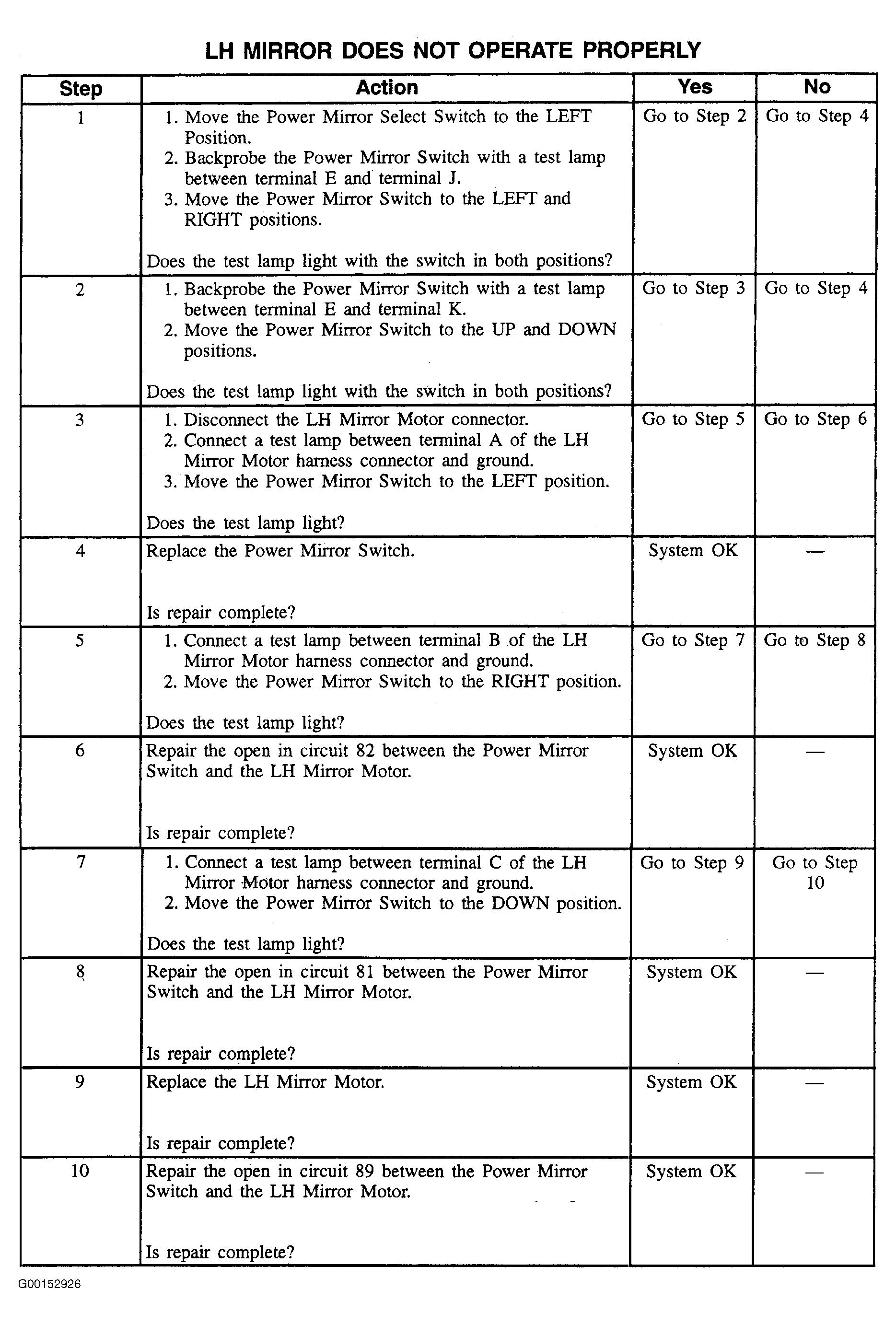

Fig 1: LH Mirror Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
