RH Mirror Test

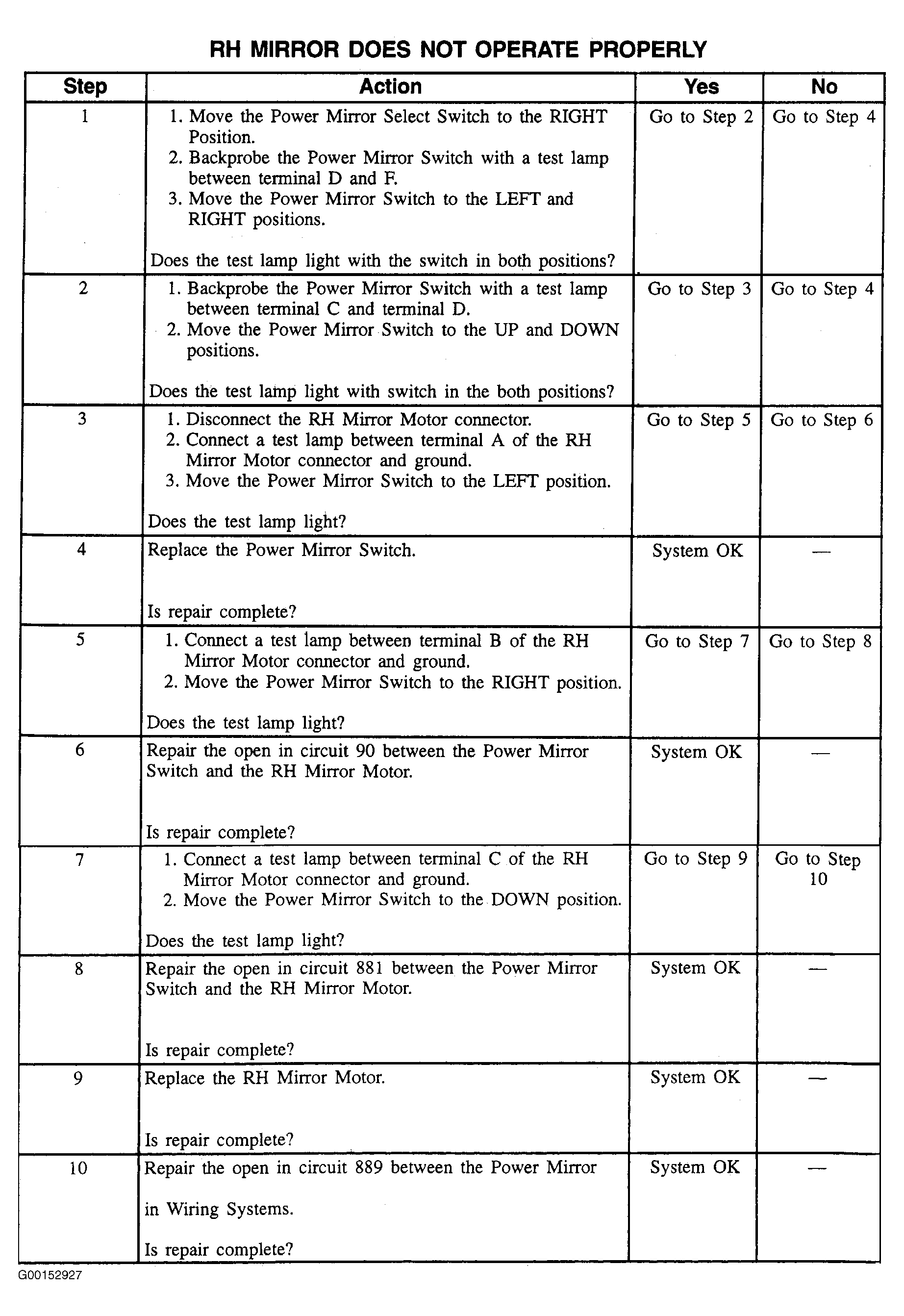

Fig 1: RH Mirror Test
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
