Parking System Components

  1. Remove manual valve link and spring from manual shift detent lever. See MANUAL VALVE LINK & OIL DAM . Remove manual shift detent lever nut from manual shift shaft. Remove manual shift detent lever and remove parking pawl actuator. See Fig 3. Use side cutting pliers to remove manual shift shaft pin. DO NOT cut through pin. Protect case with a piece of wood or rubber under pliers when removing pin.
  2. Position transaxle with reverse band servo bore facing up. Pull manual shift shaft out of case. Using a small screwdriver, pry manual shift shaft seal from case. Remove parking pawl actuator guide pin. Remove parking pawl actuator guide from case. Remove actuator guide seal from guide. See Fig 3.
Fig 1: Exploded View Of Transaxle Internal Components (1 Of 2)
G98E01983Courtesy of GENERAL MOTORS CORP.
Fig 2: Exploded View Of Transaxle Internal Components (2 Of 2)
G98G01984Courtesy of GENERAL MOTORS CORP.

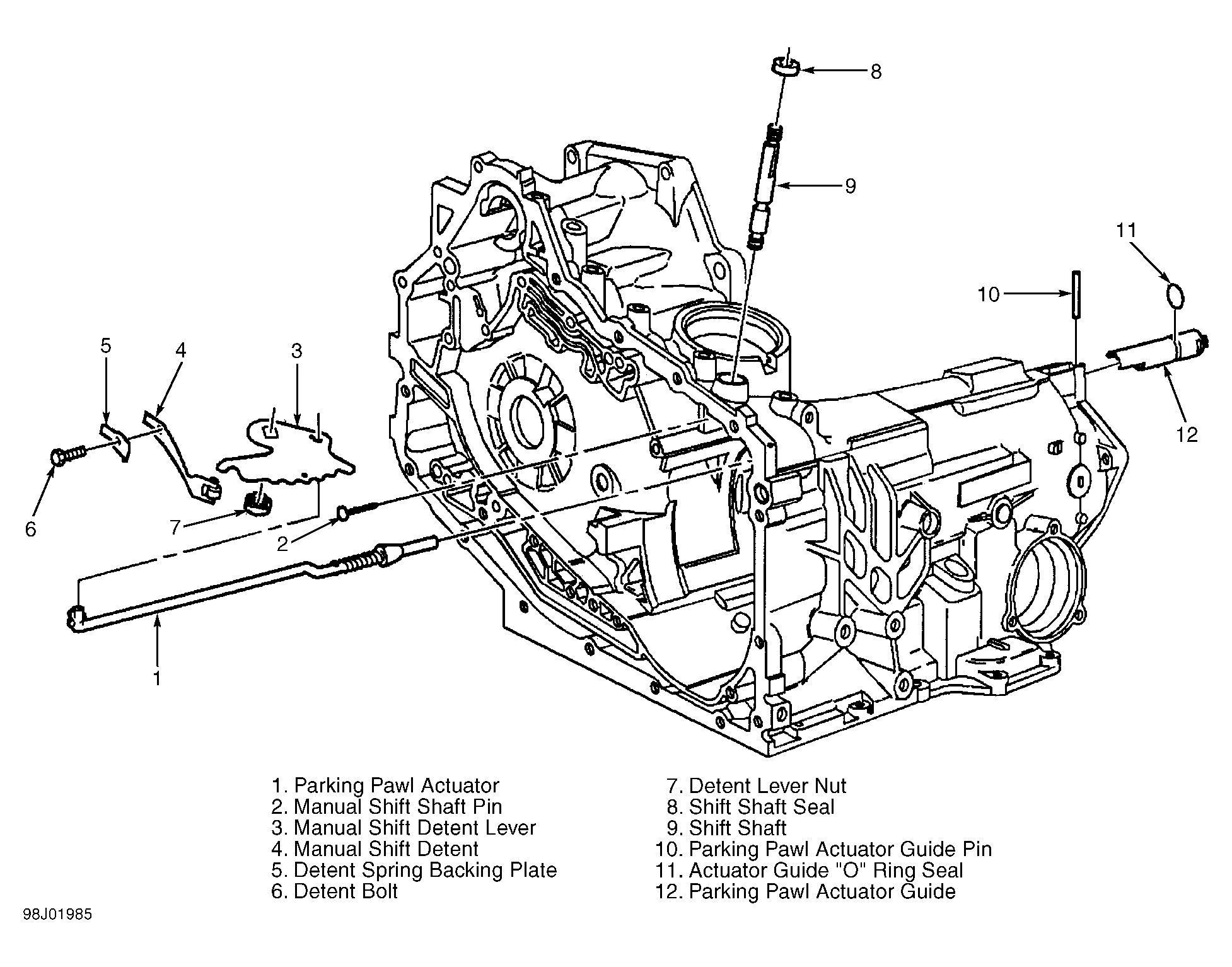

Fig 3: Exploded View Of Parking System Components
G98J01985Courtesy of GENERAL MOTORS CORP.
