Remote Control Door Lock Receiver (Rcdlr)

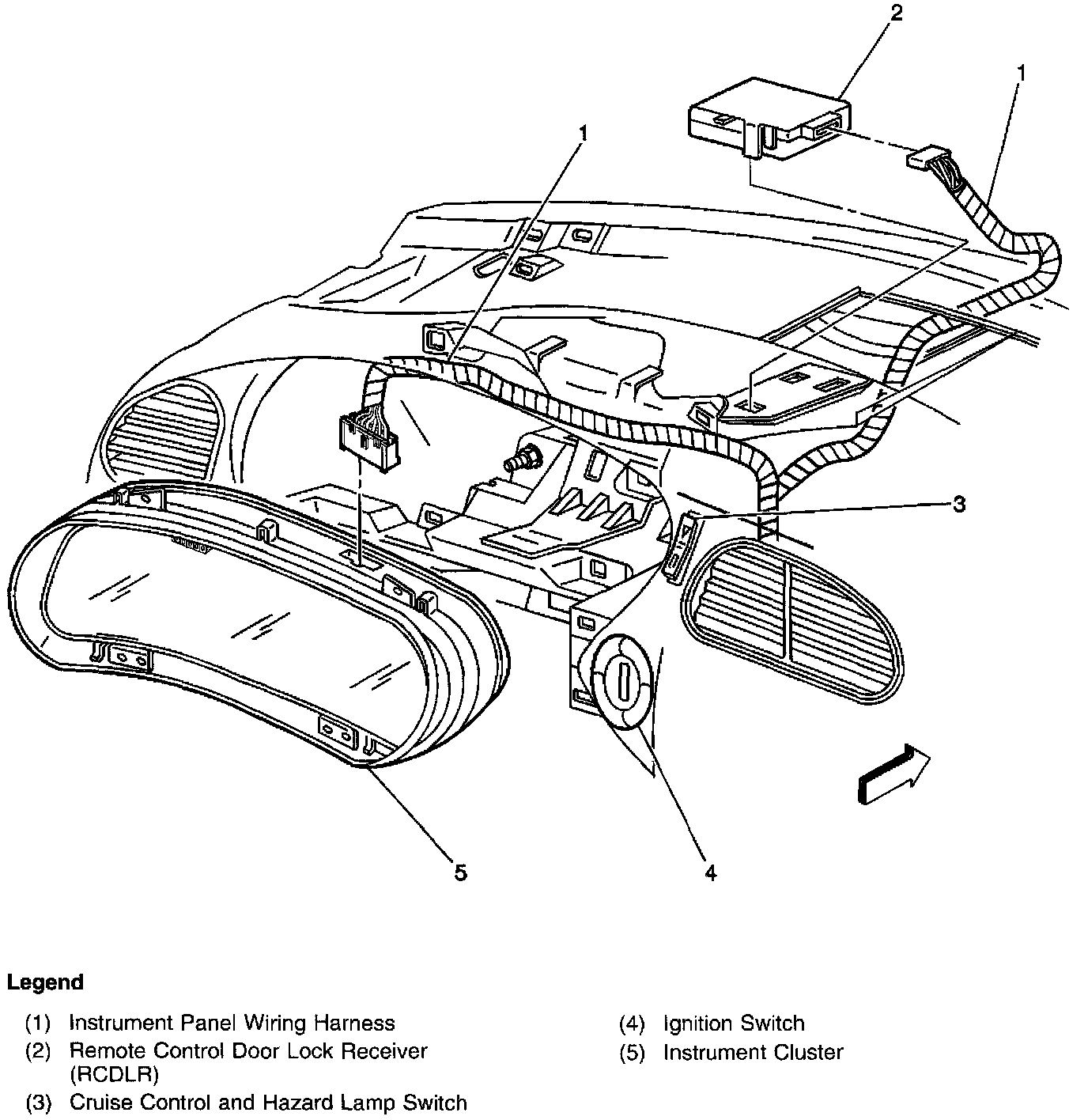

RCDLR, Cruise Control & Hazard Lamp SW, Ignition SW Instrument Cluster - LH Side Of I/P:





LH side of I/P, above RH side of instrument cluster
