Electronic Brake Control Module
>>
C1 Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

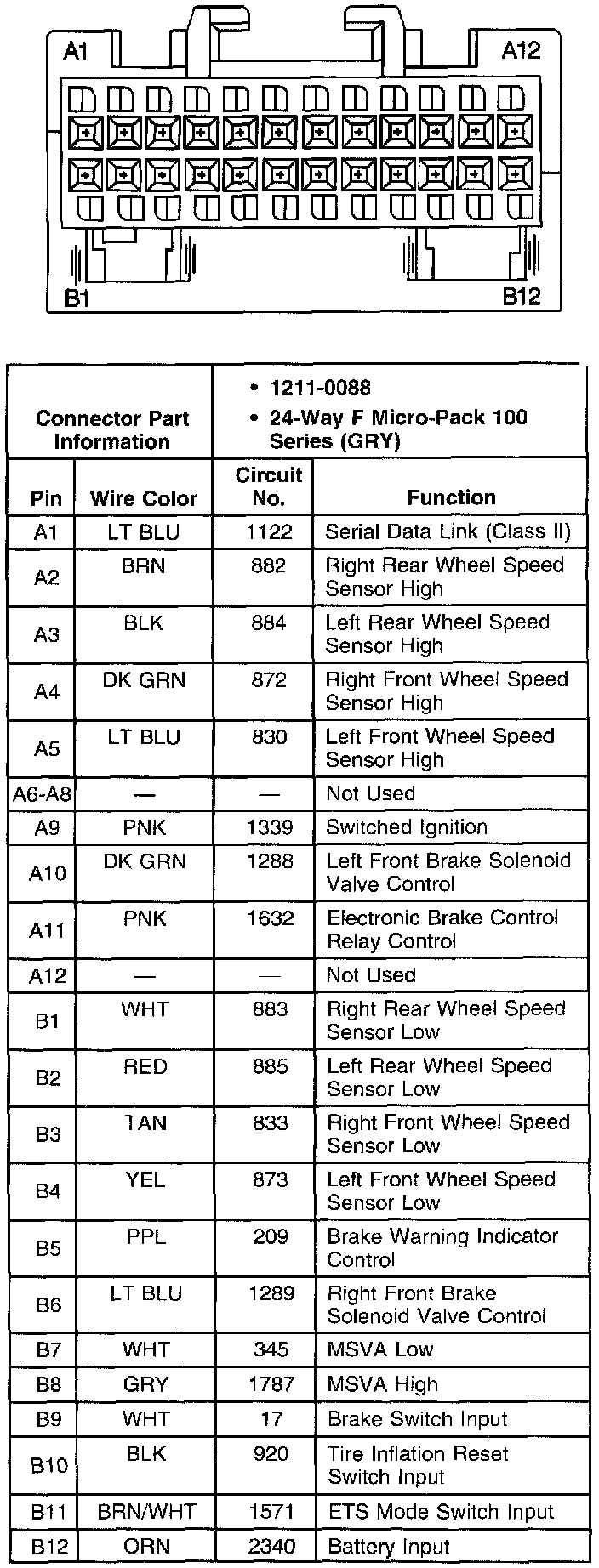

C1 Connector
EBTCM Connector C1:
