Remove

Tools Required
- J 5403 Snap Ring Pliers
- J 9553-01 O-Ring Remover
- J 39500 R-134a Air Conditioning Refrigerant Recovery, Recycling And Recharging System

1. Recover the refrigerant using the J 39500.

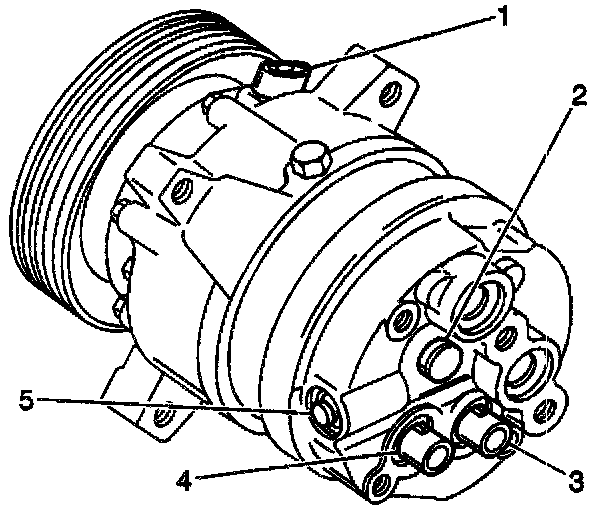

2. Disconnect the electrical connector from the switch (3 or 4) in the rear head of the compressor.
3. Remove the switch retaining ring using the J5403.
4. Remove the switch (3 or 4) from the compressor. Notice: If the existing switch will be reinstalled in the compressor, a new O-ring seal must be used and preferably a new retainer should also be used. A new switch kit has the O-ring and retainer ring included.
5. Remove the old O-ring seal from the switch cavity using the J 9553-01.
