Electronic Brake Control Relay Replacement

REMOVAL PROCEDURE
1. Remove the I/P sound insulator panel. Refer to Insulator Replacement - IP in Instrument Panel, Gauges and Console.

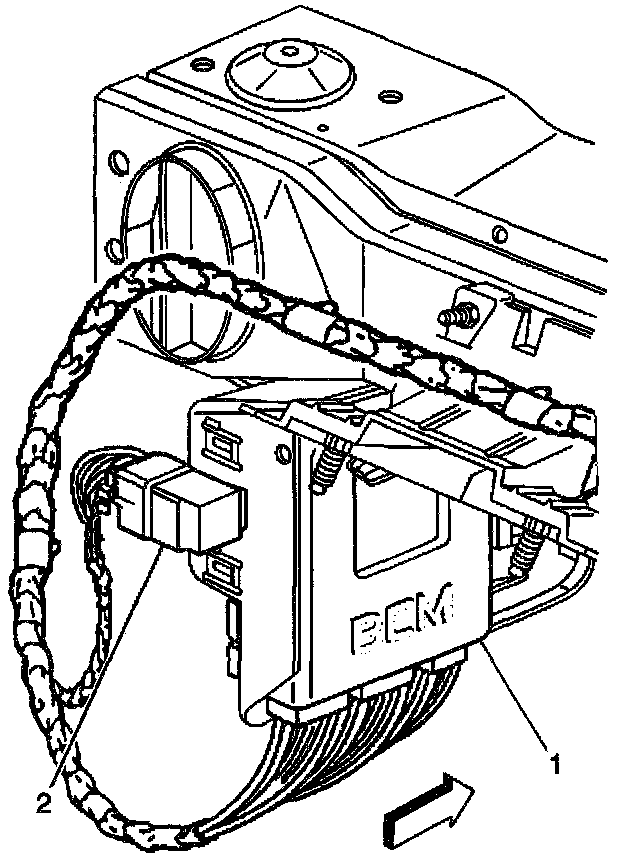

2. Release the electronic brake control relay (2) from the EBTCM bracket (1).
3. Remove the electronic brake control relay connector.

INSTALLATION PROCEDURE
1. Install the electronic brake control relay connector.

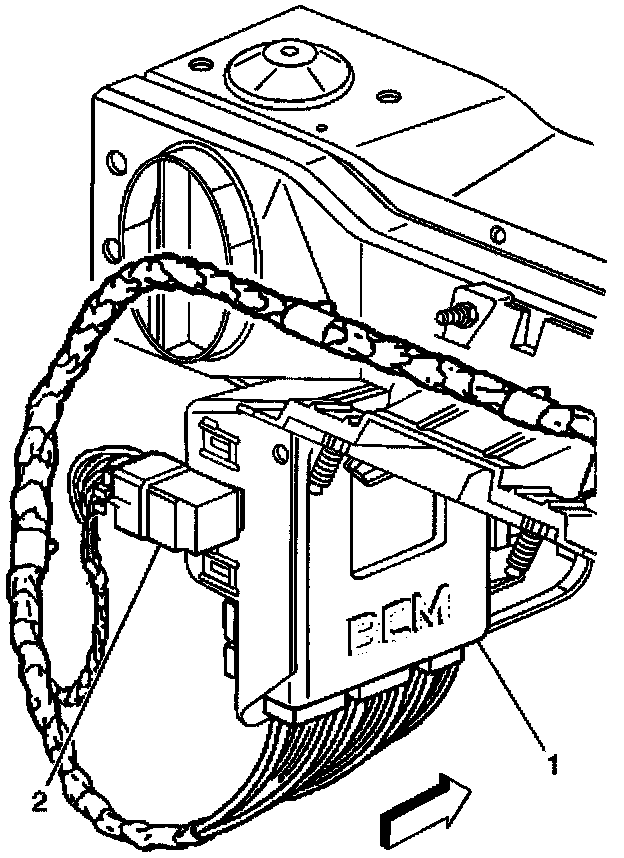

2. Slide the electronic brake control relay (2) into the EBTCM bracket (1) until the electronic brake control relay is secure.
3. Install the IP sound insulator panel. Refer to Insulator Replacement - IP in Instrument Panel, Gauges and Console.
