Manifold Pressure/Vacuum Sensor: Service and Repair

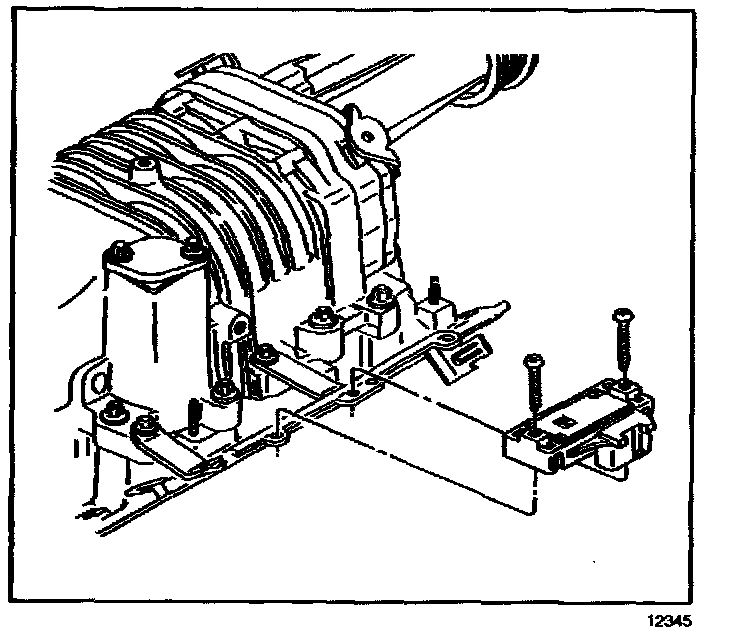

REMOVAL PROCEDURE
1. Remove two (2) screws.
2. Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector and vacuum hose from the sensor.
3. Remove the MAP sensor.

INSTALLATION PROCEDURE
1. Connect the electrical connector and vacuum hose to the MAP sensor.
2. Position the MAP sensor to the bracket and secure with two (2) screws
