Manifold Pressure/Vacuum Sensor: Service and Repair

REMOVAL PROCEDURE
1. Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector.

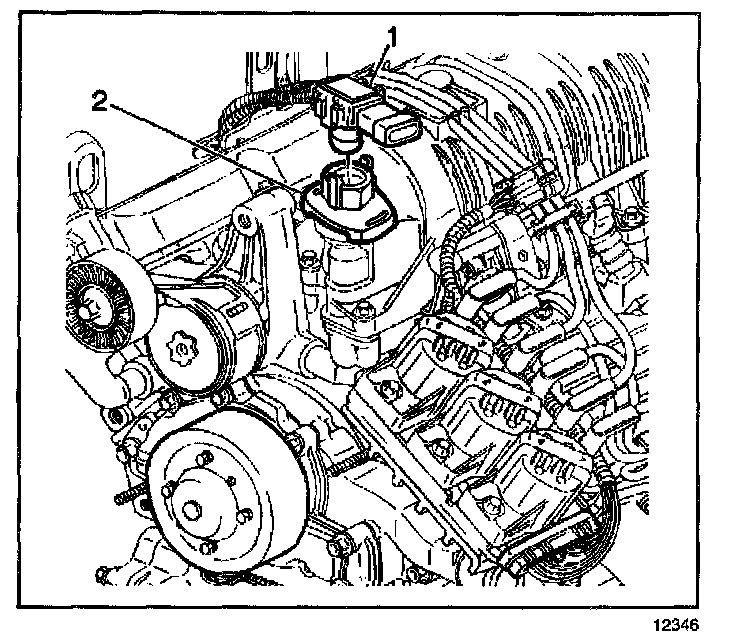

2. Carefully bend the locking tabs holding the MAP (1) sensor to the PCV valve cover (2) just enough to remove the MAP sensor.
3. Pull the MAP sensor straight out of PCV valve cover.

INSTALLATION PROCEDURE
1. Ensure that the seal is installed on the MAP sensor and that the seal is not damaged.
2. Position and install the MAP sensor to the PCV valve cover. Ensure that the locking tabs engage to hold the MAP sensor to the PCV valve cover.
3. Connect the electrical connector.
