Remote Lock Control Transmitter Programming
NOTE:
While reprogramming remote lock control transmitter, leave window down to avoid unintentional lock-out if procedure is not properly performed.

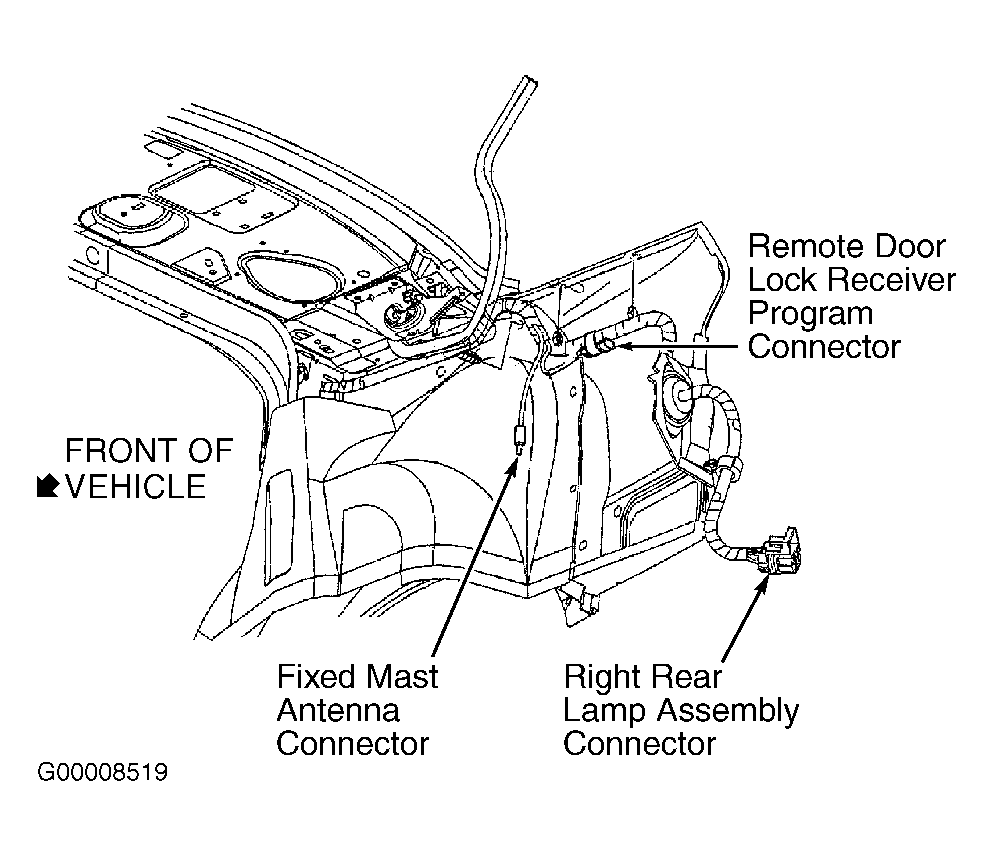

- Turn ignition off. Ground remote door lock receiver program connector by inserting jumper wire between terminals of connector. See Fig 1 . Within 2 seconds, door locks will lock and unlock, trunk release will cycle and horn will sound to indicate module is ready for programming.
- Depress and hold LOCK and UNLOCK buttons at same time until doors lock and unlock. Trunk lid will release and horn will sound to indicate transmitter has been successfully reprogrammed for first transmitter. Repeat procedure for remaining transmitters (4 total supported by receiver). Remove jumper wire from receiver program connector. Check each transmitter to verify operation.
