Connector Identification

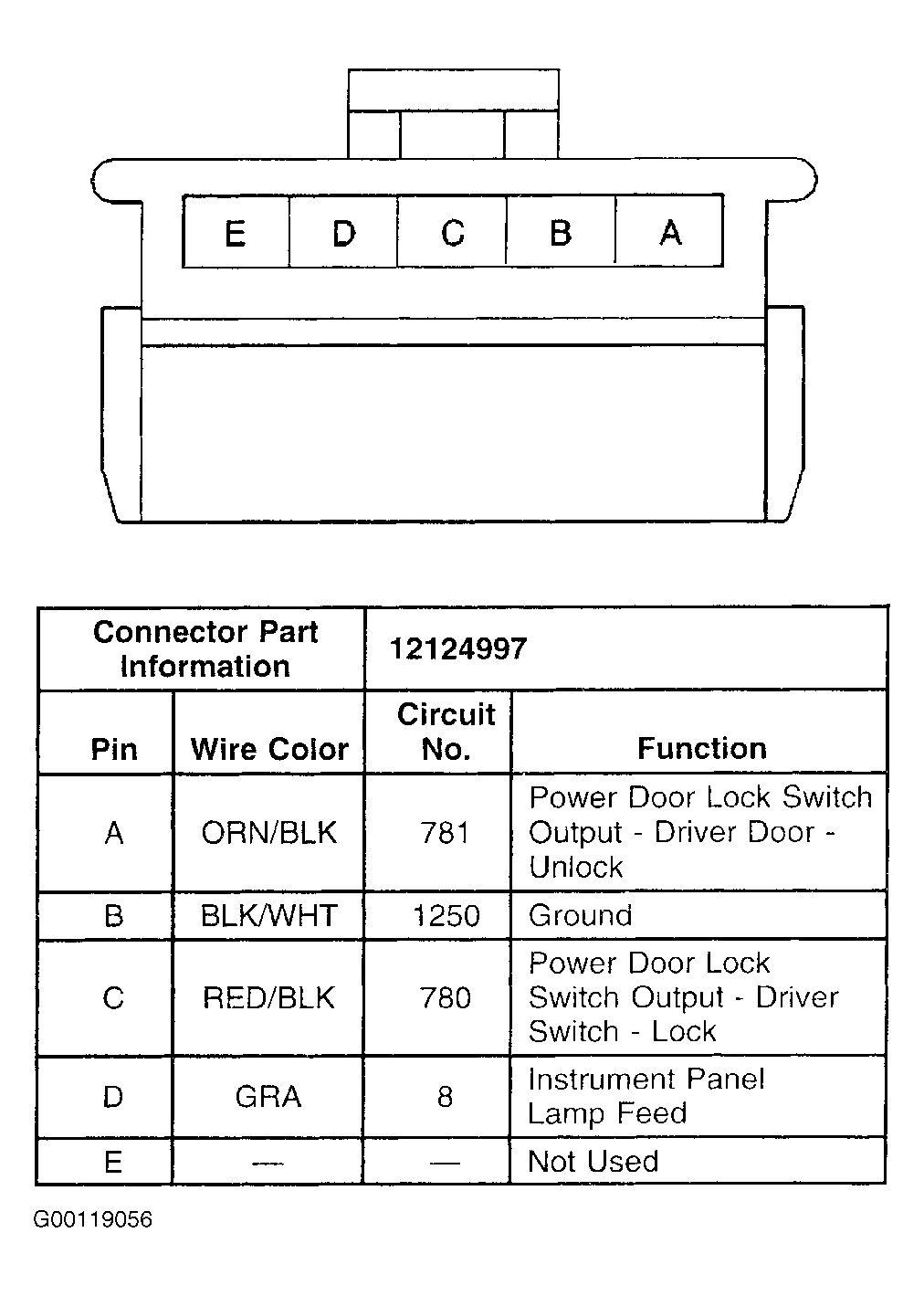

Fig 1: Identifying Left Front Power Door Lock Switch Connector (Pontiac)

Courtesy of GENERAL MOTORS CORP.

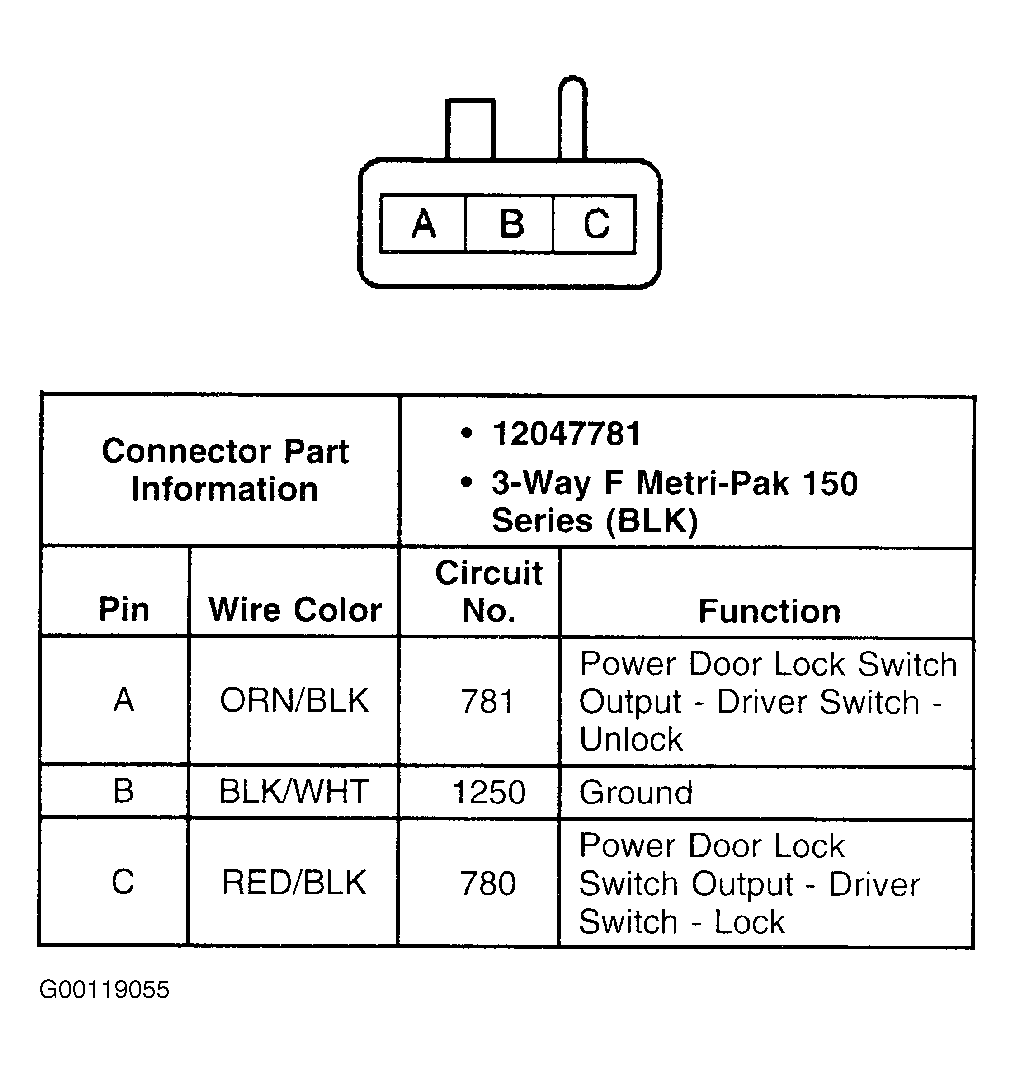

Fig 2: Identifying Left Front Power Door Lock Switch Connector (Buick, Oldsmobile)

Courtesy of GENERAL MOTORS CORP.

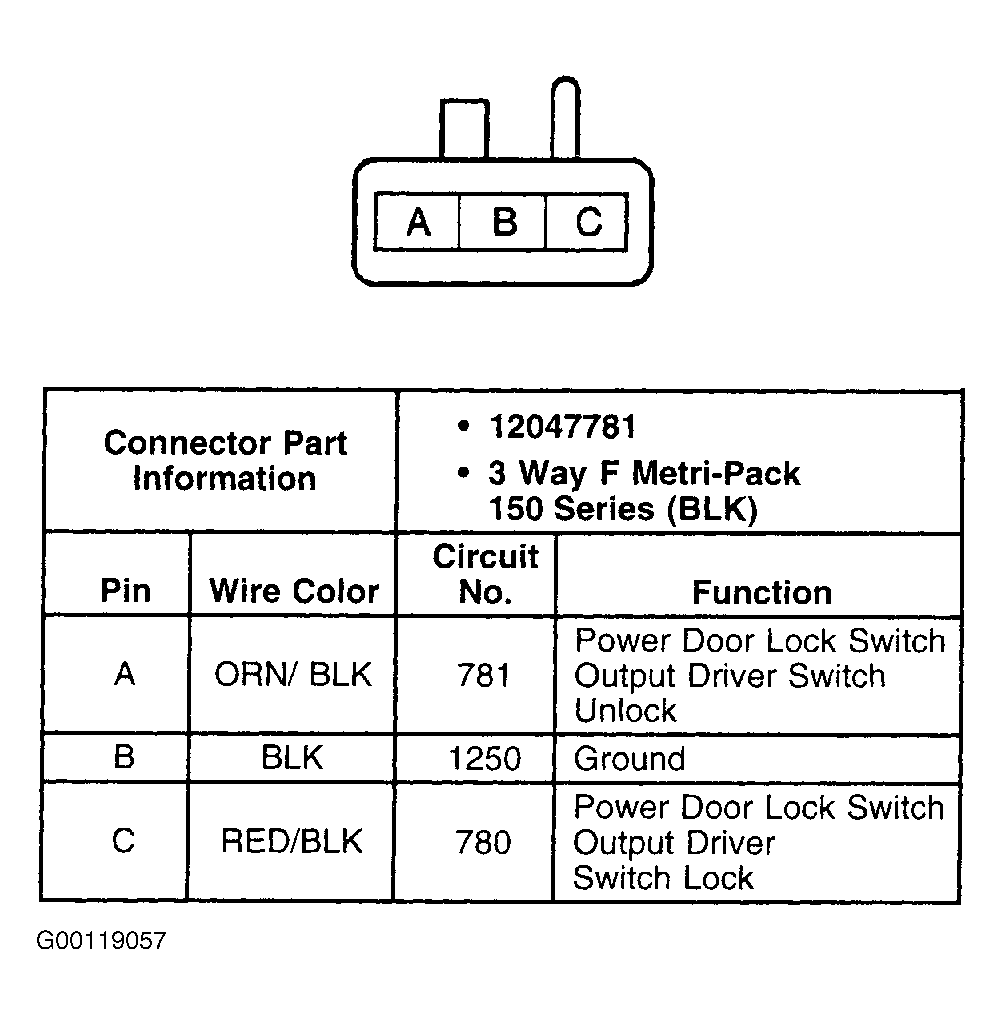

Fig 3: Identifying Right Front Power Door Lock Switch Connector (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Right Front Power Door Lock Switch Connector (Buick, Oldsmobile)

Courtesy of GENERAL MOTORS CORP.

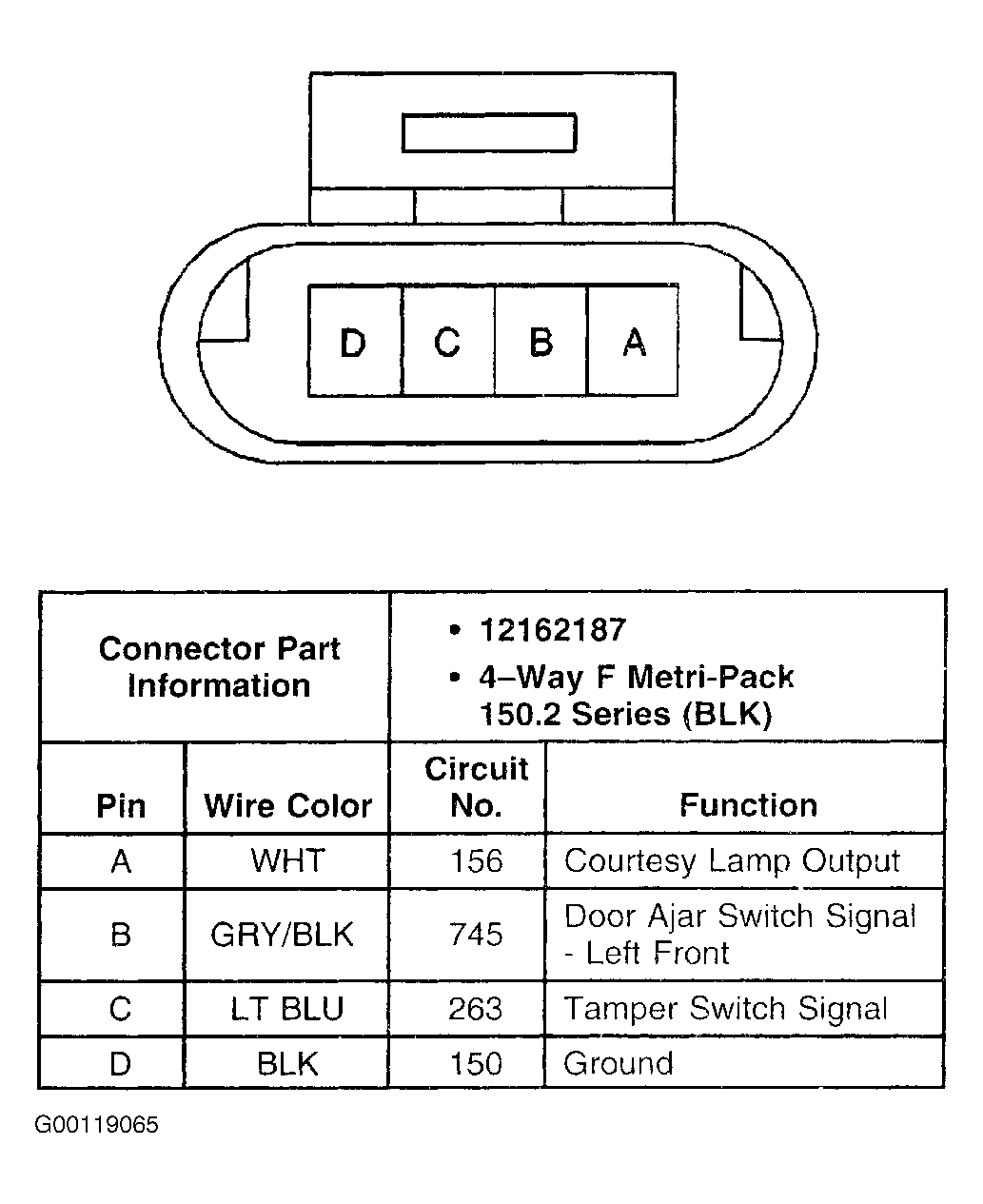

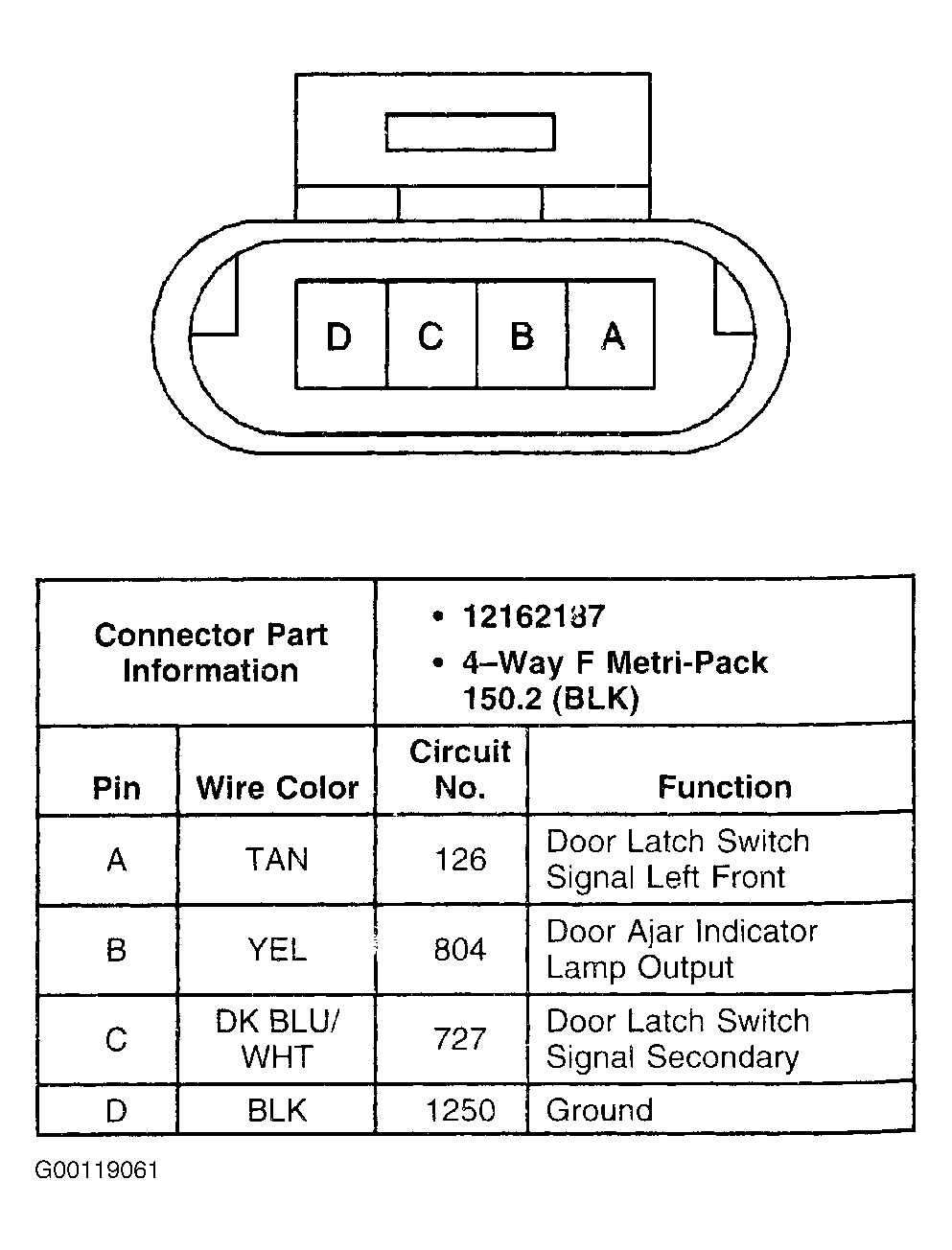

Fig 5: Identifying Left Front Door Lock Actuator C2 Connector

Courtesy of GENERAL MOTORS CORP.

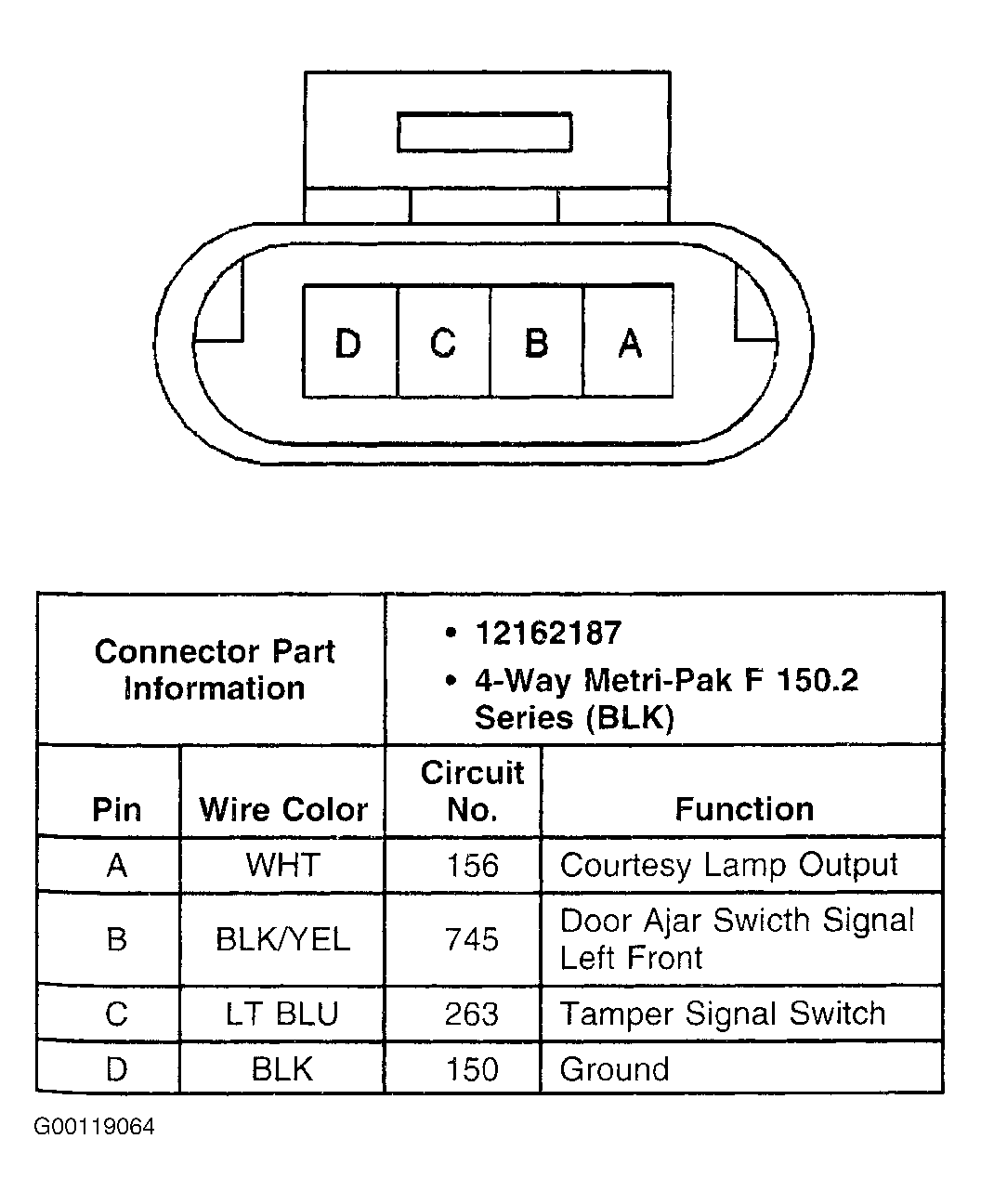

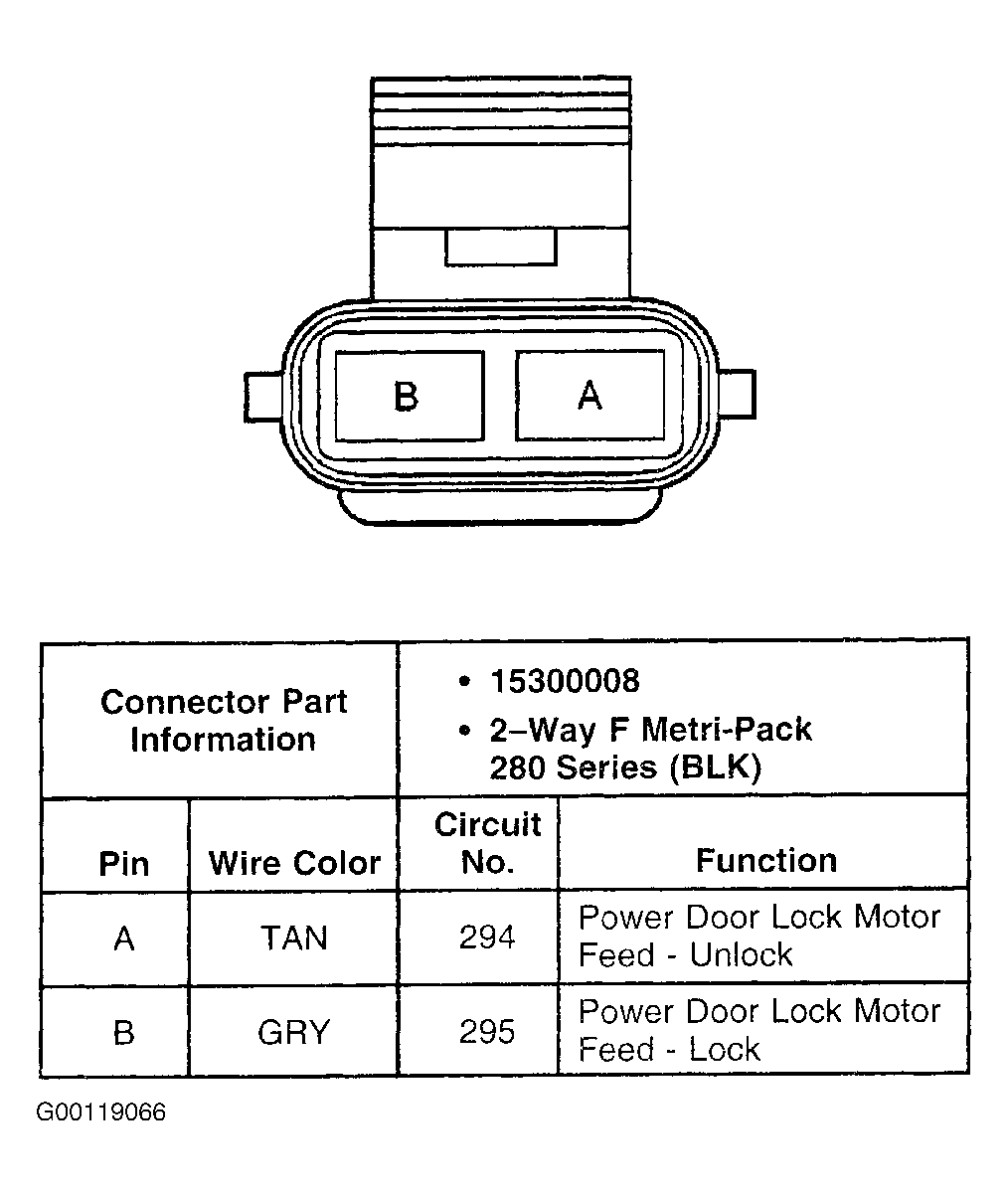

Fig 6: Identifying Left Front Door Lock Actuator C1 Connector

Courtesy of GENERAL MOTORS CORP.

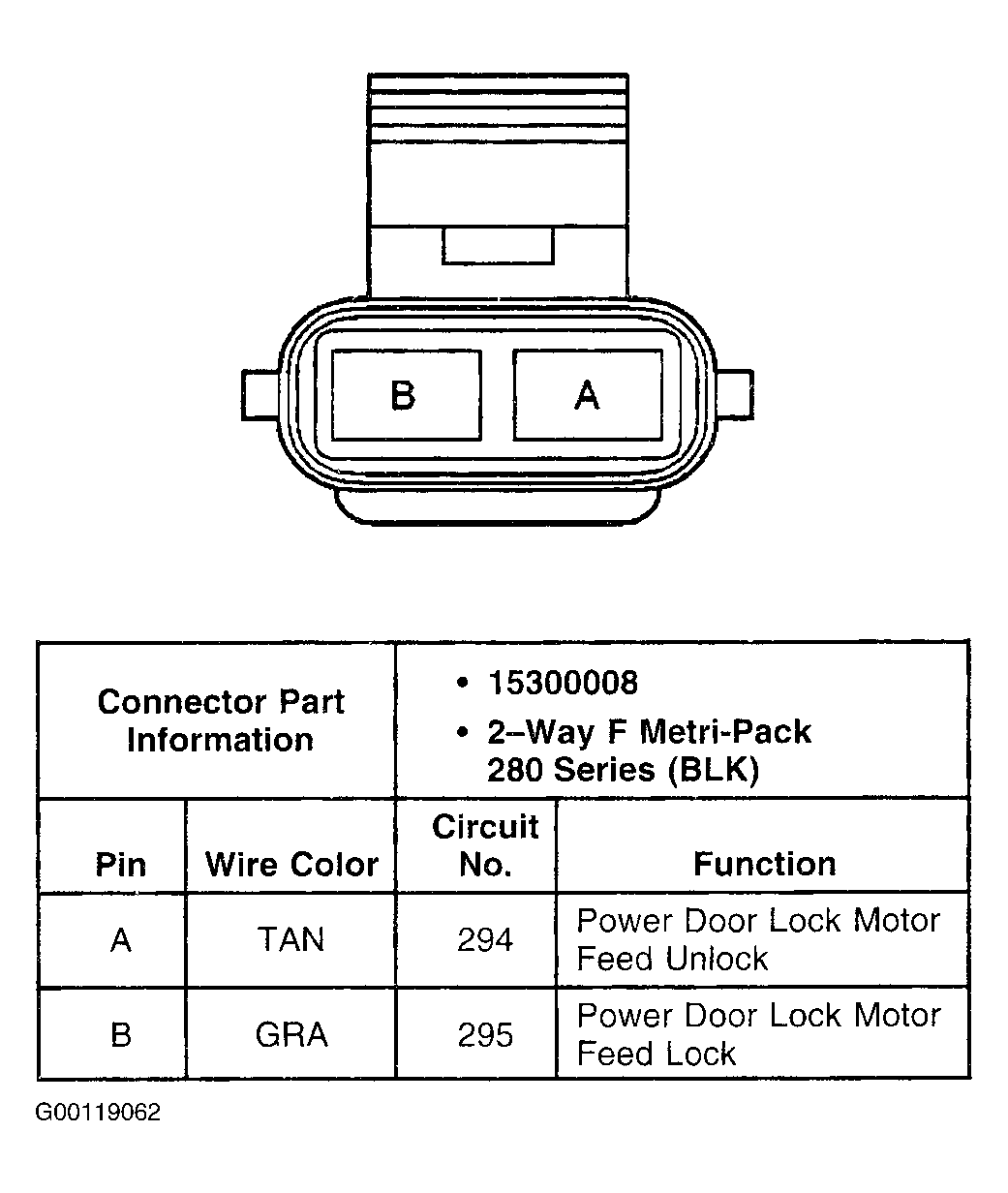

Fig 7: Identifying Right Front Door Lock Actuator C1 Connector

Courtesy of GENERAL MOTORS CORP.

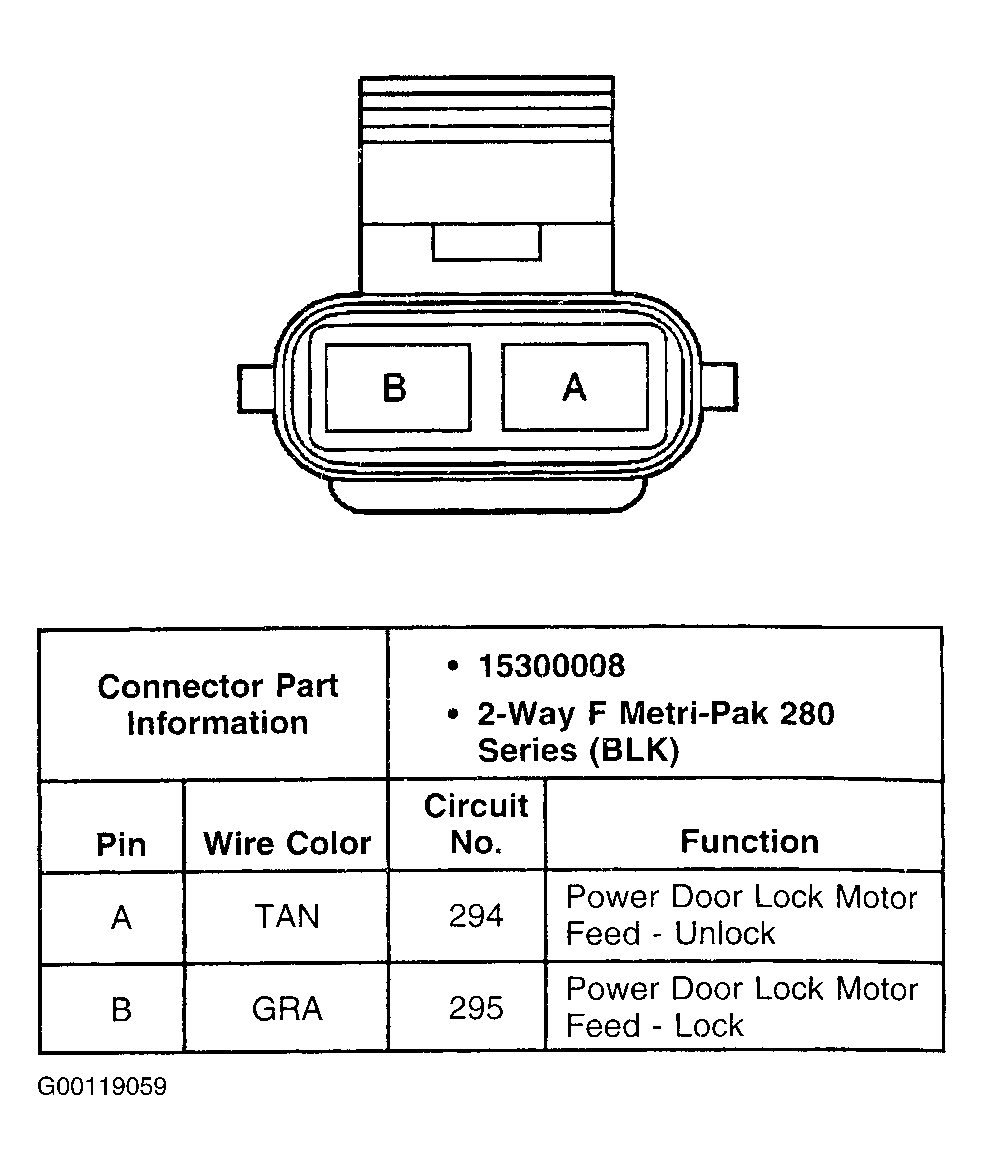

Fig 8: Identifying Right Front Door Lock Actuator C2 Connector

Courtesy of GENERAL MOTORS CORP.

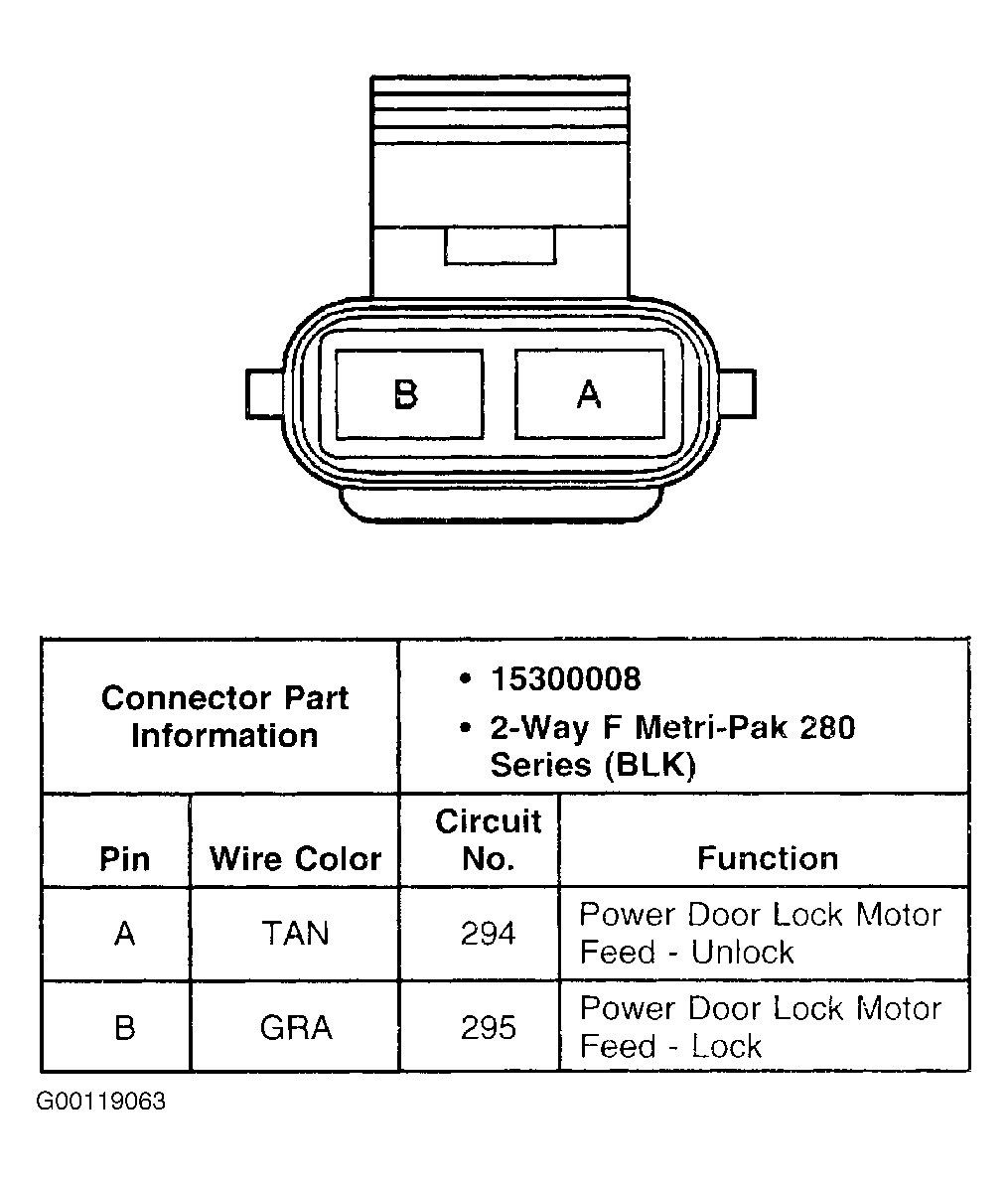

Fig 9: Identifying Left Rear Door Lock Actuator C2 Connector

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Left Rear Door Lock Actuator C1 Connector

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Right Rear Door Lock Actuator C1 Connector

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying Right Rear Door Lock Actuator C2 Connector

Courtesy of GENERAL MOTORS CORP.
