Test G: Transmitter

For test procedure, refer to illustration. See Fig 1 .

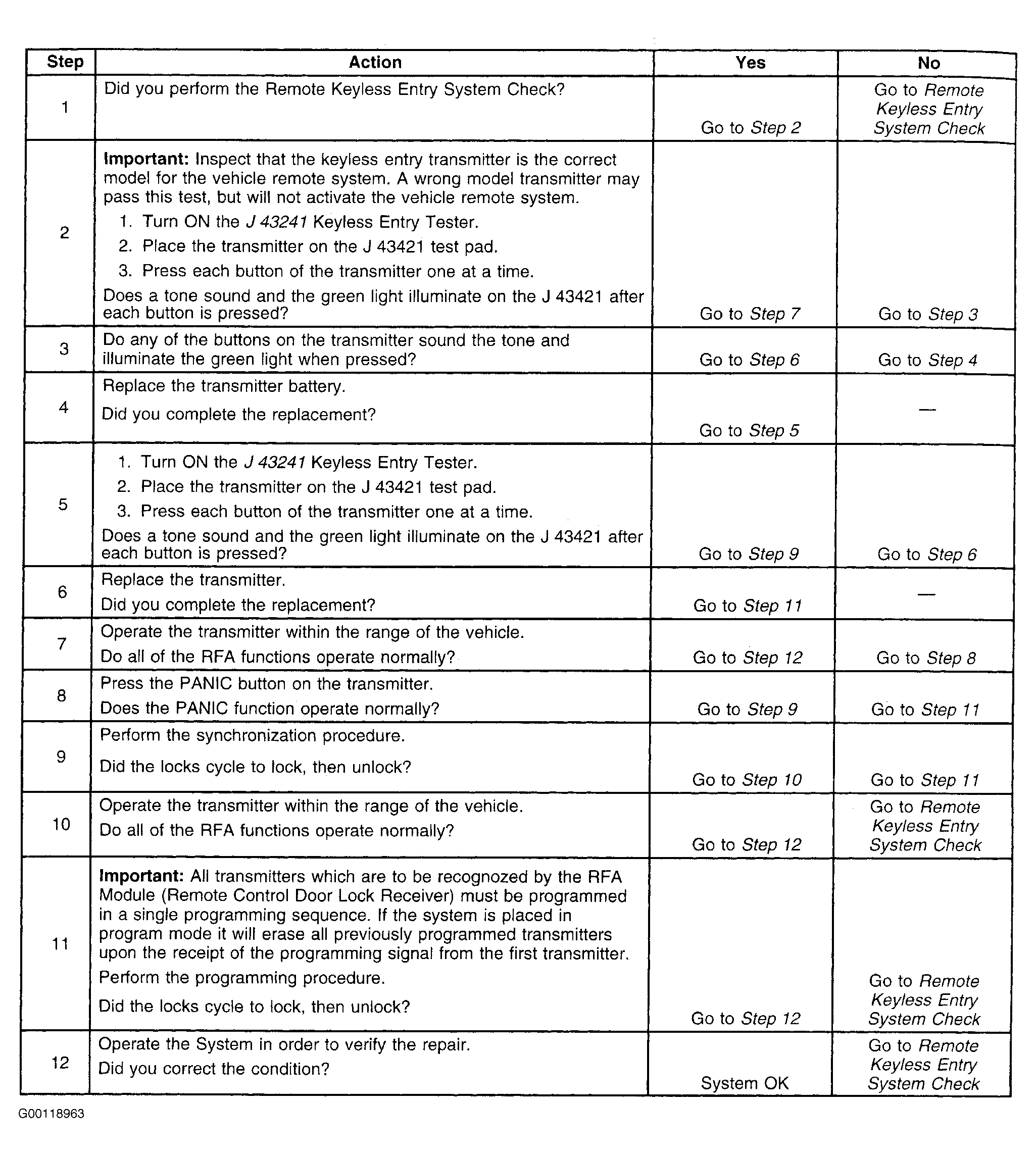

Fig 1: Test G: Transmitter
G00118963Courtesy of GENERAL MOTORS CORP.
