Keyless Entry Diagnostic System Check

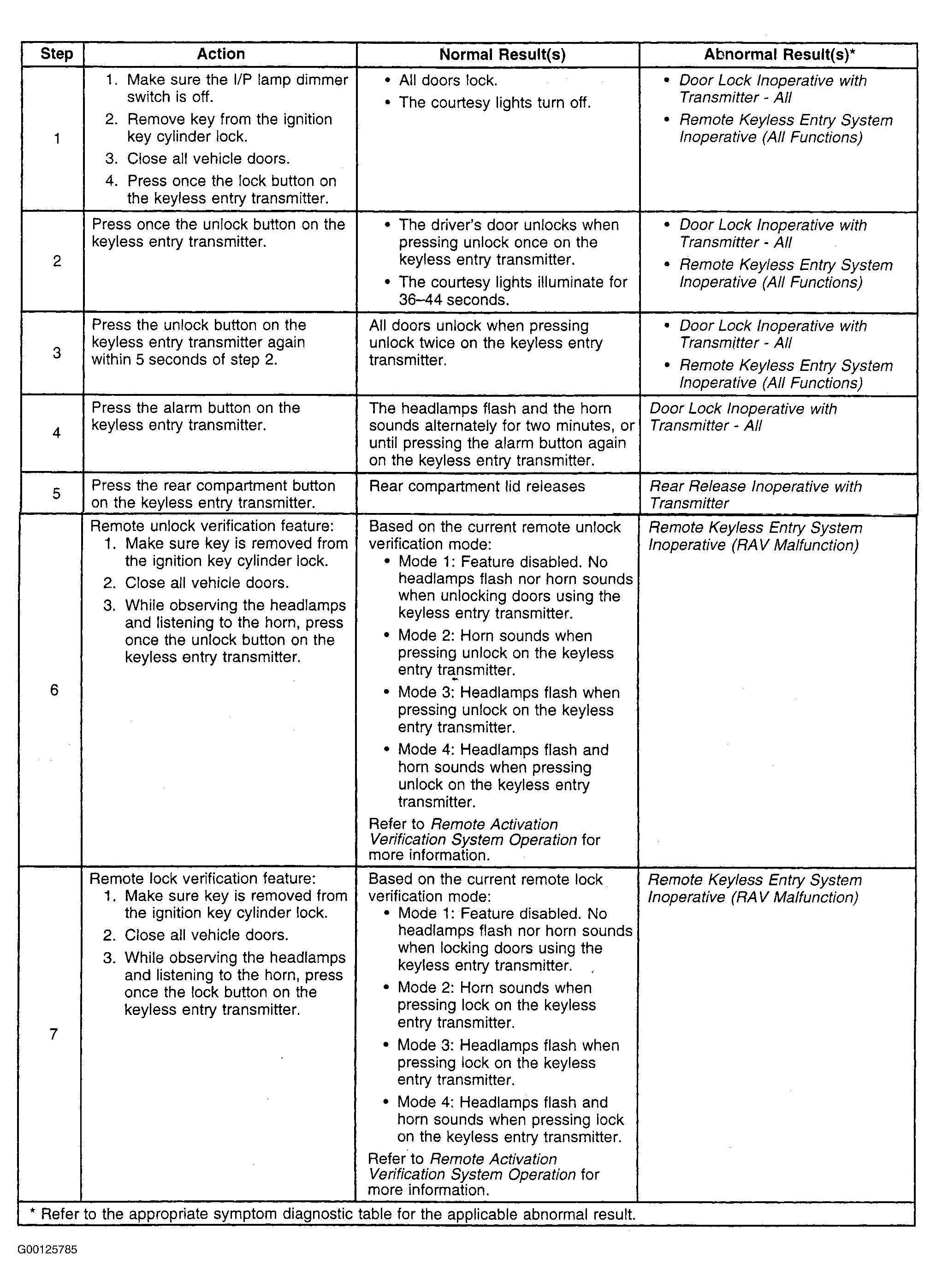

To check keyless entry system operation, perform keyless entry diagnostic system check. See Fig 1 . If keyless entry system does not operate as specified, diagnose by symptom. Perform appropriate test. See SYSTEM TESTS .
DIAGNOSTIC TROUBLE CODE INDEX
| DTC | Description |
|---|---|
| B2802 | RFA Link Circuit Shorted to Ground |
| B2803 | RFA Link Circuit (Shorted To Voltage) |
| B2805 | RFA Programming/Diagnostic Mode Message Not Received |
| B2806 | RFA Link Parity Error |
