Test G: Remote Keyless Entry System Inoperative (All Functions)

To perform test, see Fig 1 and Fig 2

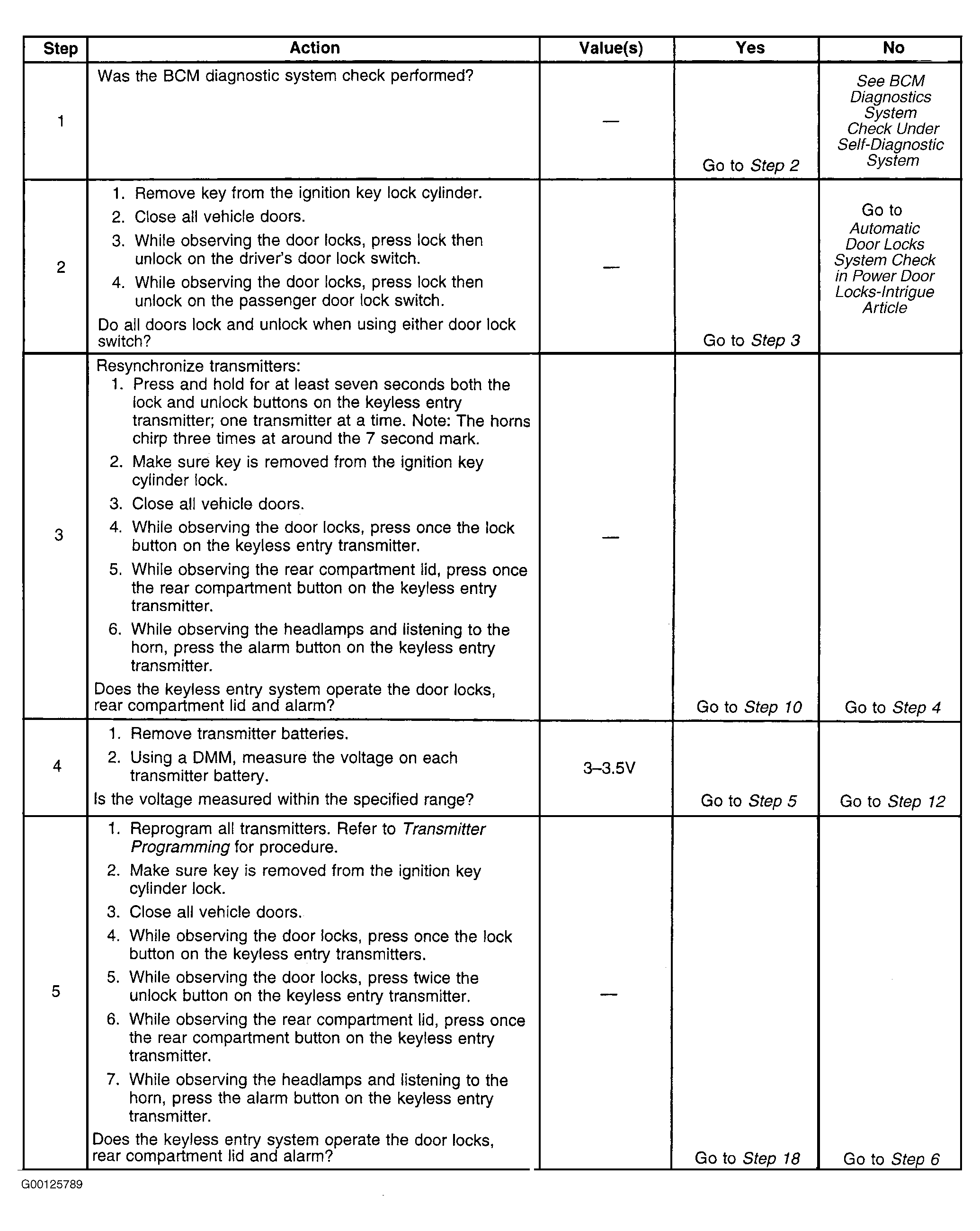

Fig 1: Remote Keyless Entry System Inoperative - All Functions (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

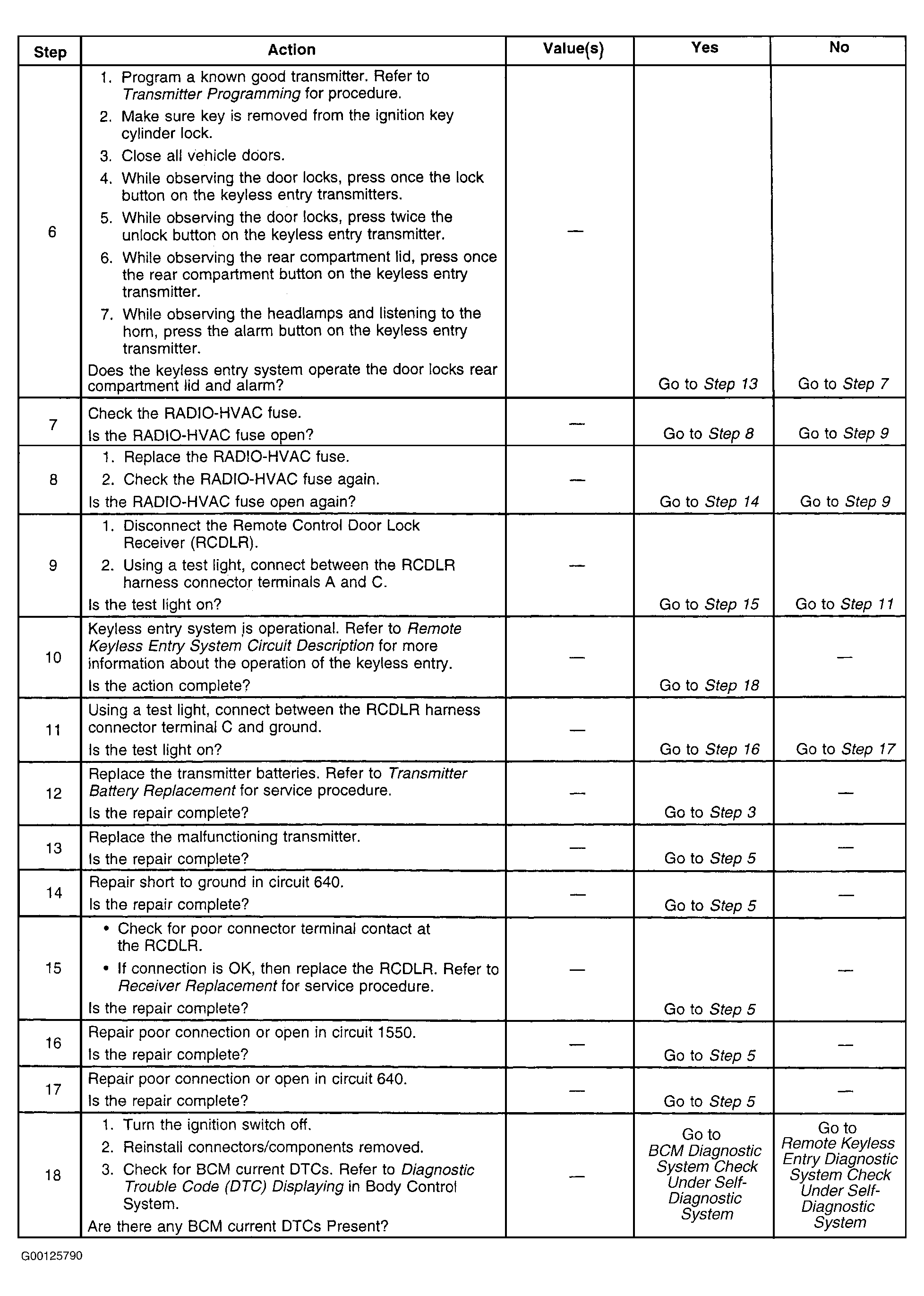

Fig 2: Remote Keyless Entry System Inoperative - All Functions (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
