Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

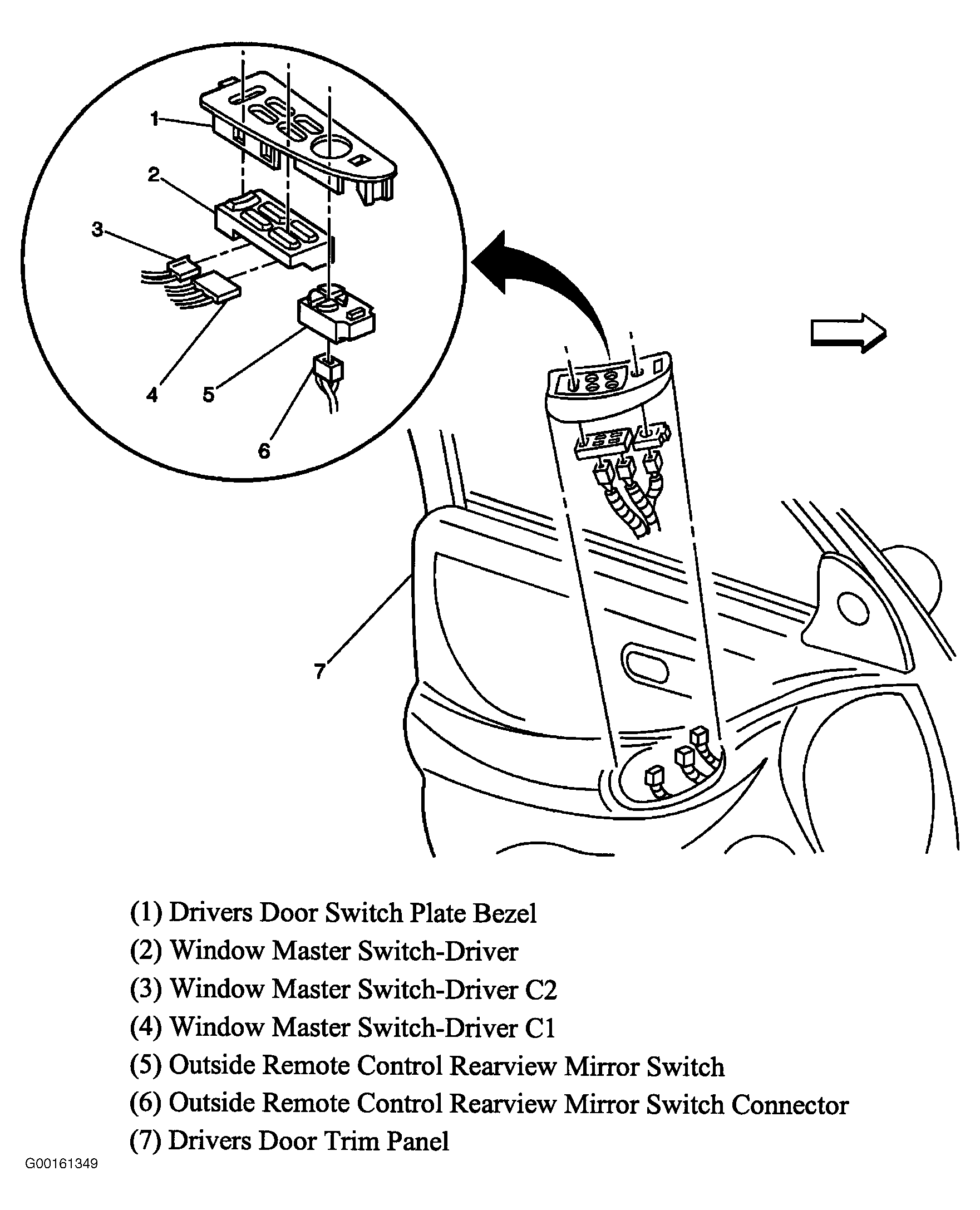

| Driver's Power Window Switch | In Driver's Side Door Panel. See Fig 1 . |
| Express Down Module | Part Of Left Front Window Switch. See Fig 1 . |

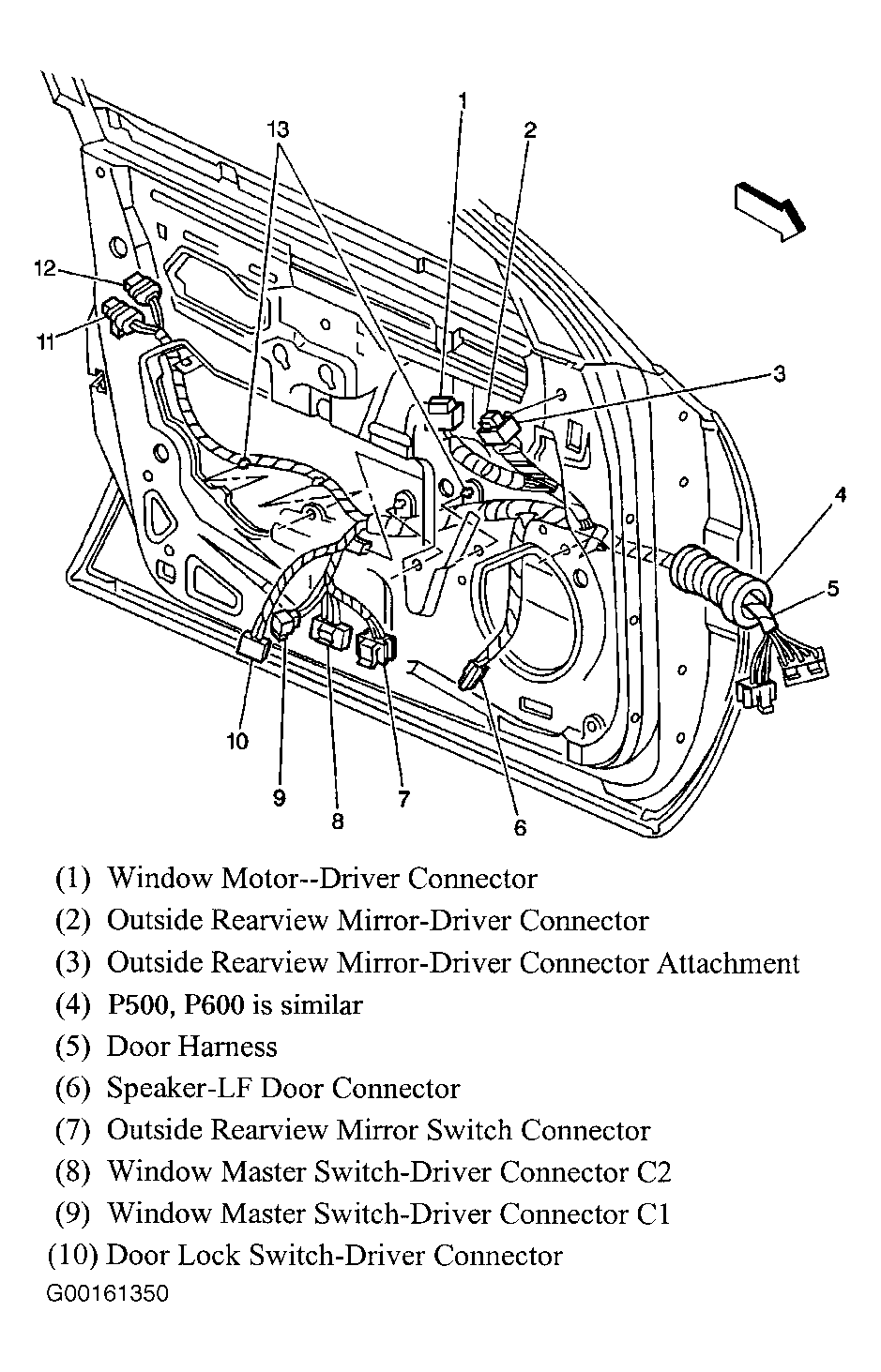

| Window Regulator Motor | In Center Of Door. See Fig 2 . |
| Fuse Block | On Right Side Of Instrument Panel, In Right Front Door Opening. |

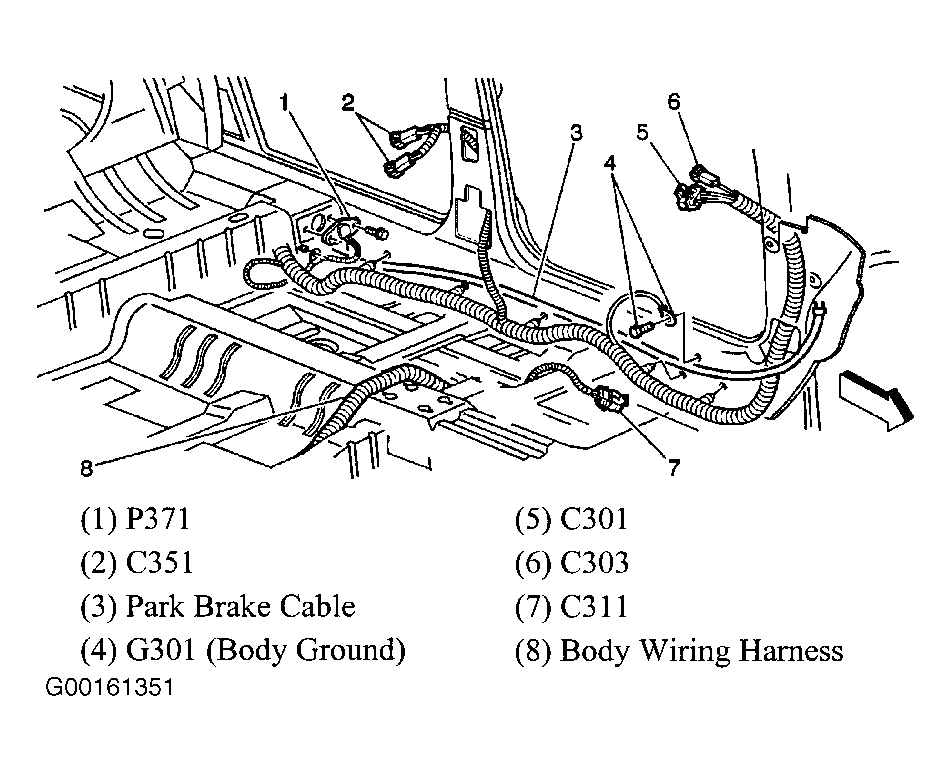

| C301 | In Body Wiring Harness To Left Front Door Wiring Harness, Behind Trim At Base Of A-Pillar. See Fig 3 . |

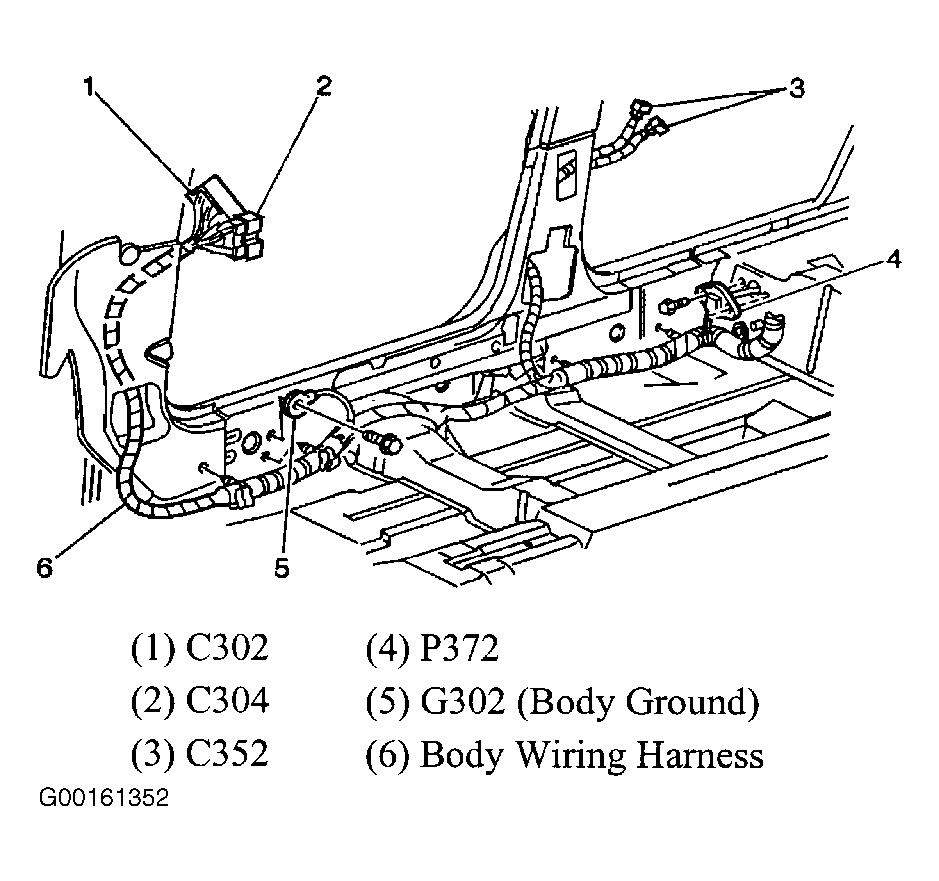

| C302 | In Body Wiring Harness To Right Front Door Wiring Harness, Behind Trim At Base Of A-Pillar. See Fig 4 . |

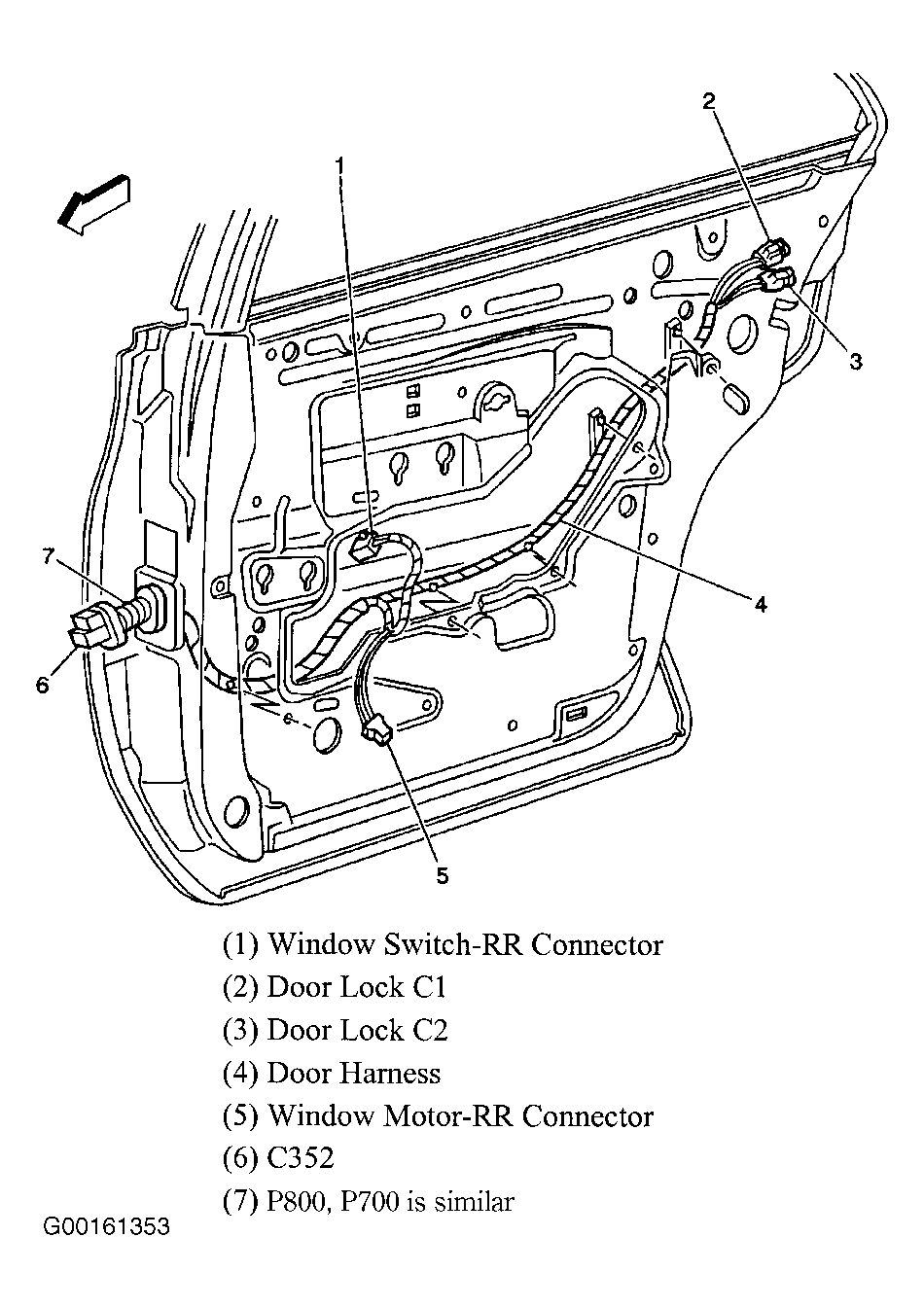

| C352 | In Body Wiring Harness To Left Rear Door Wiring Harness, Behind Trim At Base Of B-Pillar. See Fig 4 . |
| G301 | Inside Left Door Sill, Forward Of Left Front Seat. See Fig 3 . |
| P500 | At Left A-Pillar. See Fig 2 . |
| P600 | At Right A-Pillar. See Fig 2 . |
| P700 | At Left B-Pillar. See Fig 5 . |
| P800 | At Right B-Pillar. See Fig 5 . |
| S303 | In Body Wiring Harness, Below Driver's Seat, Approx. 4" From C311 (Drivers Seat Connector) Breakout. |
| S307 | In Body Wiring Harness, On Floor Near Center Of Vehicle, Approx. 15" From C311 (Driver's Seat Connector) Breakout. |
| S504 | In Left Front Door Wiring Harness, Inside Door, Approx. 2" From Window Switch Breakout. |
| S604 | In Right Front Door Wiring Harness, Inside Door, Approx. 2" From Window Switch Breakout. |
