Test A: Power Window Are Inoperative

To perform test, see Fig 1 and Fig 2 .

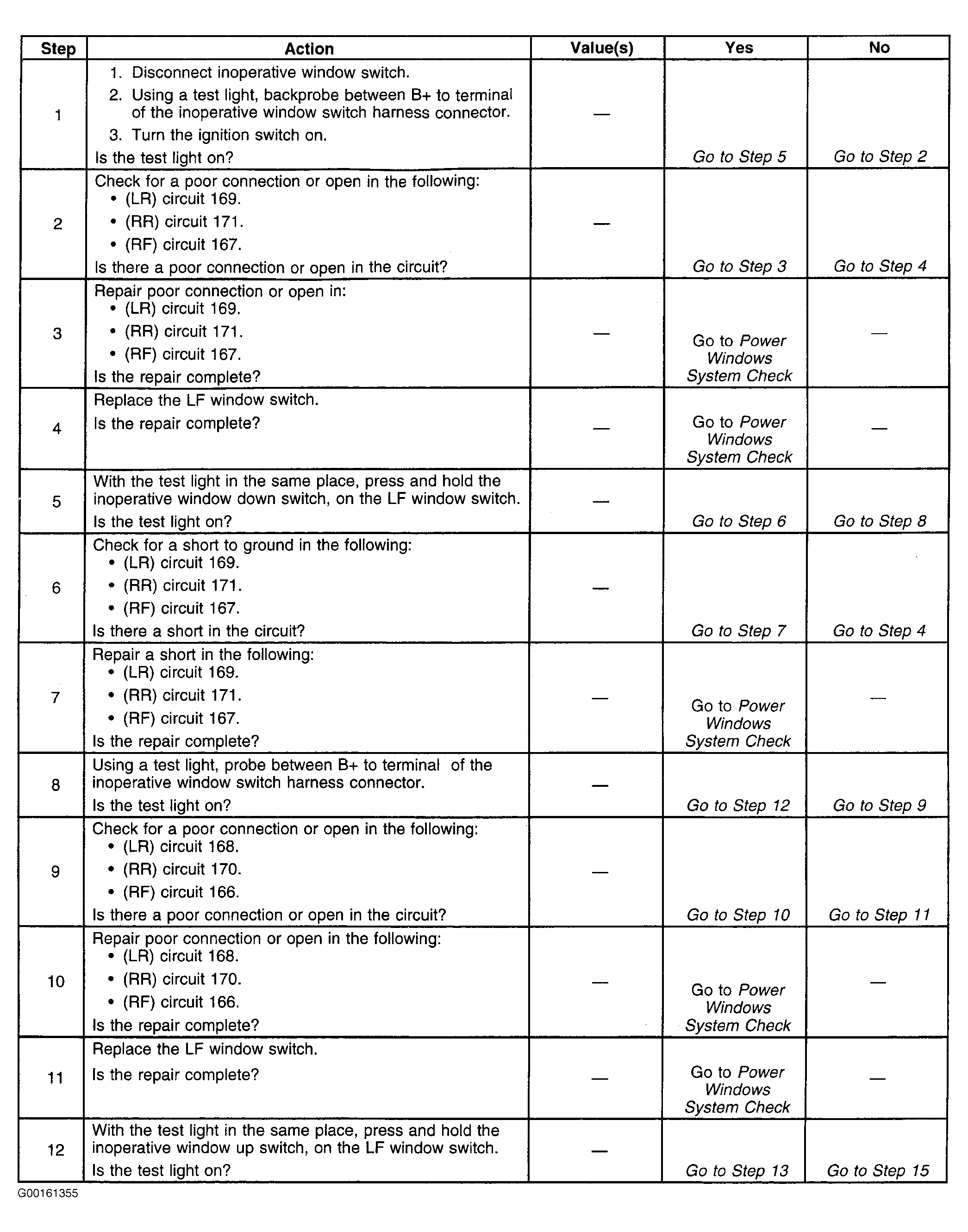

Fig 1: Power Windows Are Inoperative (1 Of 2)
G00161355Courtesy of GENERAL MOTORS CORP.

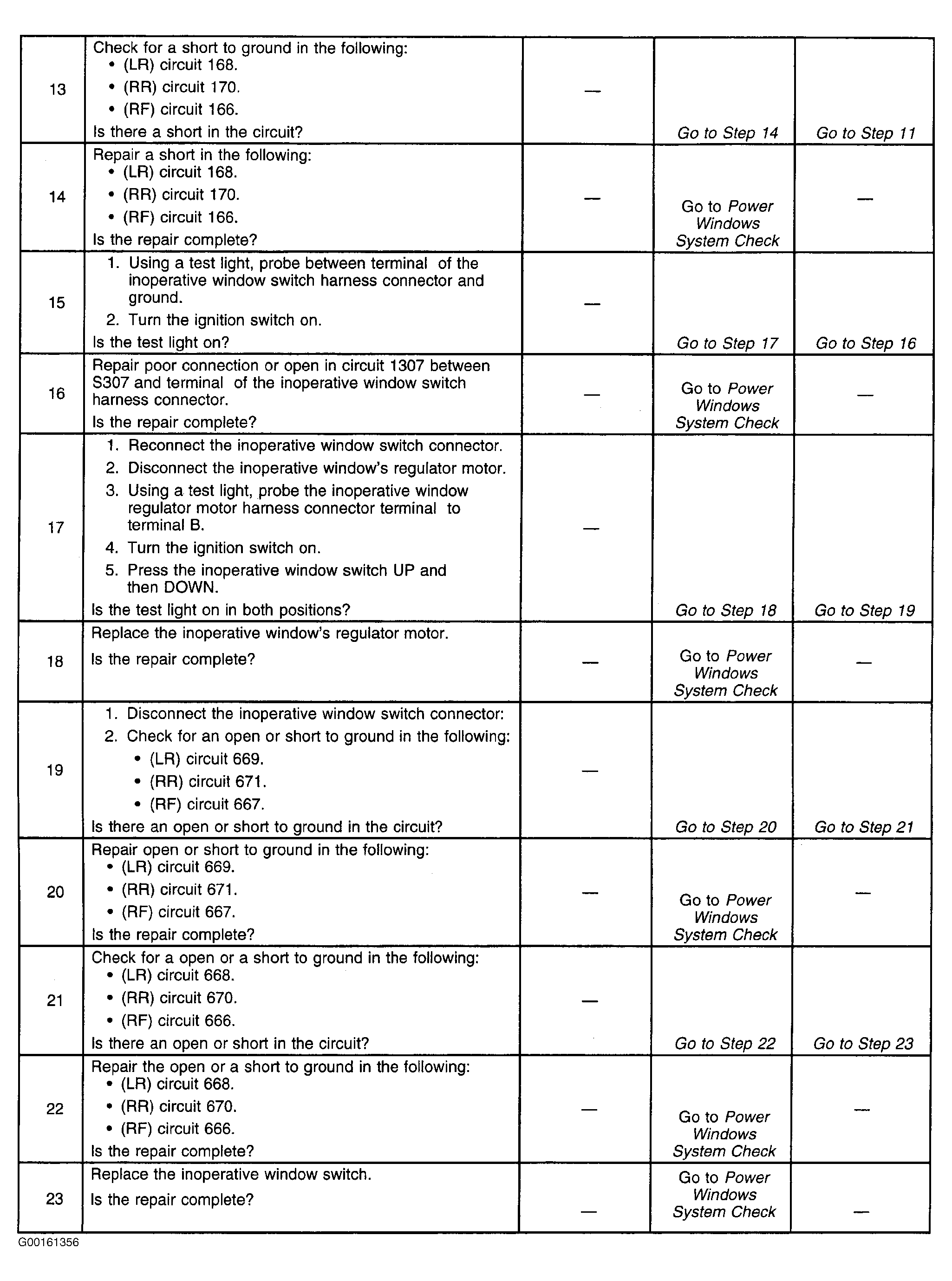

Fig 2: Power Windows Are Inoperative (2 Of 2)
G00161356Courtesy of GENERAL MOTORS CORP.
