Instrument Panel Fuse Block

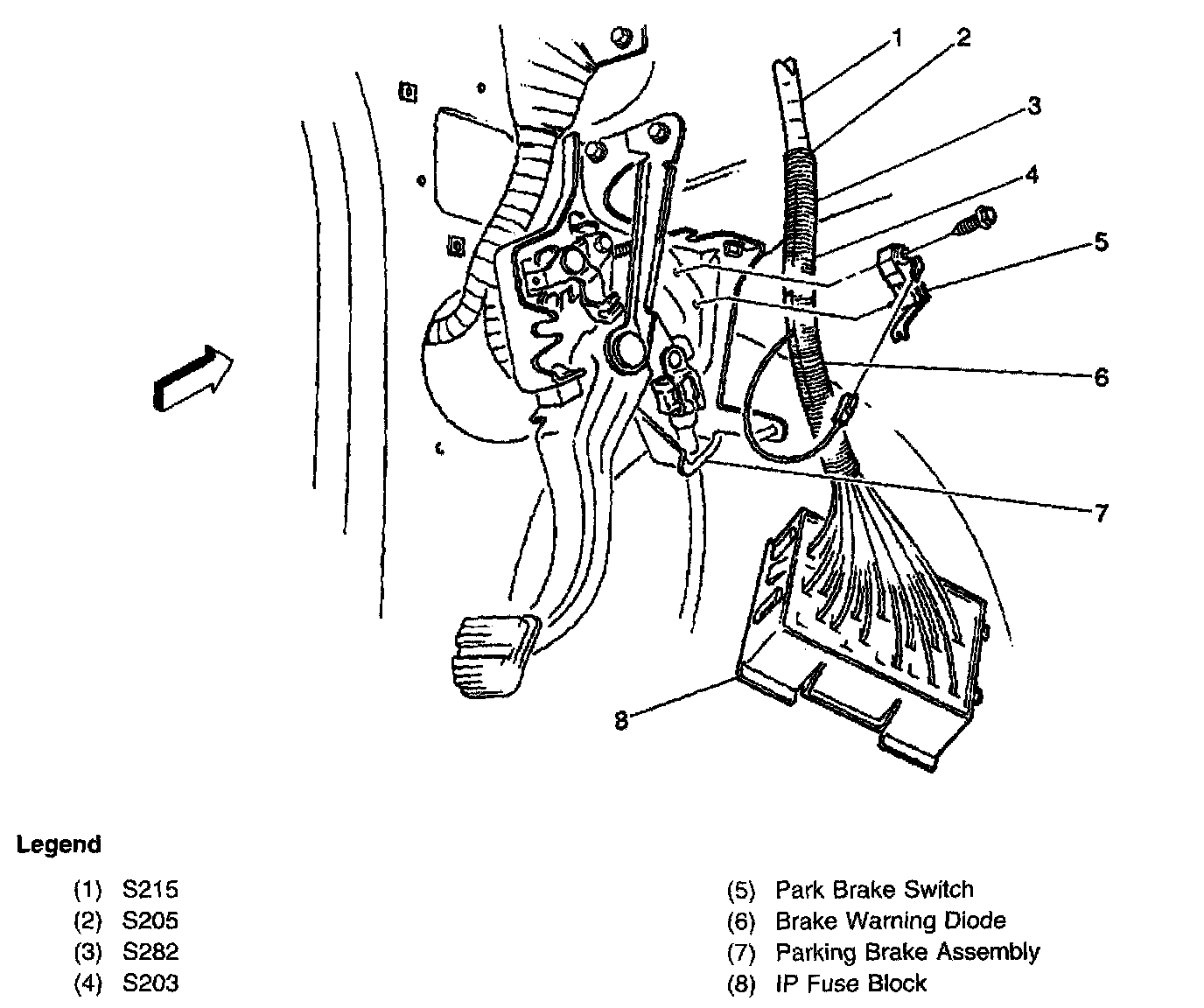

Under The Left Hand Of The Instrument Panel:

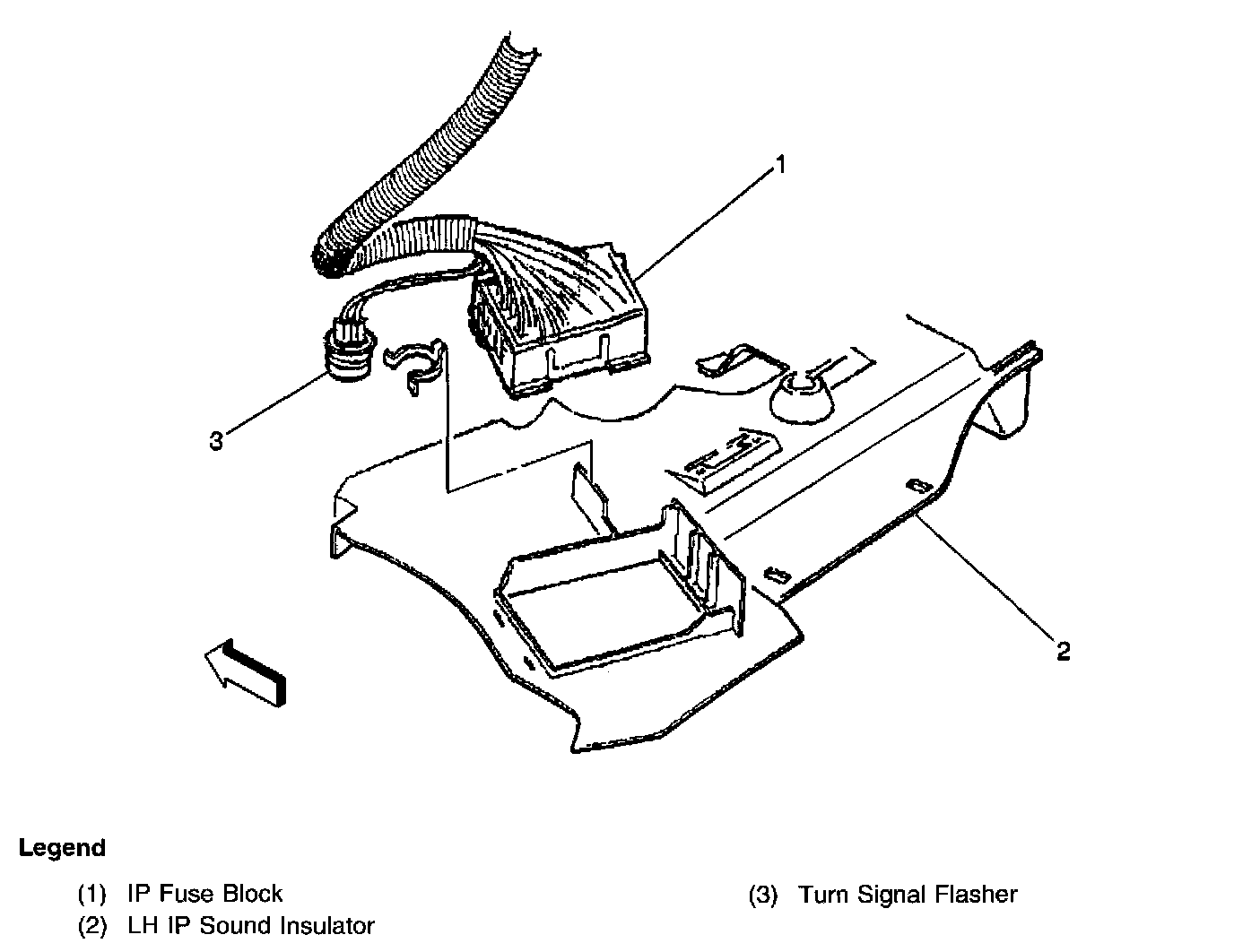

Passenger Compartment, Below The Left Corner Of The IP:
Under the left hand of the instrument panel, on the left hand instrument panel sound insulator
