A/T Inline Harness Connector End View
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

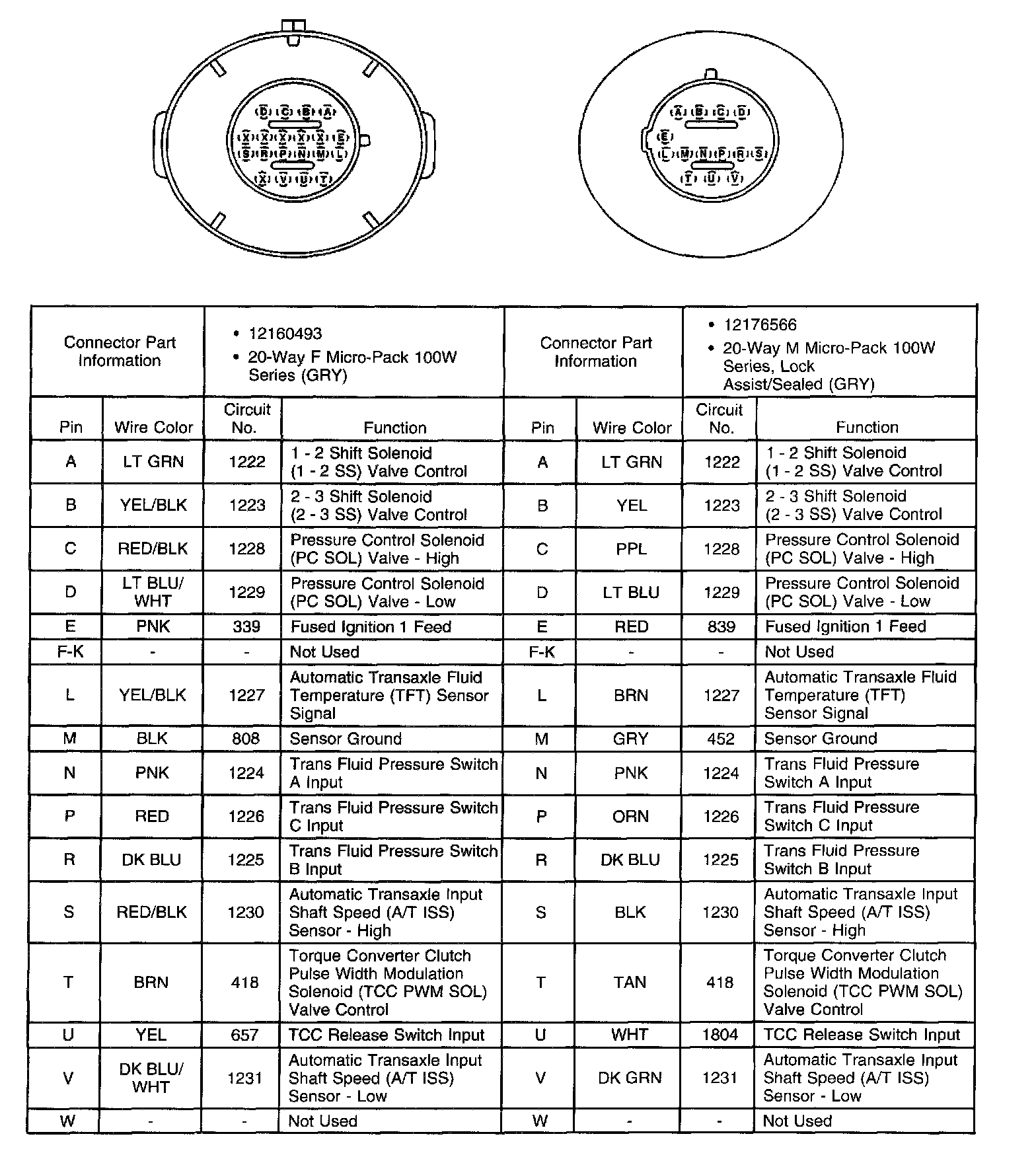

A/T Inline Harness Connector End View
