Compressor Control Valve Assembly Removal

TOOLS REQUIRED
^ J 5403 Snap Ring Pliers
^ J 39500 R-134a Air Conditioning Refrigerant Recovery, Recycling And Recharging System




1. Recover the refrigerant using the J 39500.
2. Remove the control valve retaining ring using the J 5403.

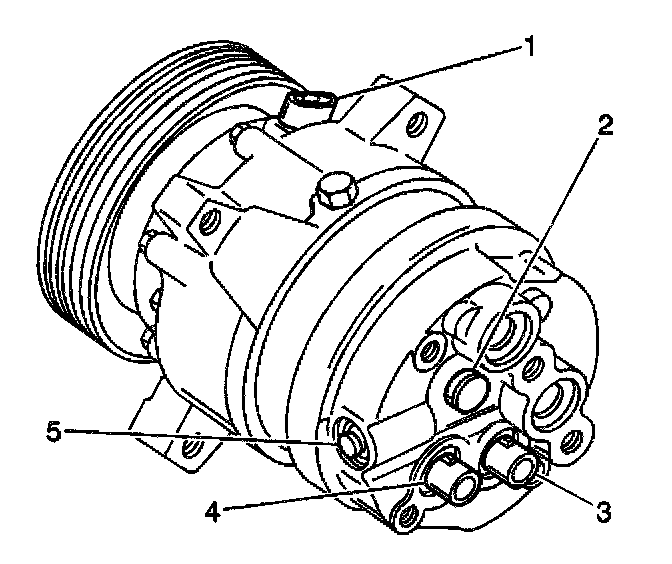

3. Remove the control valve assembly (5).
