Electronic Brake Control Module (EBCM)

Locations View:

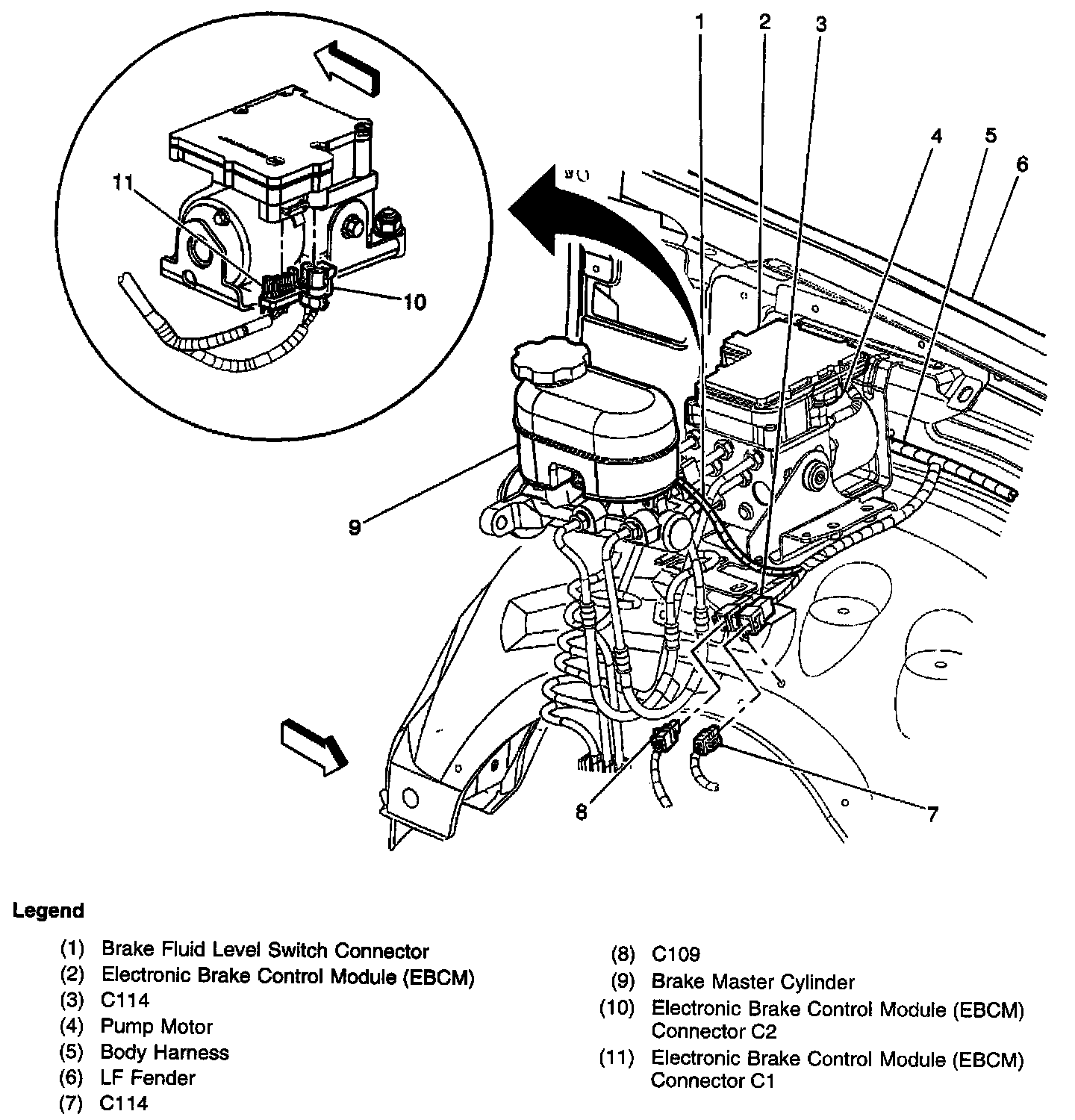

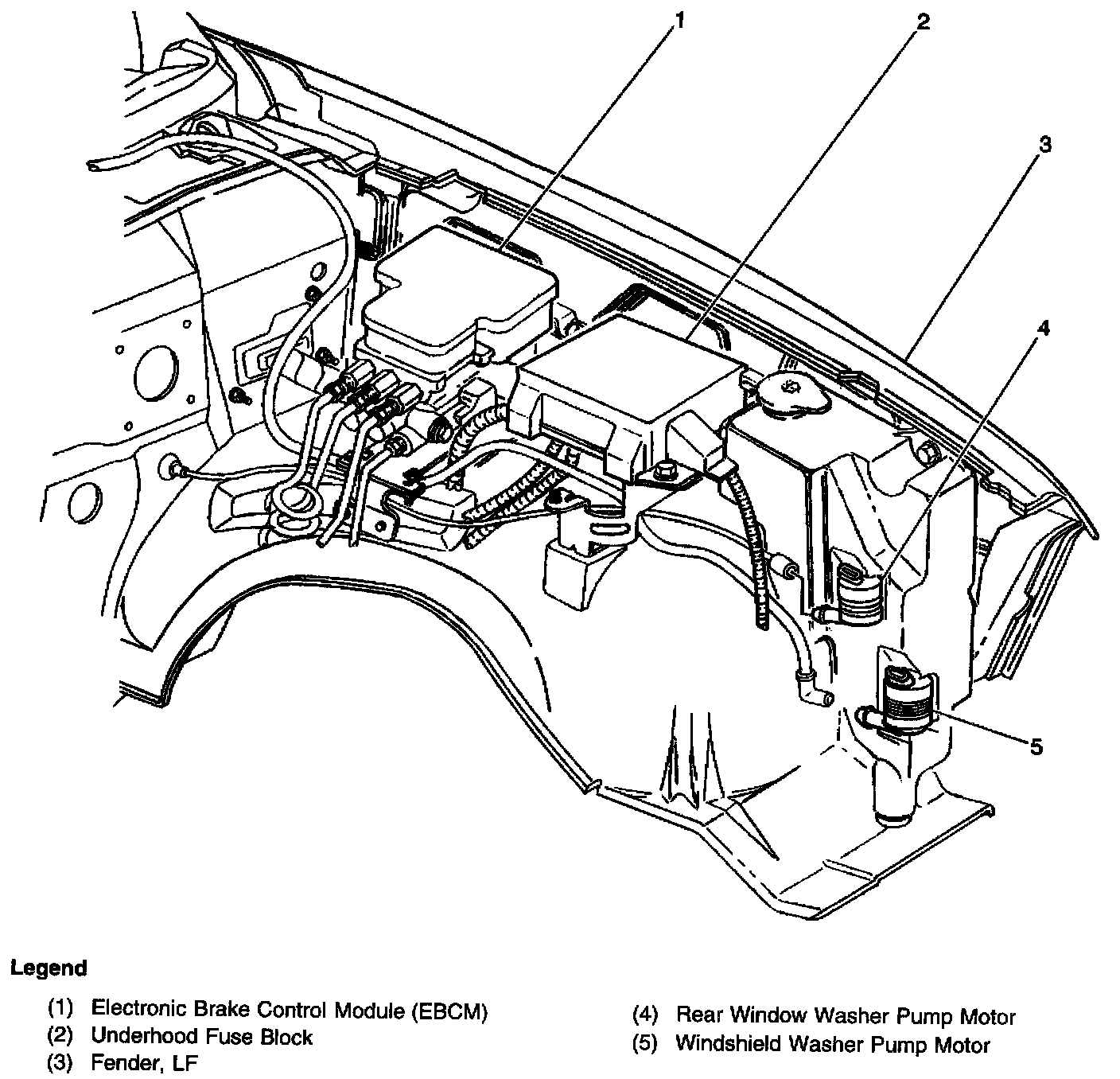

(325 Series) On the Brake Pressure Modulator Valve (BPMV), toward the rear of the LF fenderwell
