Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the overhead console in the vehicle
  2. Connect the electrical connector to the sunroof switch (1) and to the garage door transmitter.
  3. Position the tabs in the sunroof bezel.
  4. Press the console up to secure the retaining clips.

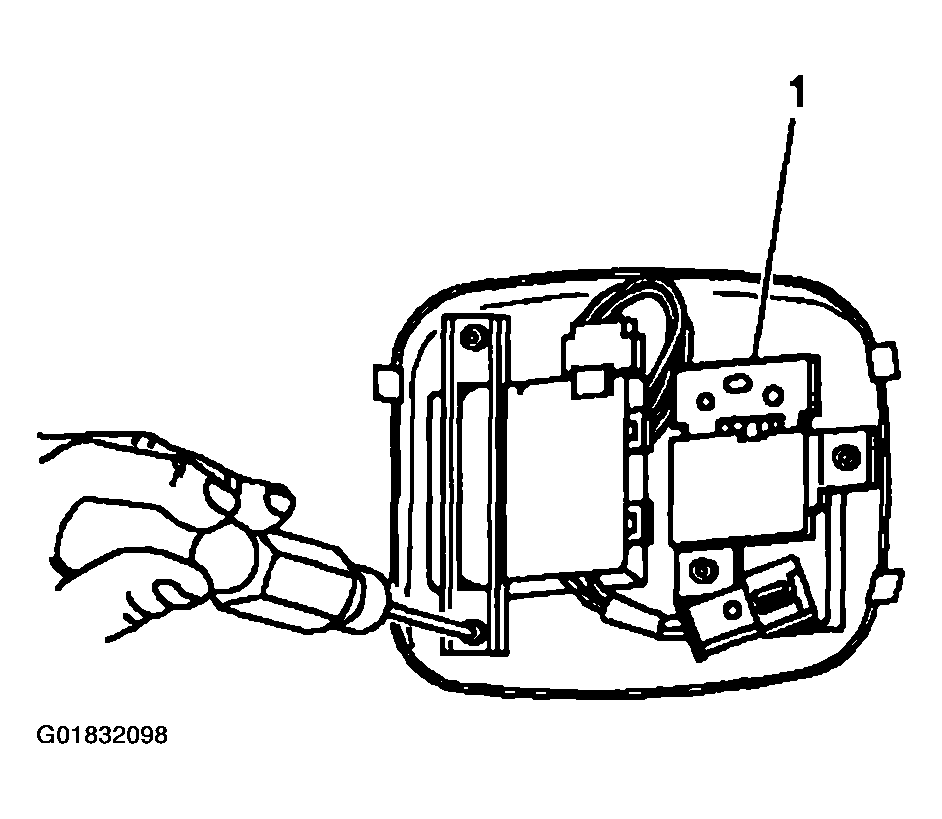

    Fig 1: Connecting Electrical Connector To Sunroof Switch & Overhead Console
    G01832098Courtesy of GENERAL MOTORS CORP.
