Stationary Windows Component Views

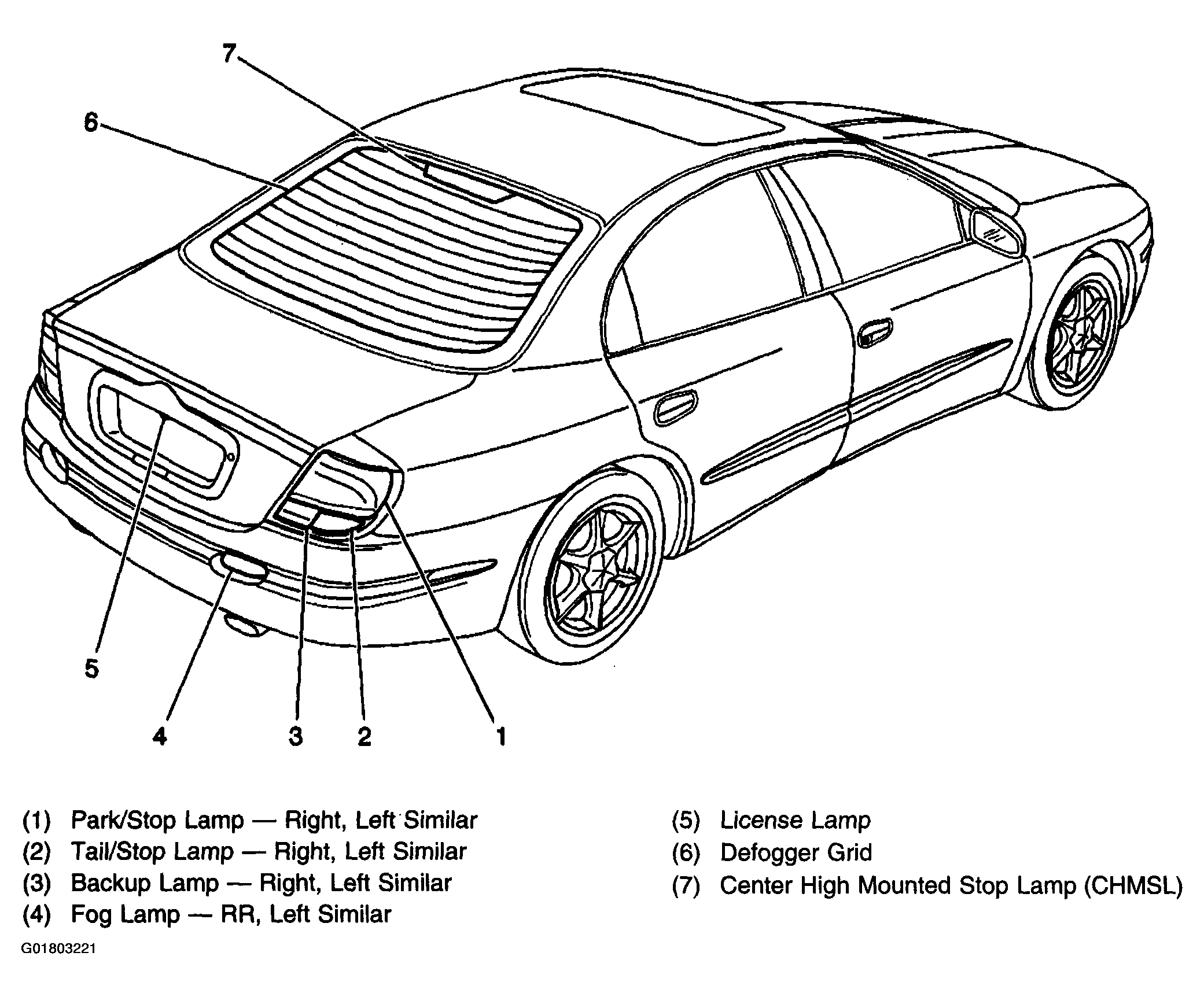

Fig 1: Rear Lighting Component Views
G01803221Courtesy of GENERAL MOTORS CORP.

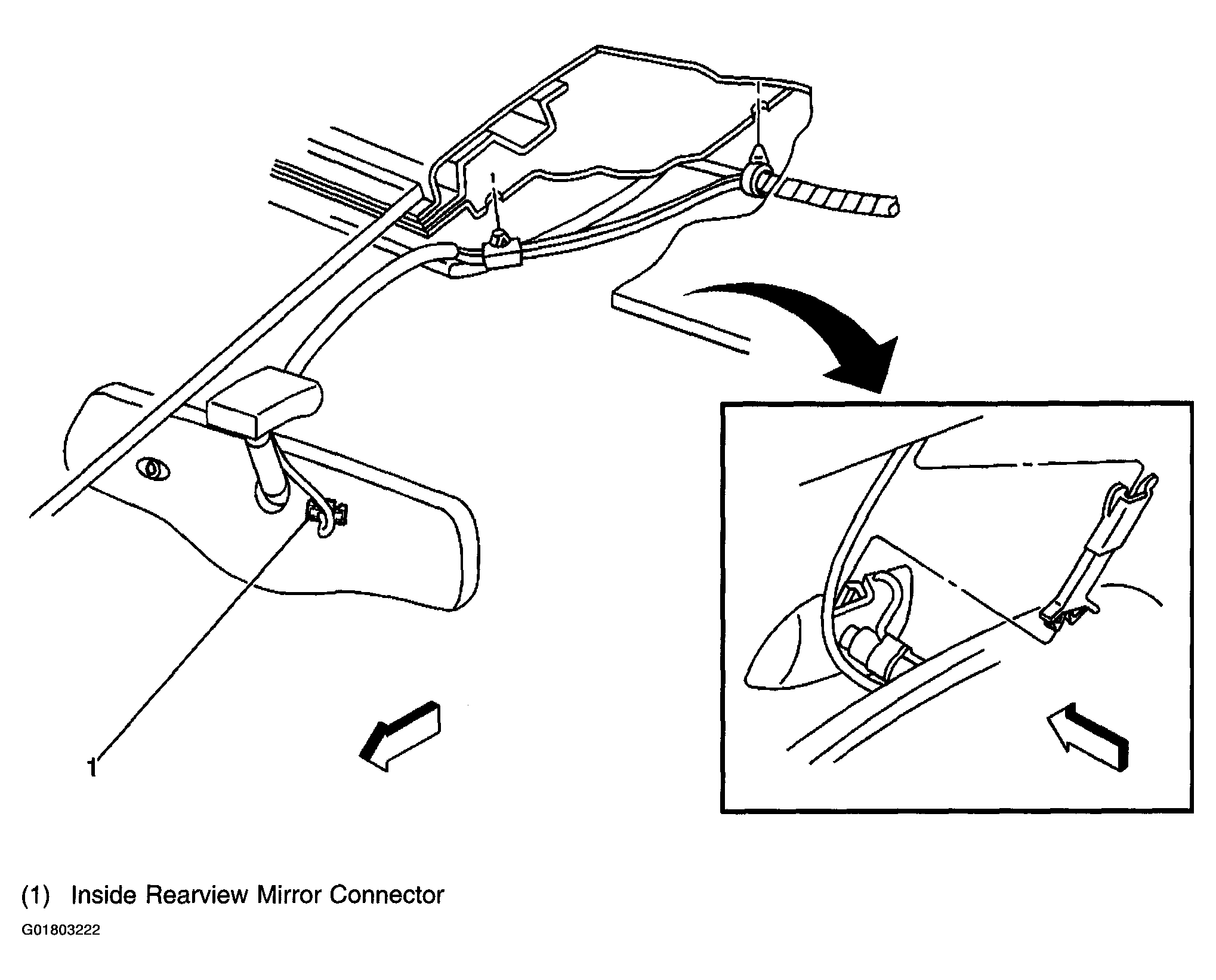

Fig 2: Inside Rearview Mirror Component Views
G01803222Courtesy of GENERAL MOTORS CORP.

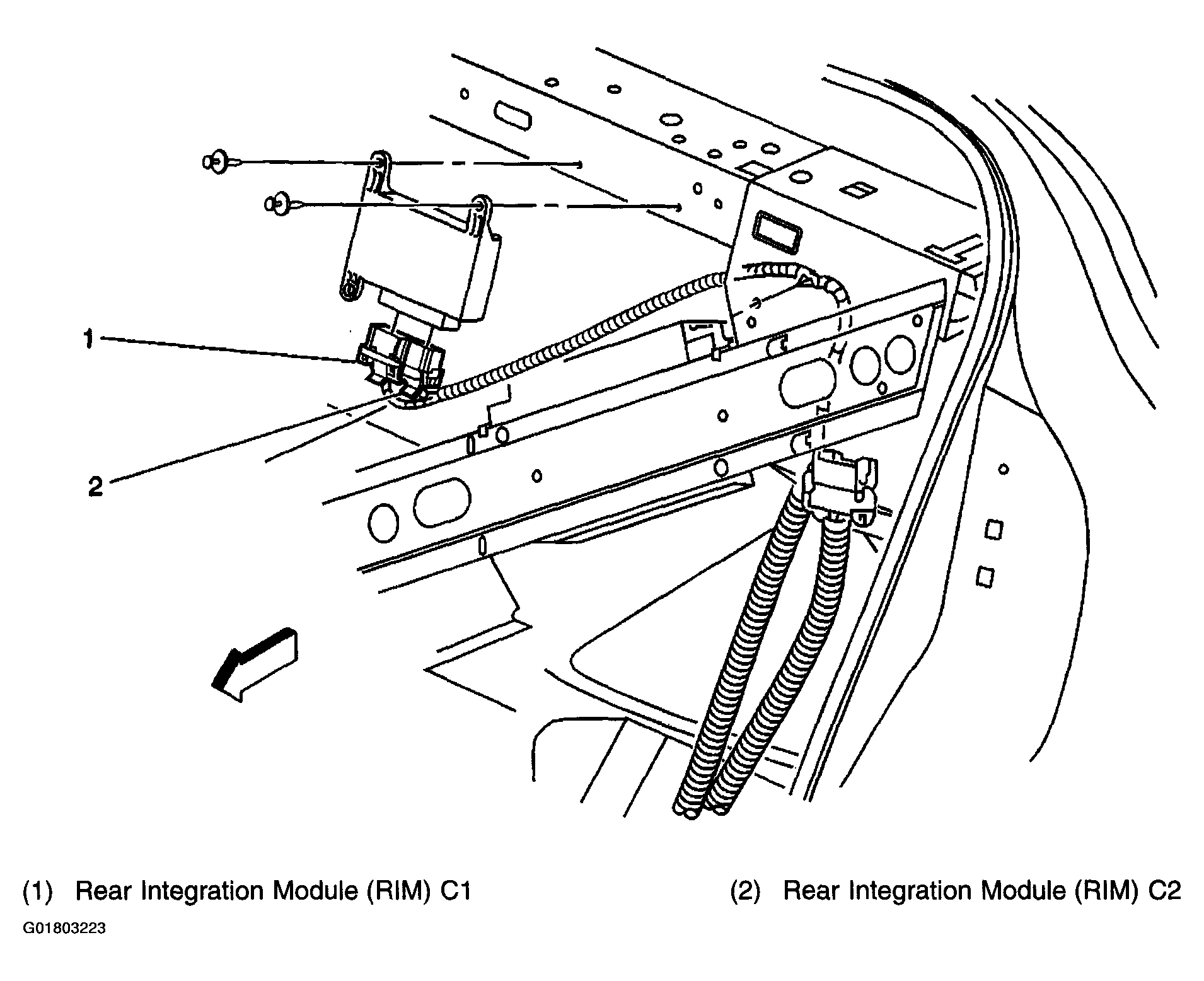

Fig 3: Rear Integration Module (RIM) Component Views
G01803223Courtesy of GENERAL MOTORS CORP.
