COMPONENT LOCATIONS

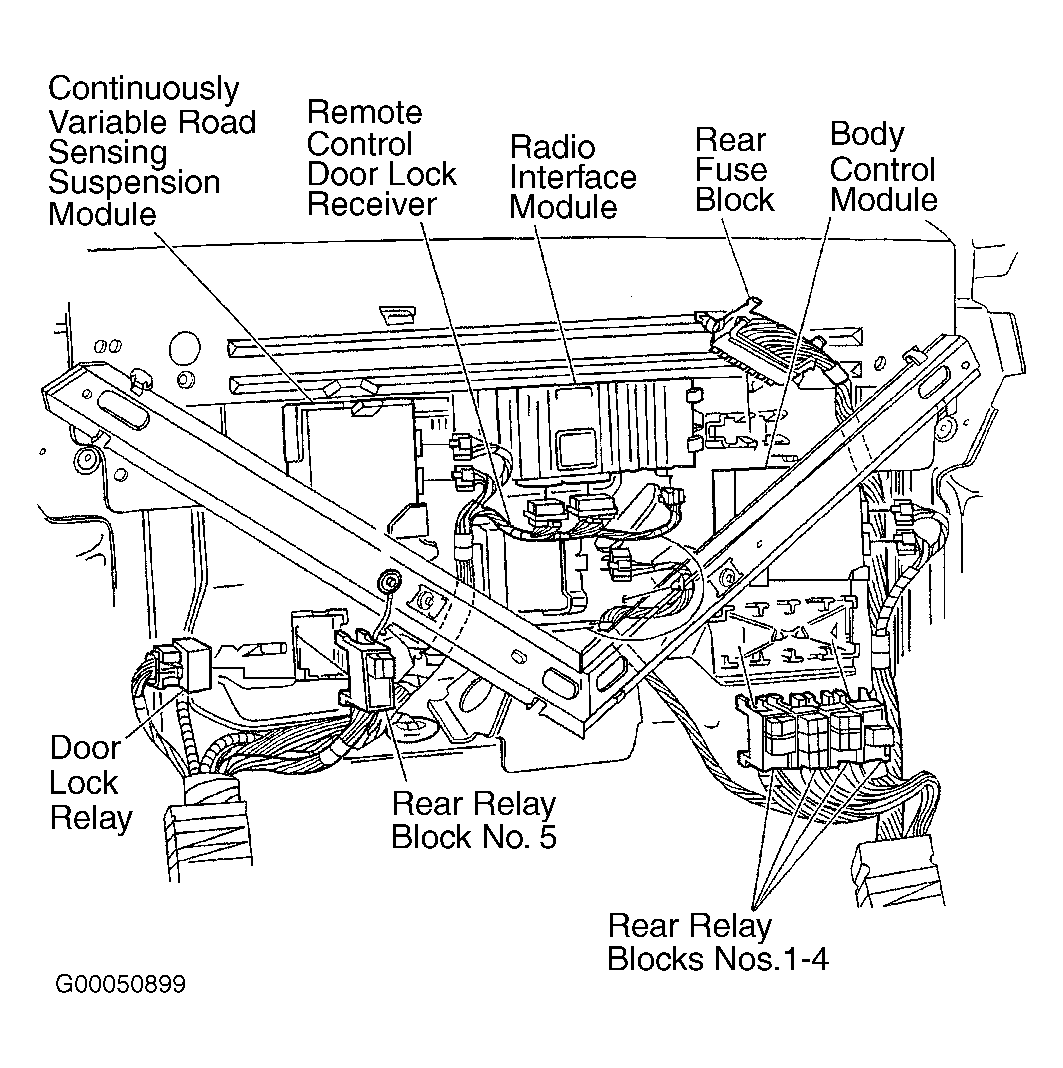

| Component | Location |
|---|---|
| Accessory Relay | In Underhood Relay Block |
| Body Control Module | Behind Rear Seat In Passenger Compartment |
| Controlled Power Relay | In Rear Relay Block No. 2 |
| Courtesy Relay | In Rear Relay Block No. 2 |
| Data Link Connector | Below Left Side Of Instrument Panel, On Hood Release Bracket |
| Driver's Information Center Switch | Center Of Instrument Panel, Near Radio |
| Headlight Relay | In Underhood Relay Block |
| Hi/Lo Beam Relay | In Underhood Relay Block |
| Inadvertent Power Relay | Left Side Of Engine Compartment |
| Left & Right Underhood Fuse Blocks | Left Side Of Engine Compartment |
| Park Relay | In Rear Relay Block No. 5 |
| Parking Light Relay | In Rear Relay Block No. 2 |
| Powertrain Control Module | On Left Front Corner Of Engine Compartment, Below Air Cleaner Housing |
| Rear Compartment Lid Release Solenoid | On Rear Compartment Lid Latch |
| Rear Compartment Lid Tamper Switch | On Rear Compartment Lid Latch |
| Retained Accessory Power Relay | On Left Front Passenger Compartment, Taped In Body Harness |
| Remote Control Door Lock Receiver | Behind Rear Seat In Passenger Compartment |
| Reverse Light Relay | In Rear Relay Block No. 4 |
| Rear Relay Block | Behind Rear Seat In Passenger Compartment |
| Sensing & Diagnostic Module | On Left Side Of Passenger Compartment, Below Driver's Seat |
| Theft Deterrent Relay | Left Side Of Engine Compartment, Near Underhood Relay Block |
| Underhood Relay Block | Left Side Of Engine Compartment |
