Stationary Windows Connector End Views

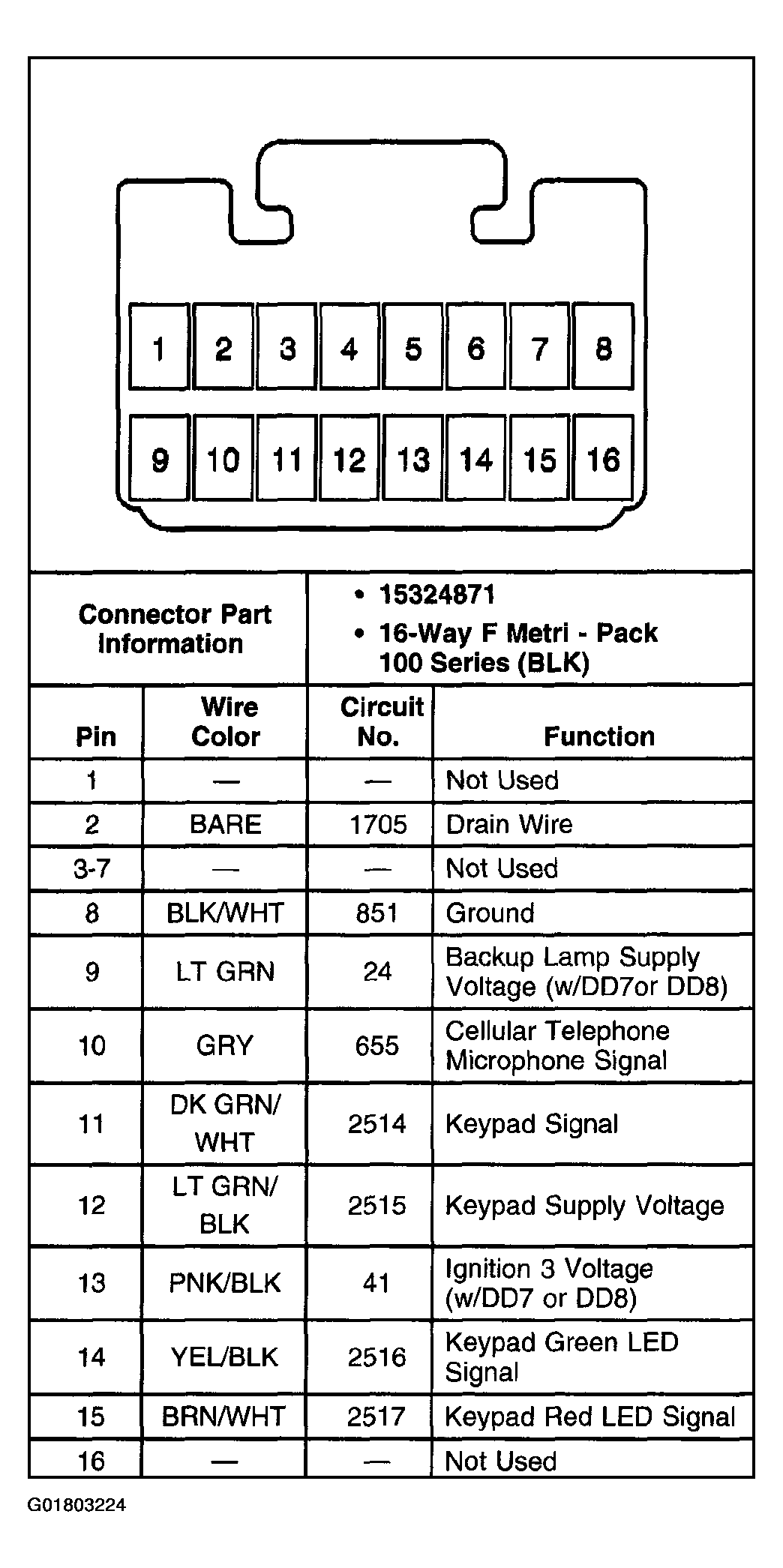

Fig 1: Inside Rearview Mirror Connector End Views
G01803224Courtesy of GENERAL MOTORS CORP.

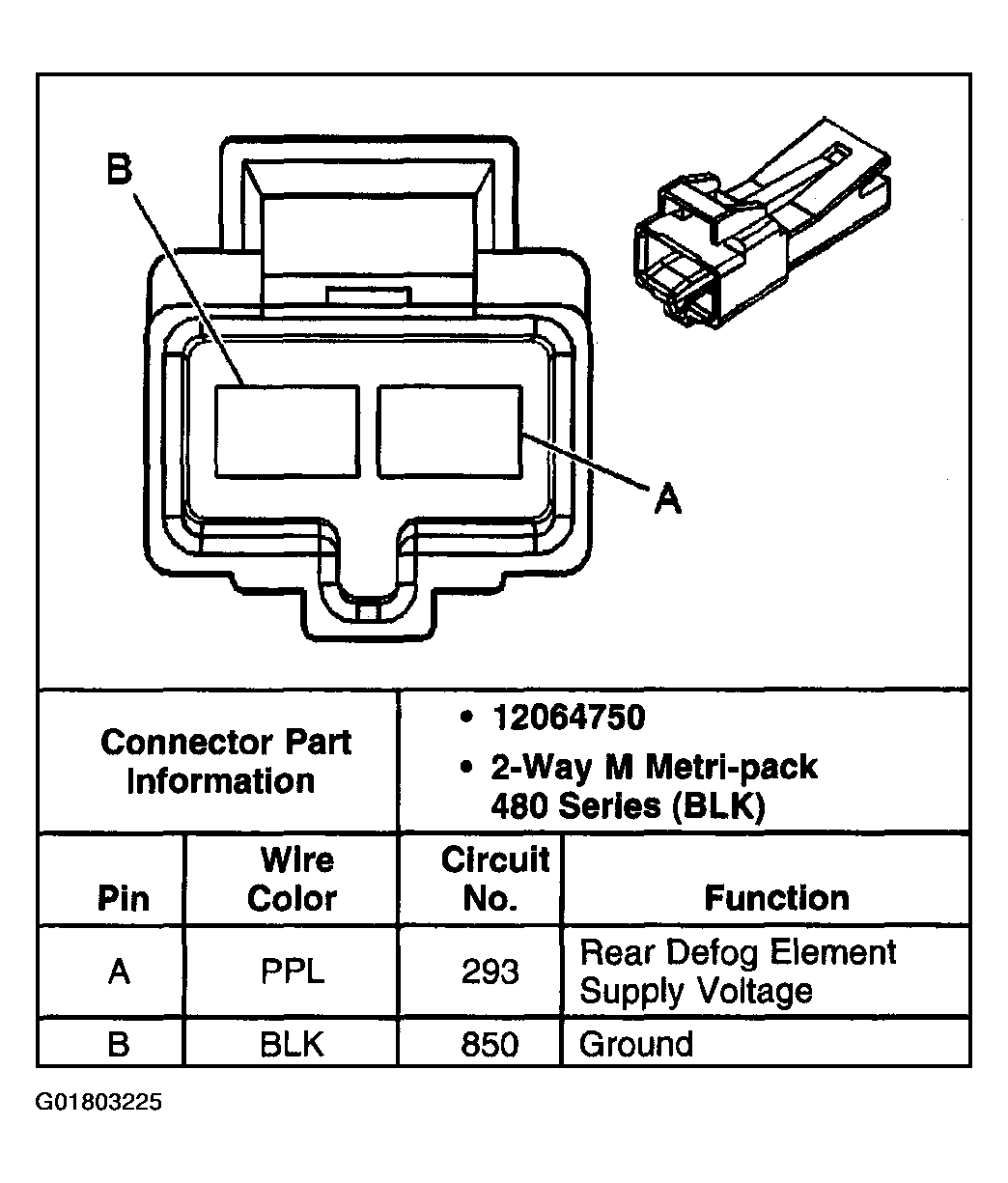

Fig 2: Rear Window Defogger Connector End Views - Driver
G01803225Courtesy of GENERAL MOTORS CORP.

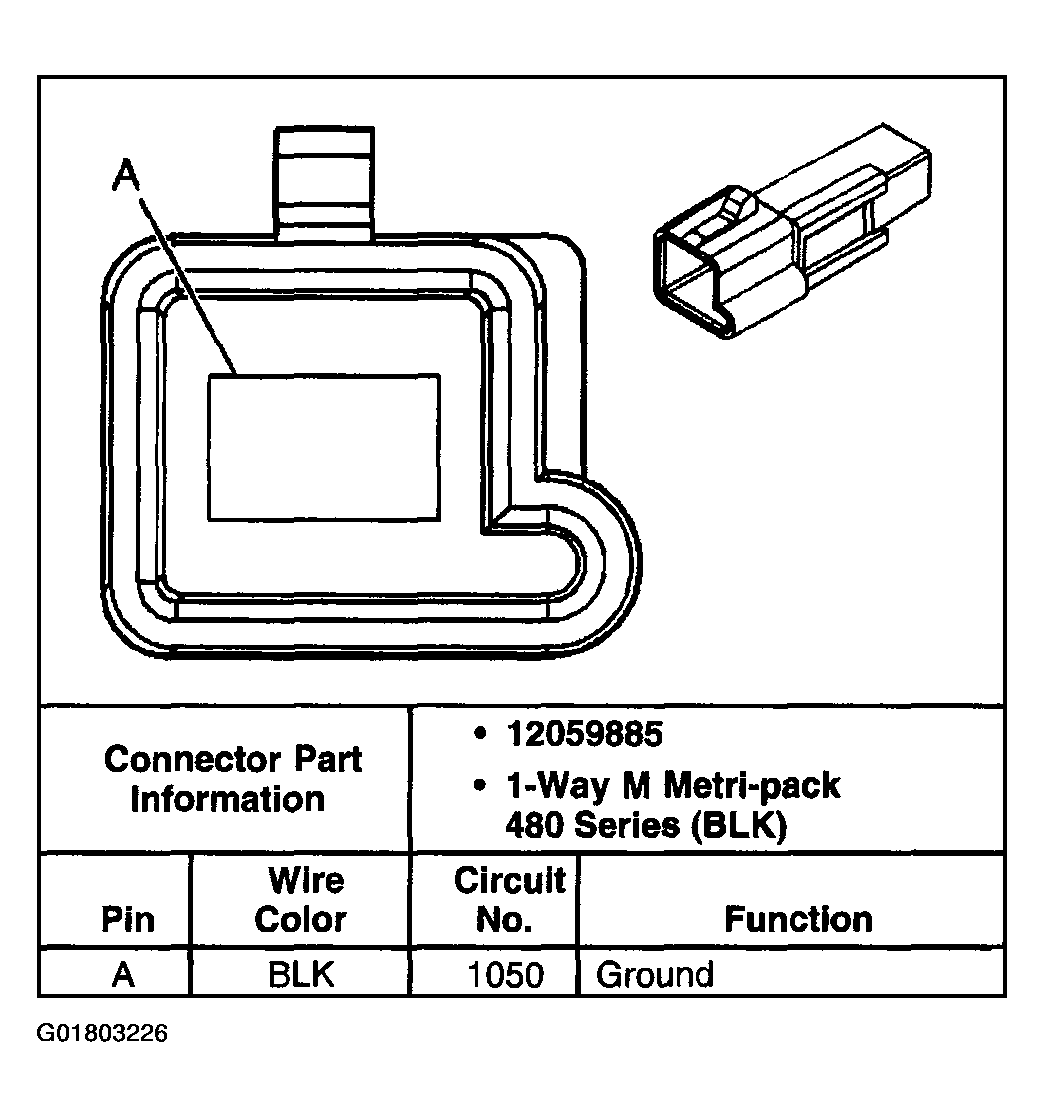

Fig 3: Rear Window Defogger Connector End Views - Passenger
G01803226Courtesy of GENERAL MOTORS CORP.
