Rear Integration Module (RIM)

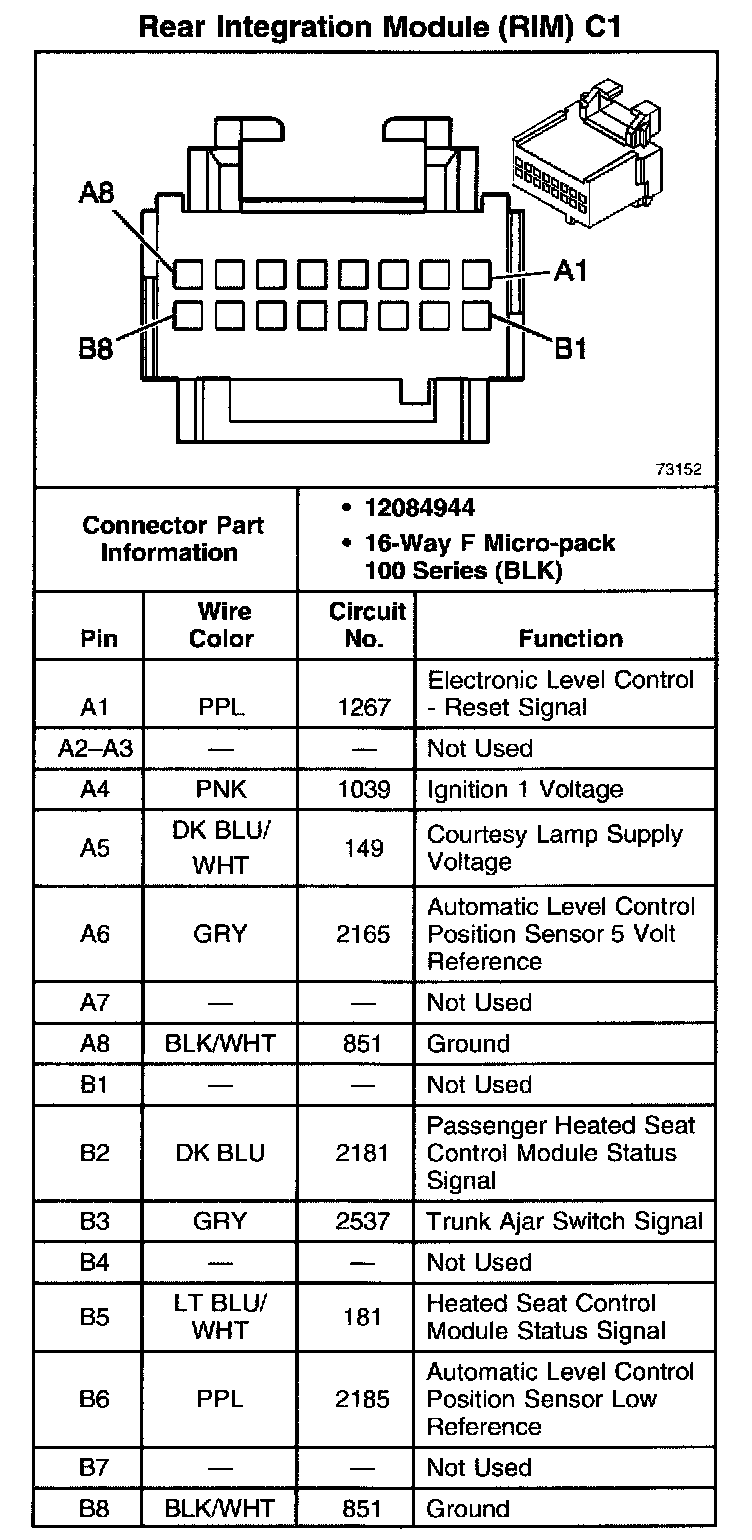

Rear Integration Module (RIM) C1:

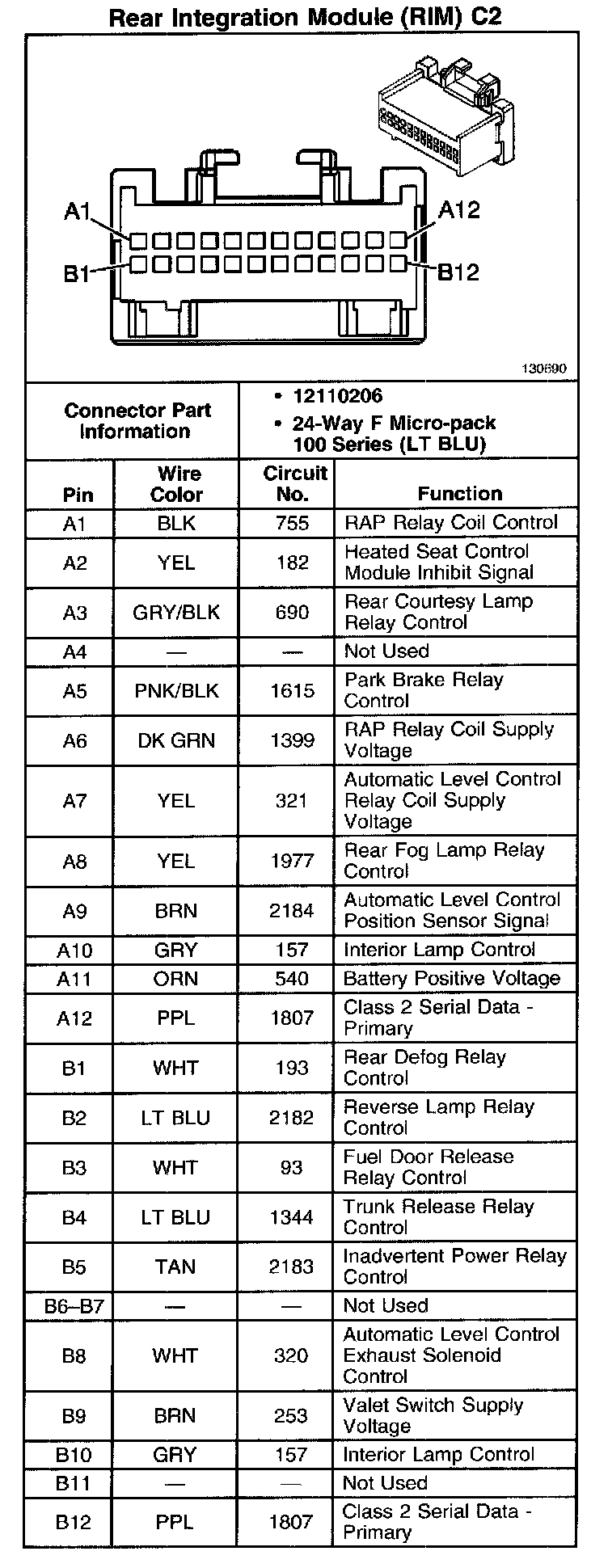

Rear Integration Module (RIM) C2 Part 1:
