Scan Tool Data List - Instrument Panel Module (IPM)

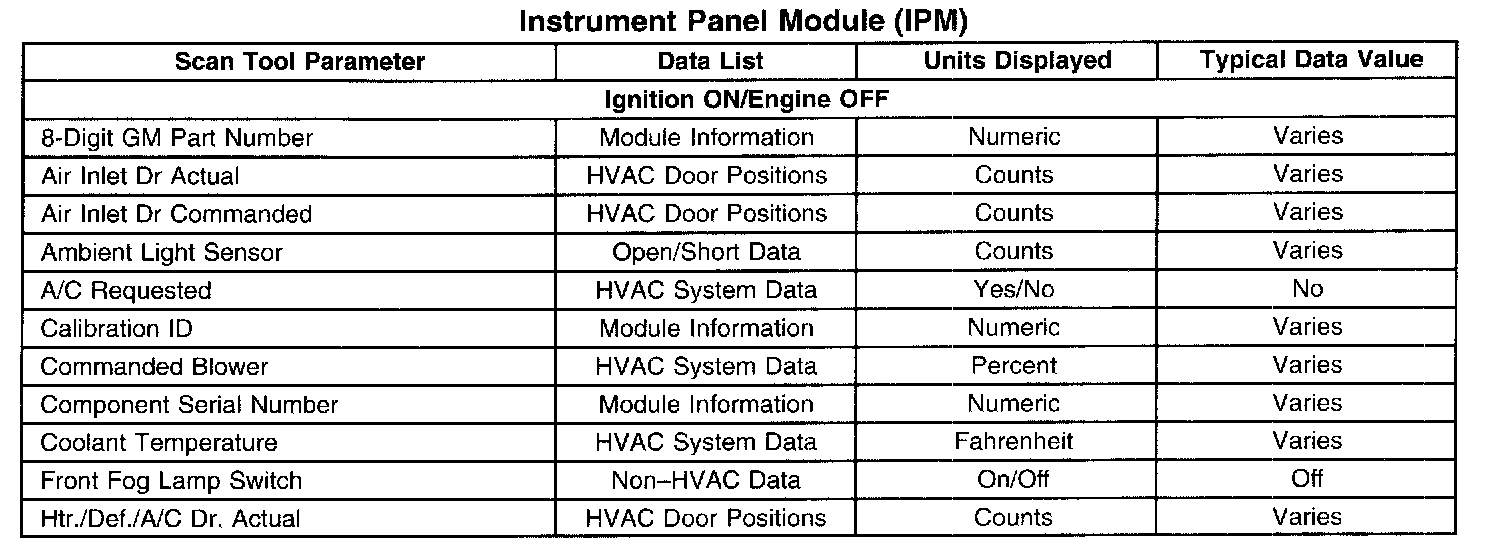

Instrument Panel Module (IPM) Part 1:

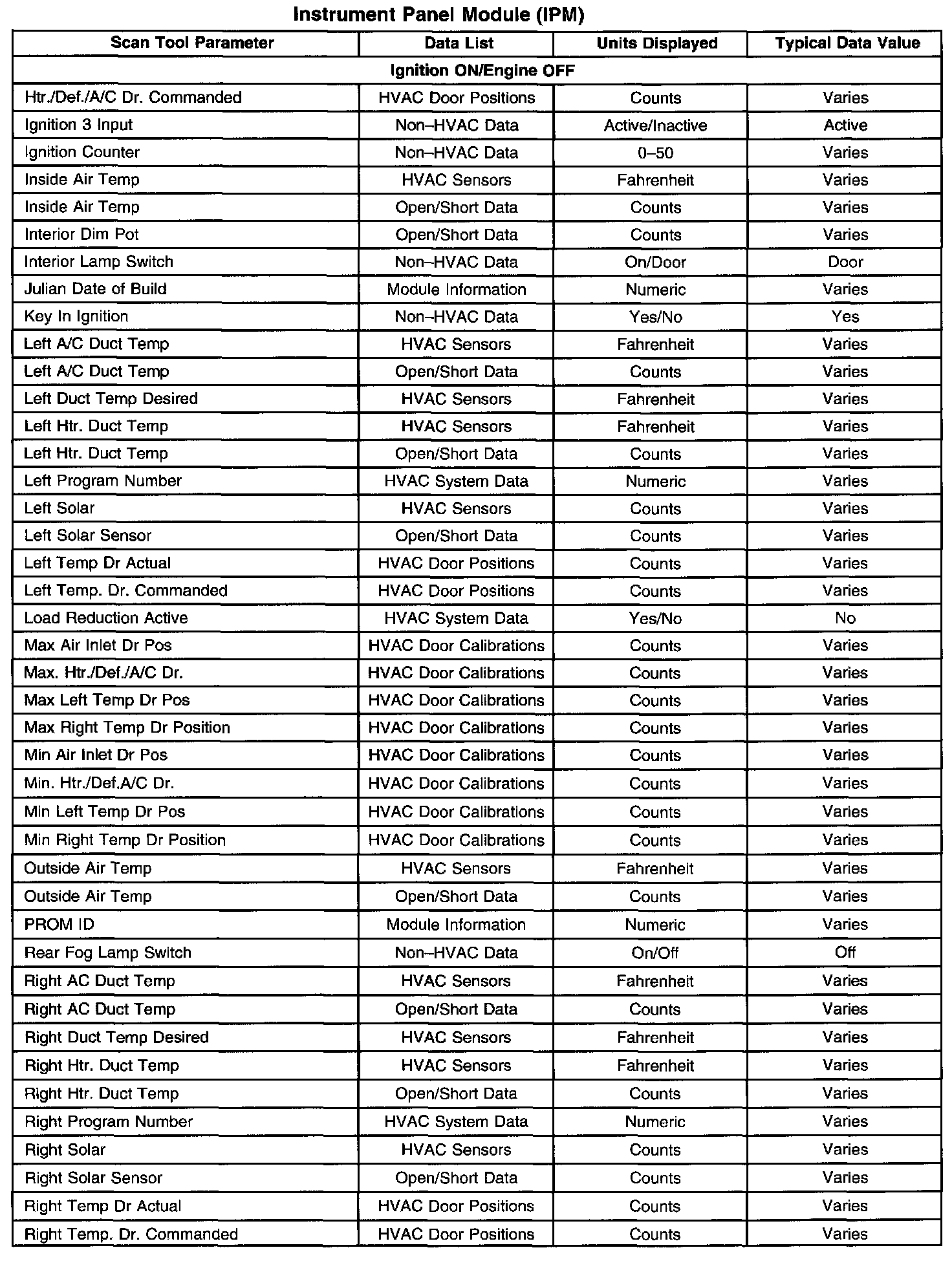

Instrument Panel Module (IPM) Part 2:



Instrument Panel Module (IPM) Part 3:
