Vehicle Communication Integration Module (VCIM)

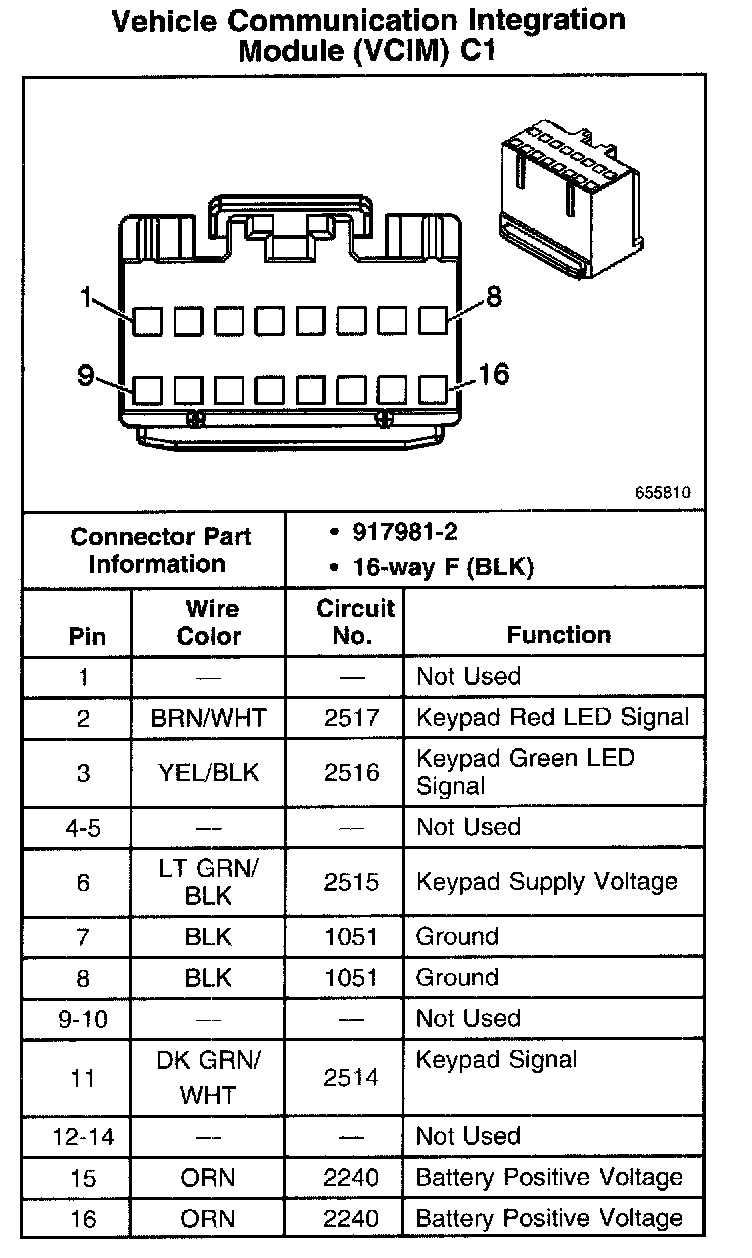

Vehicle Communication Integration Module (VCIM) C1:

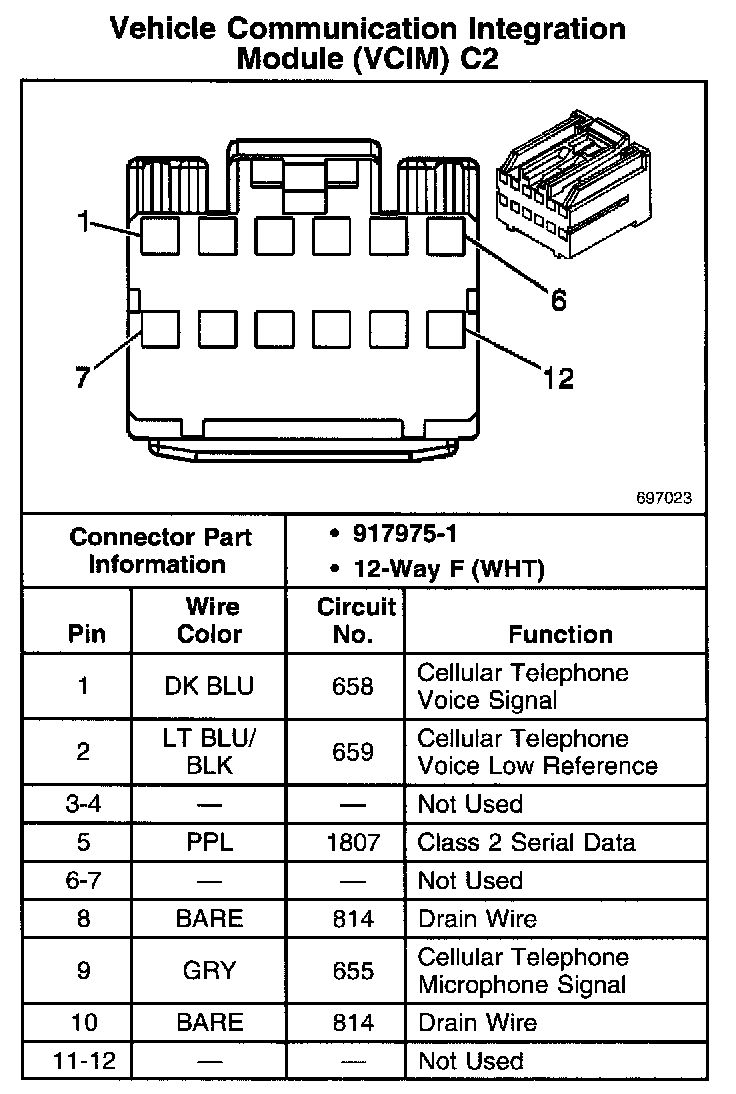

Vehicle Communication Integration Module (VCIM) C2:
