Automatic Transmission/Transaxle
Disassembled Views

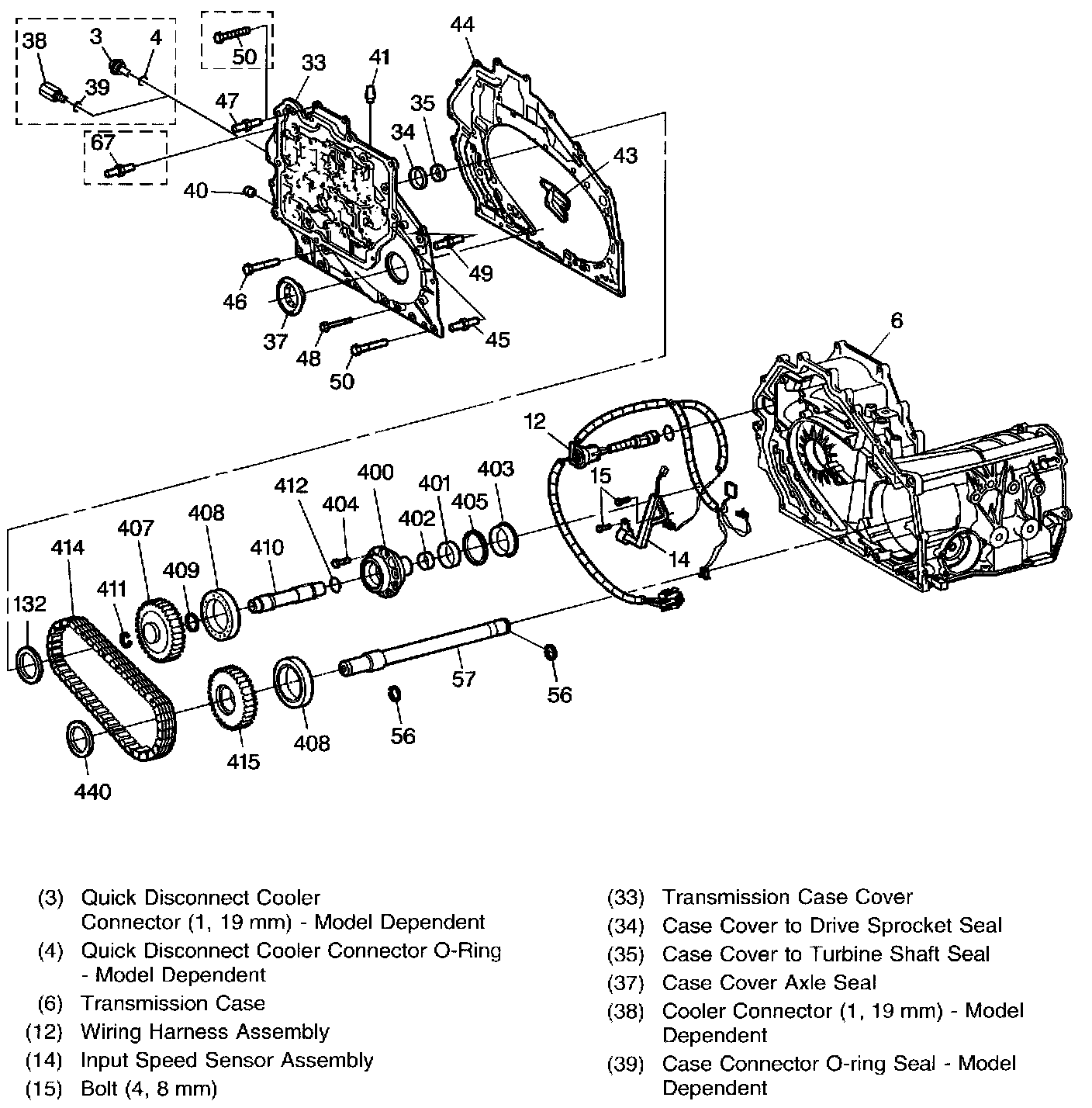

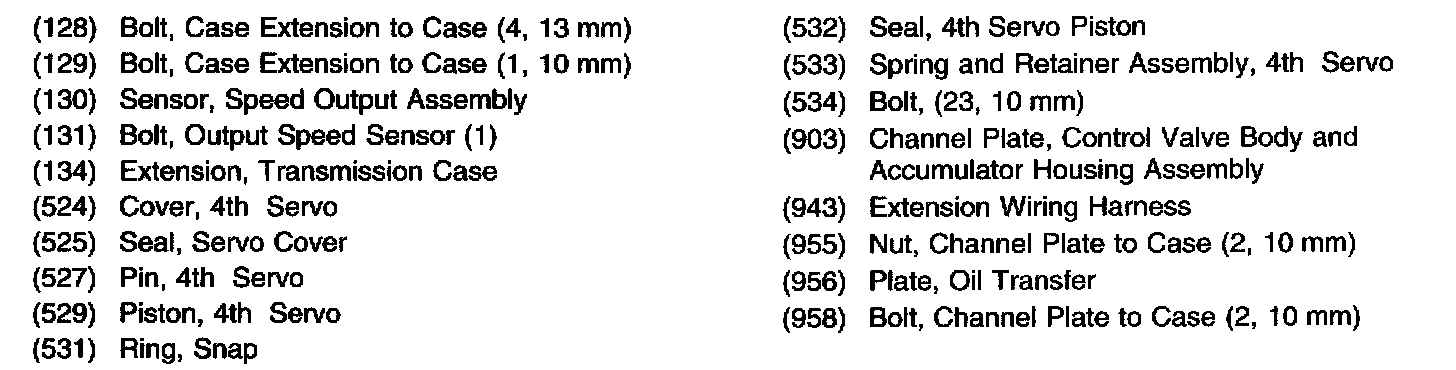

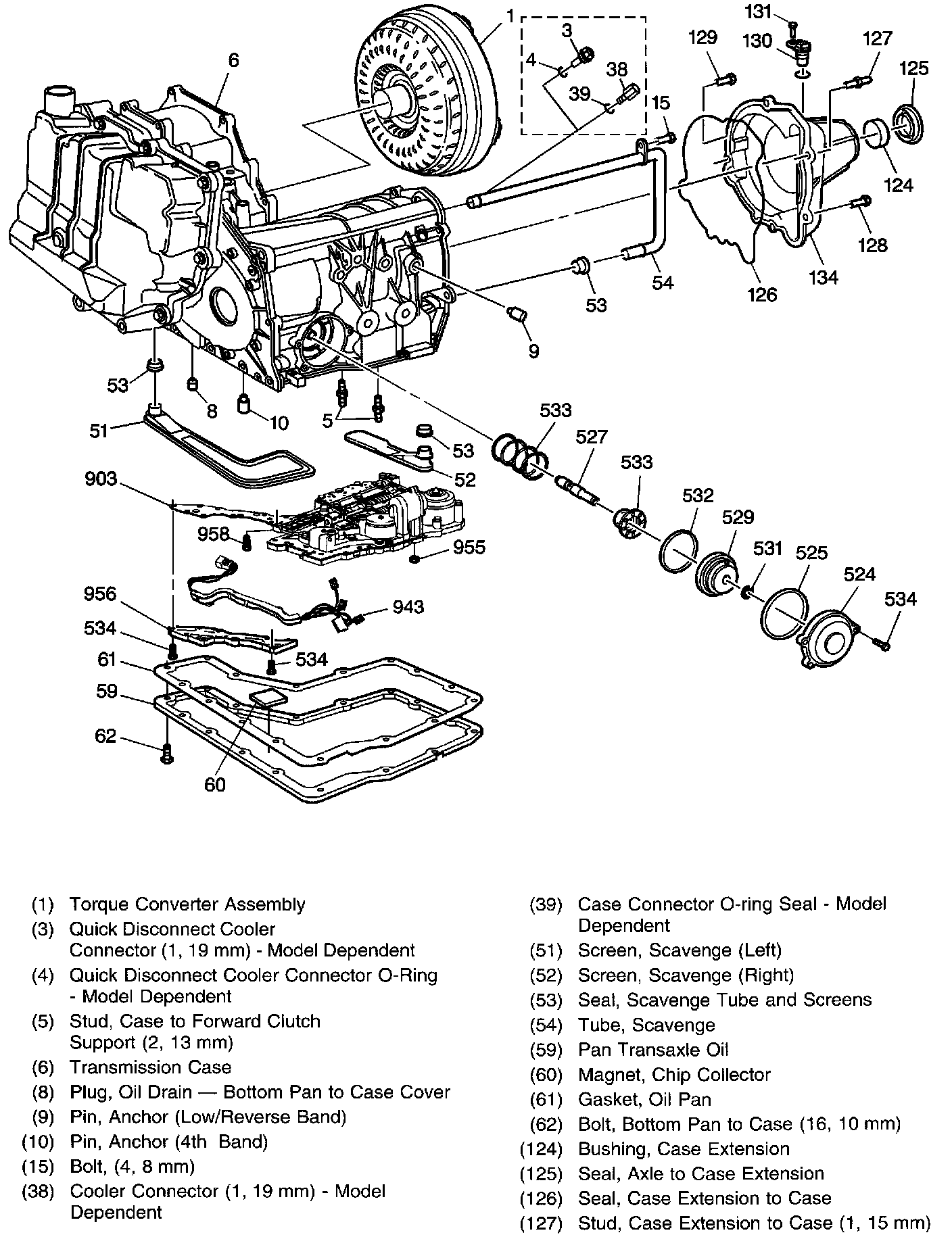

Case and Associated Parts (1 of 3)

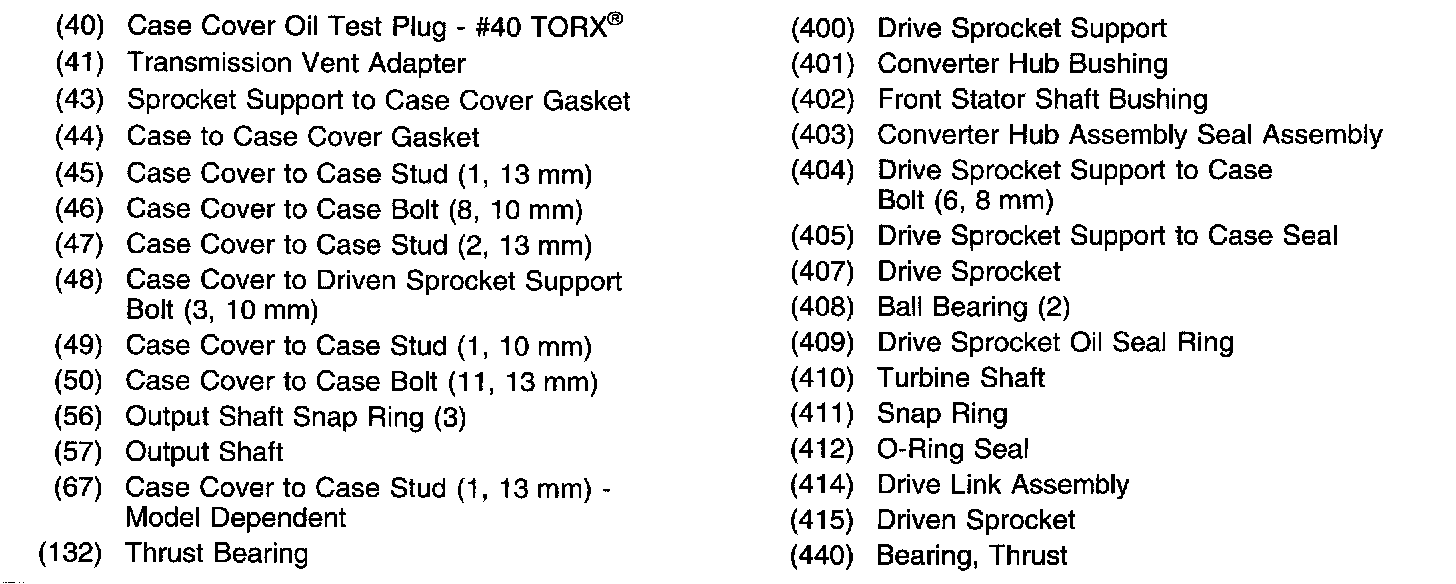

Case and Associated Parts (2 of 3)
Case and Associated Parts (3 of 3)

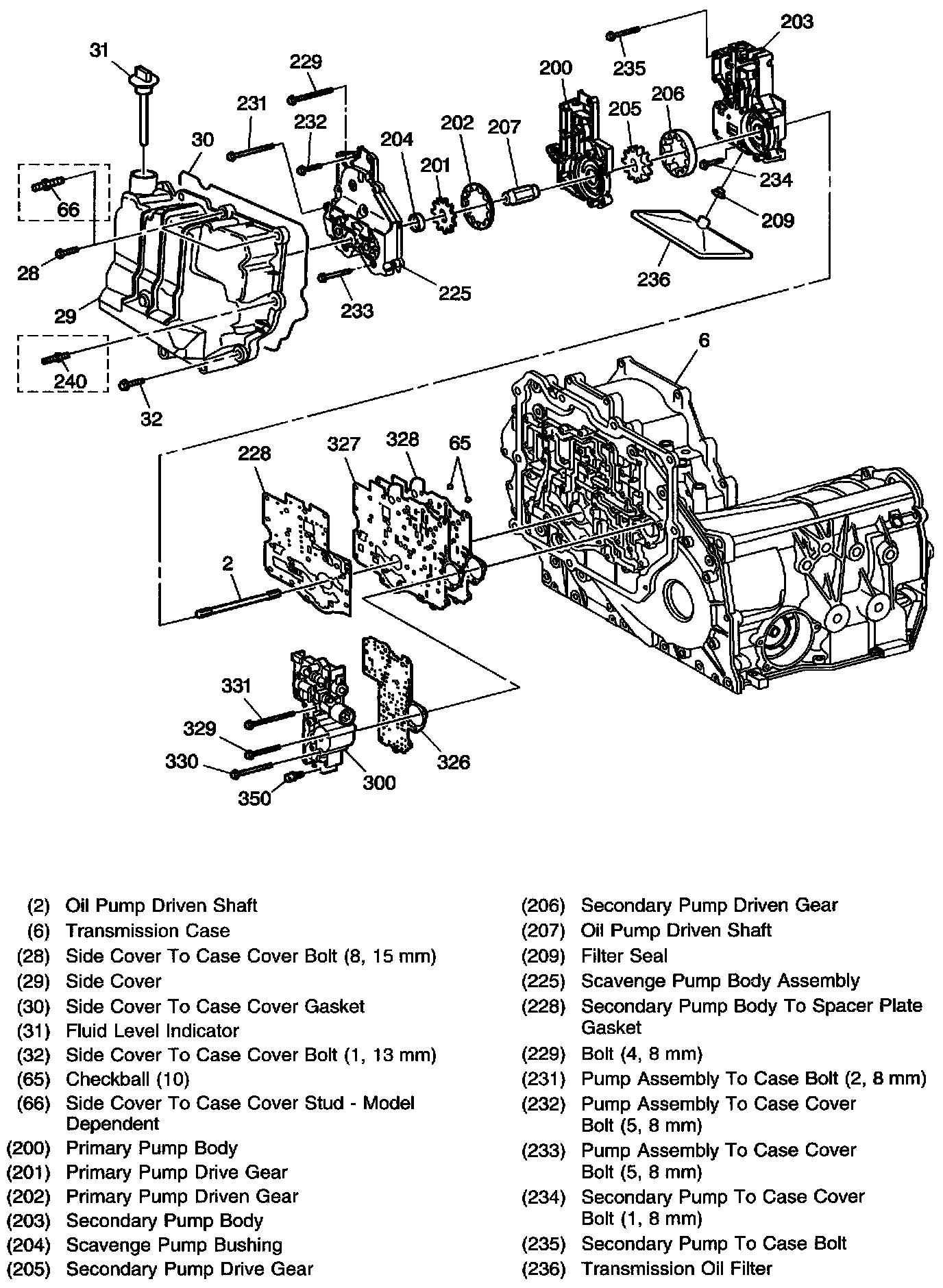

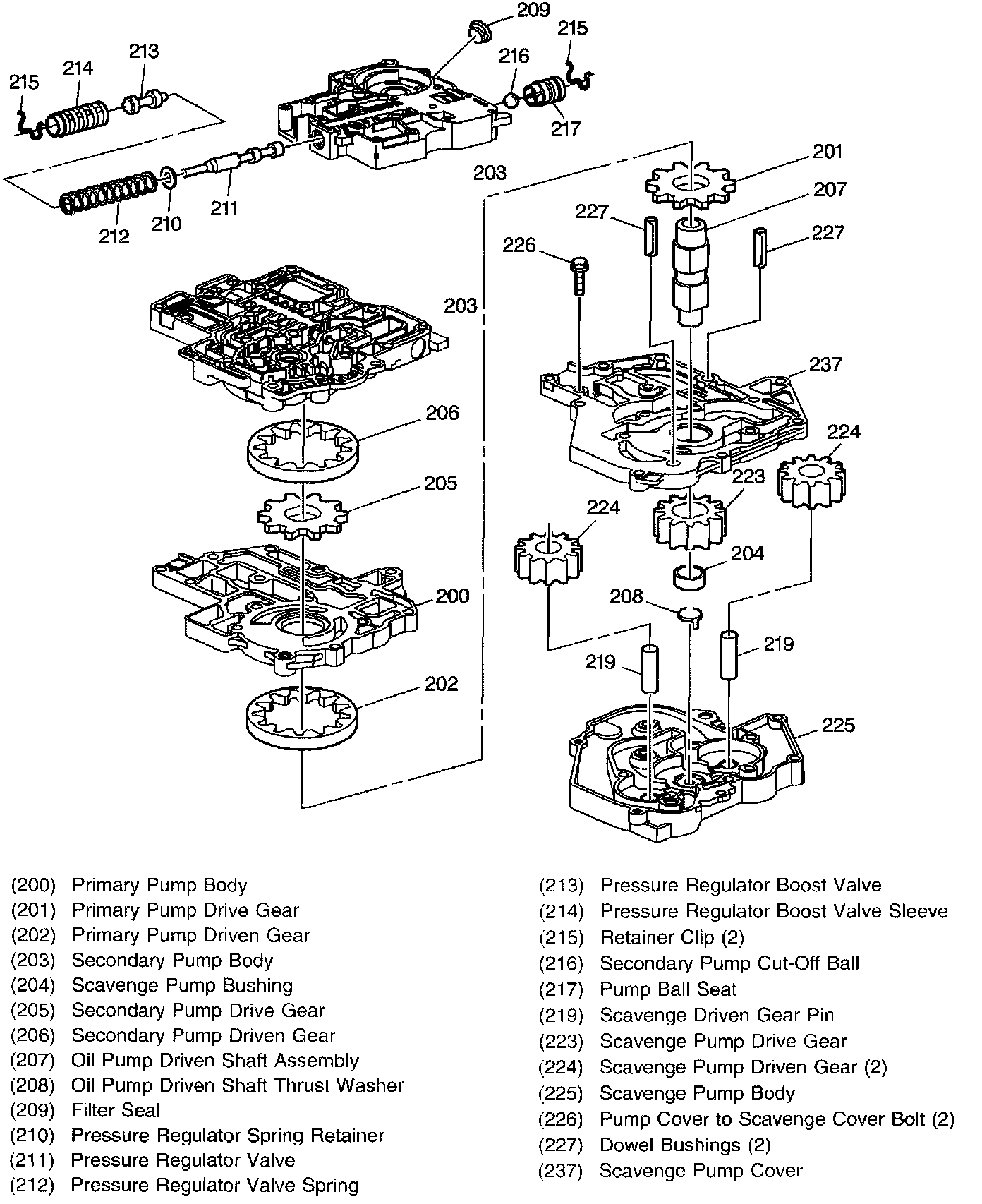

Scavenge, Primary and Secondary Fluid Pump Assemblies

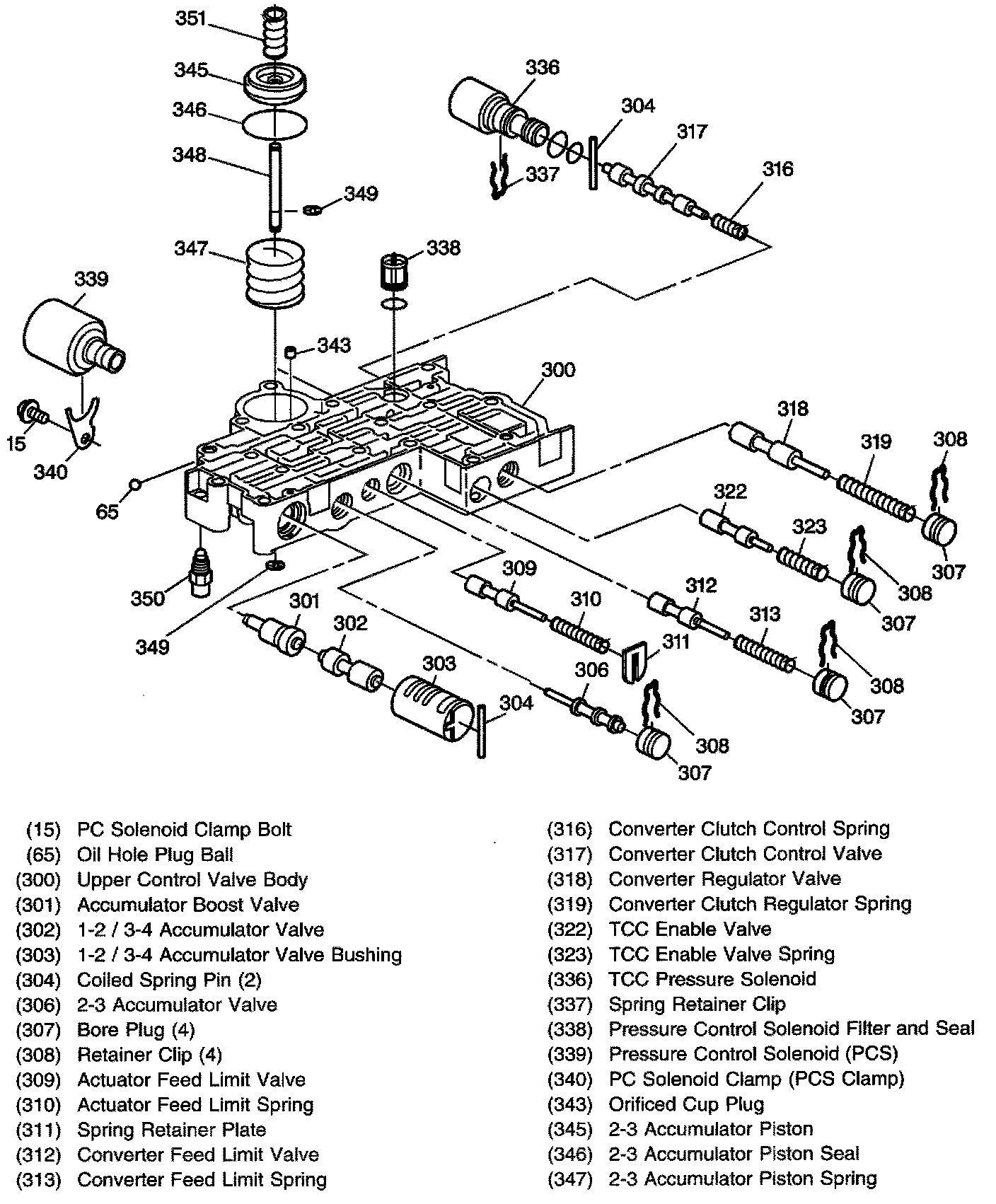

Upper Control Valve Body Assembly

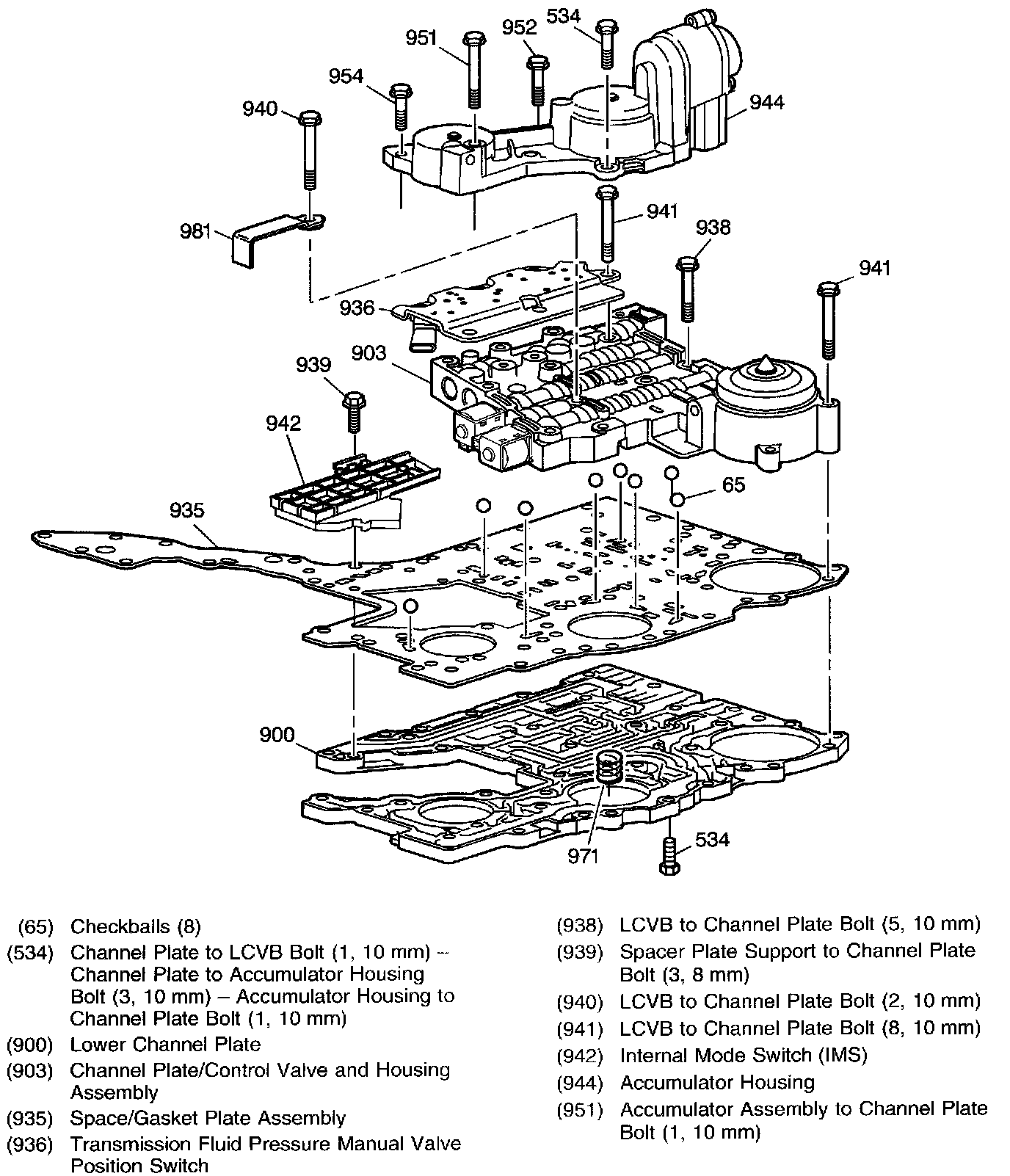

Lower Channel Plate, Control Valve Body and Accumulator Housing Assembly

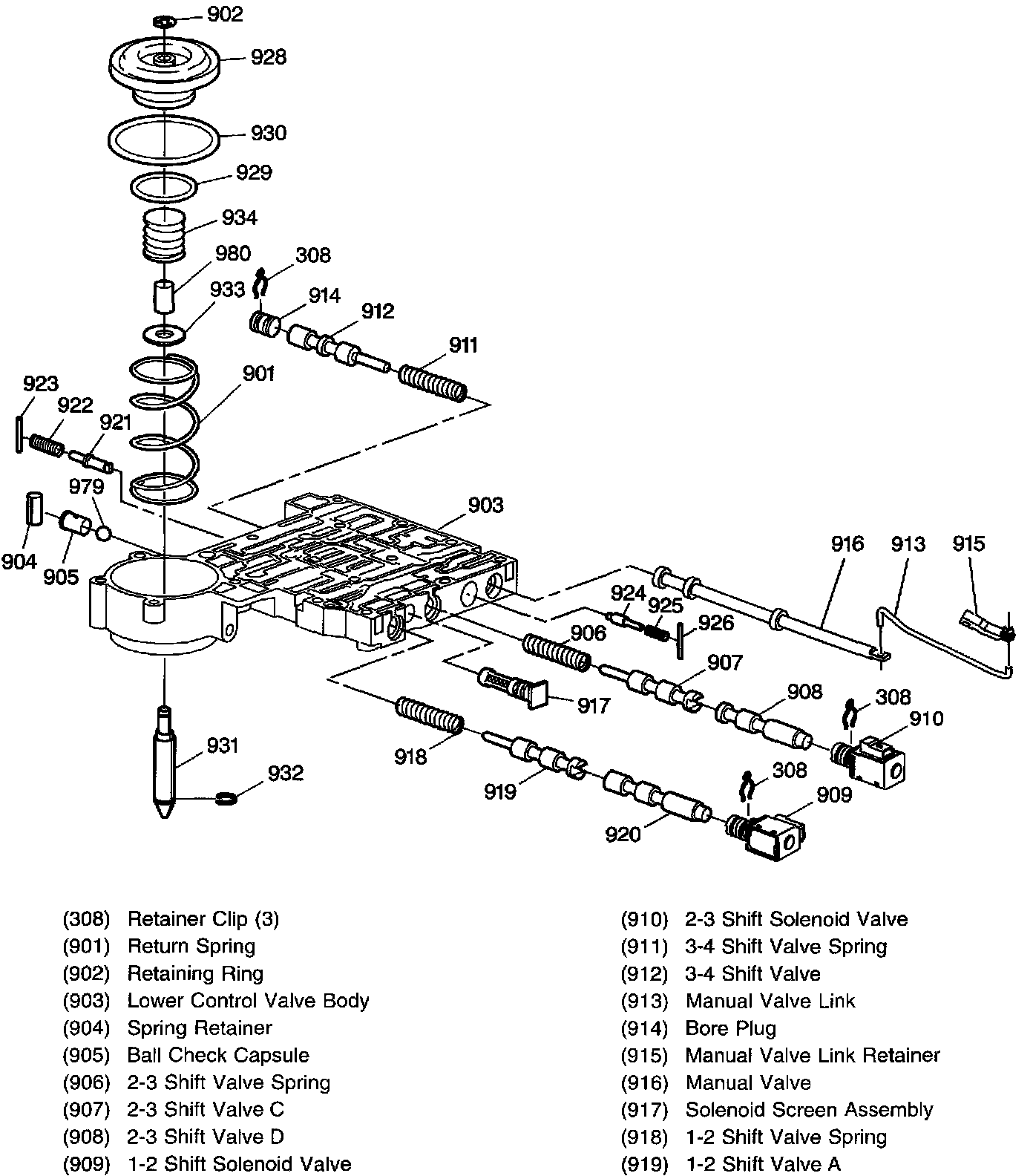

Lower Control Valve Body Assembly

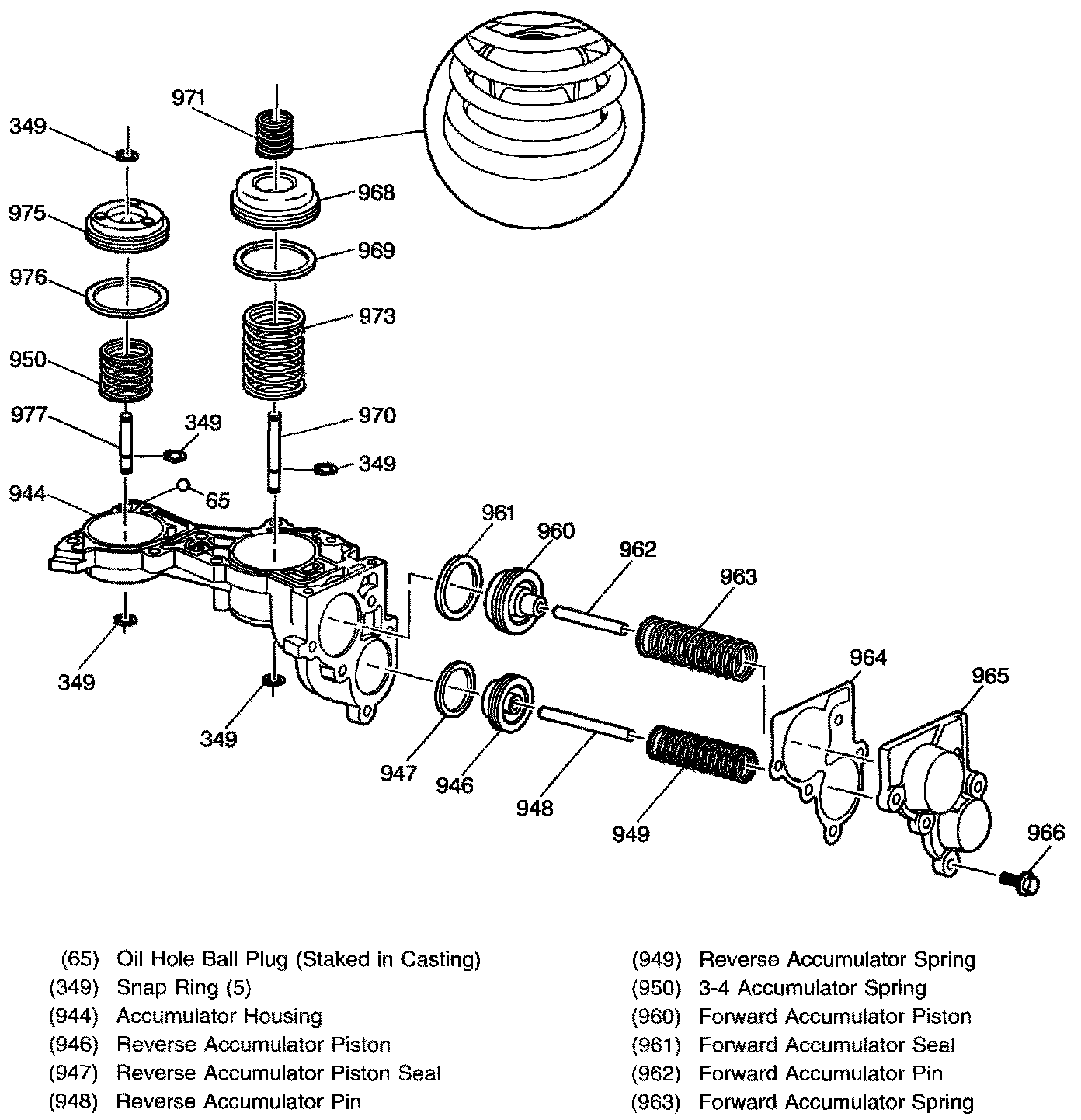

Accumulator Assembly

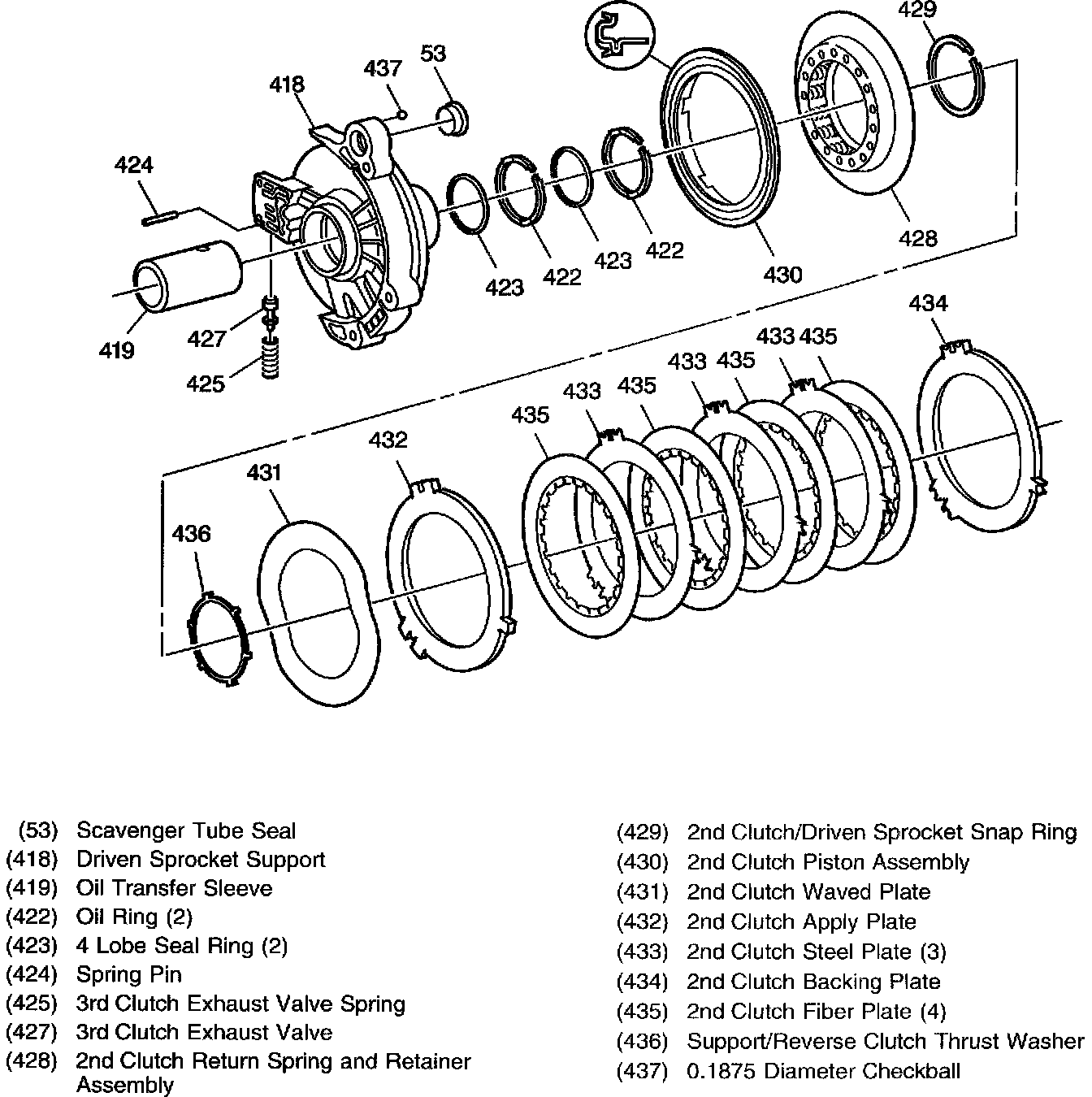

Driven Sprocket Support and 2nd Clutch Assembly

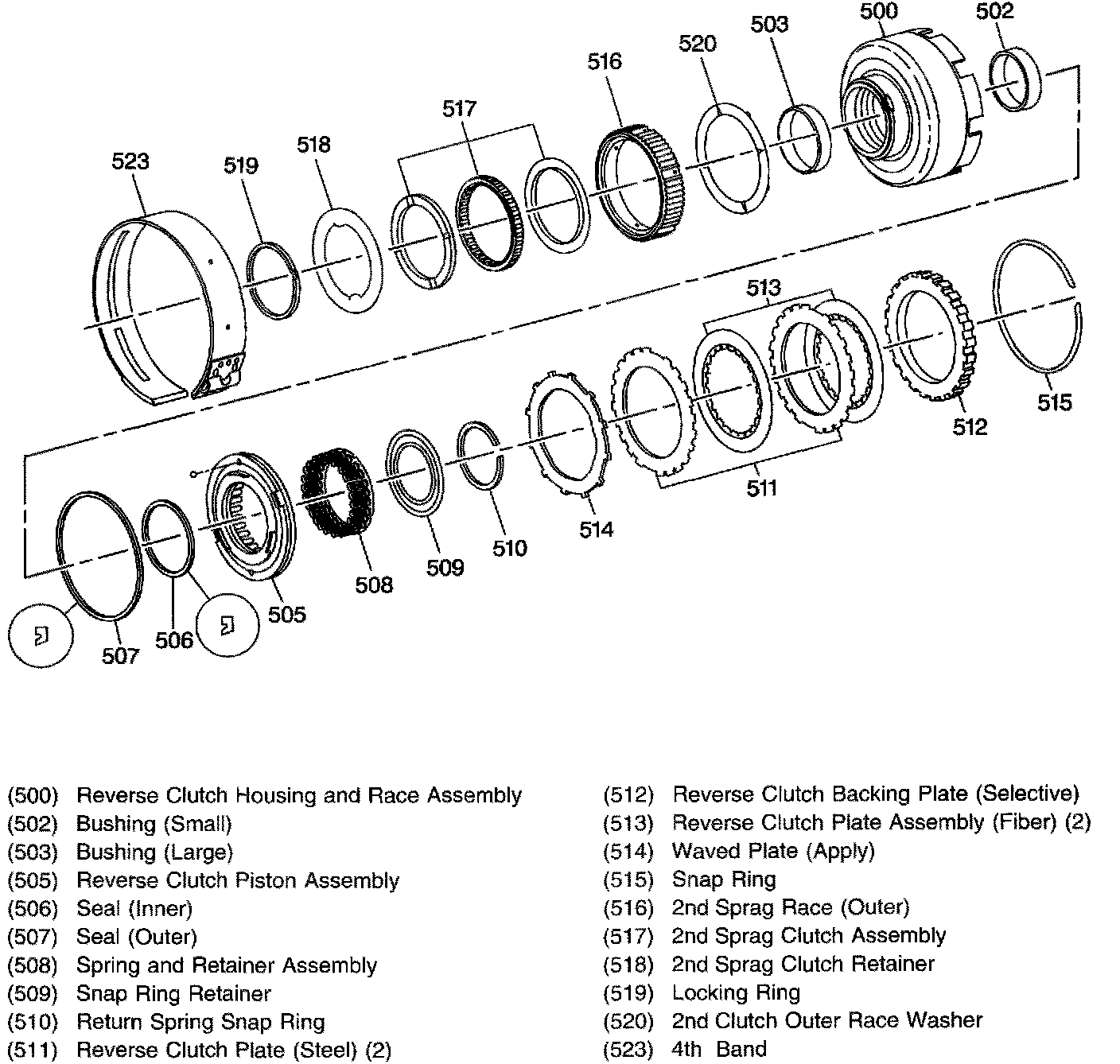

Reverse Clutch and 2nd Sprag Clutch Assemblies

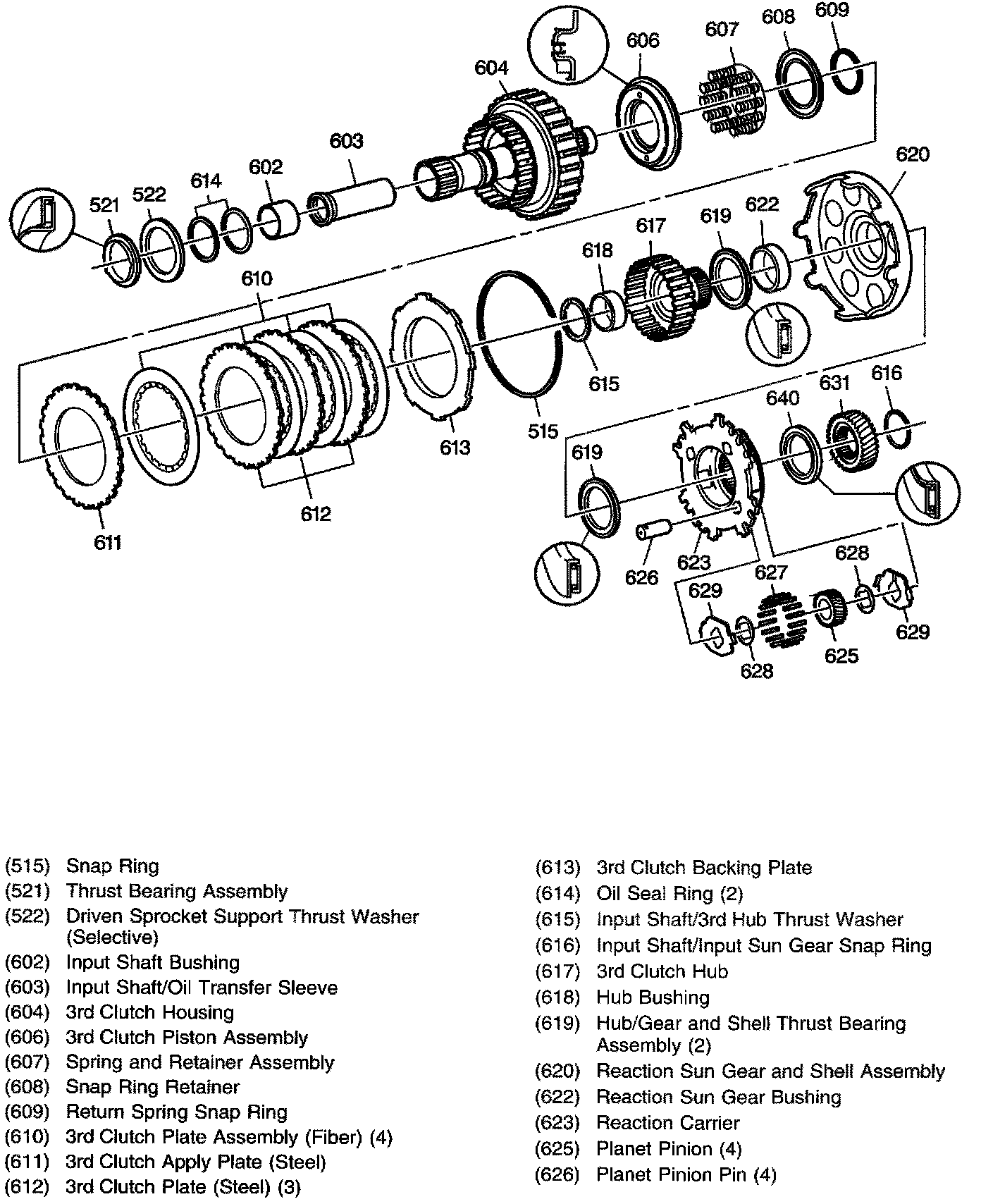

3rd Clutch and Reaction Carrier Assembly

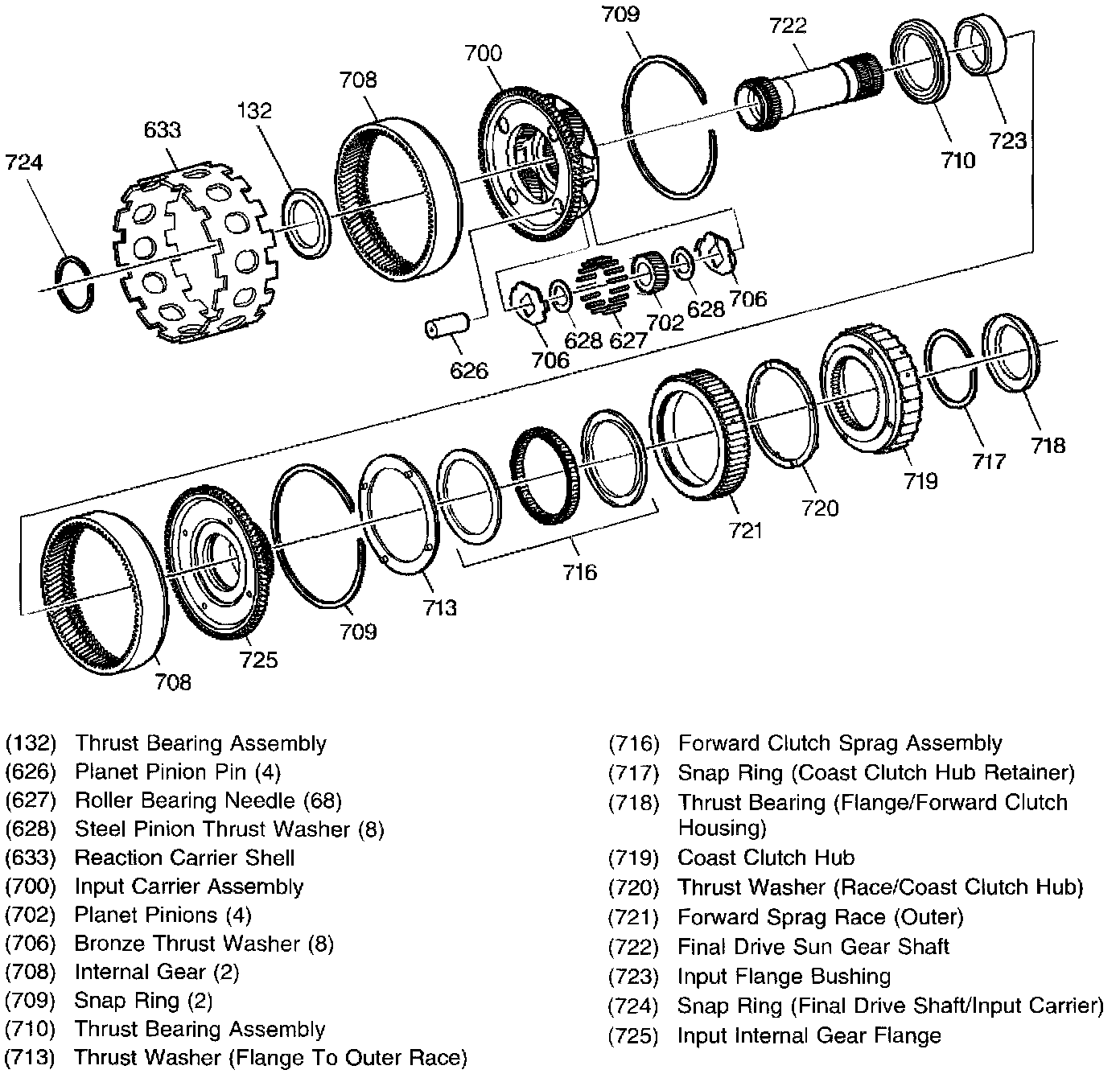

Input Carrier and Forward Sprag Clutch Assemblies

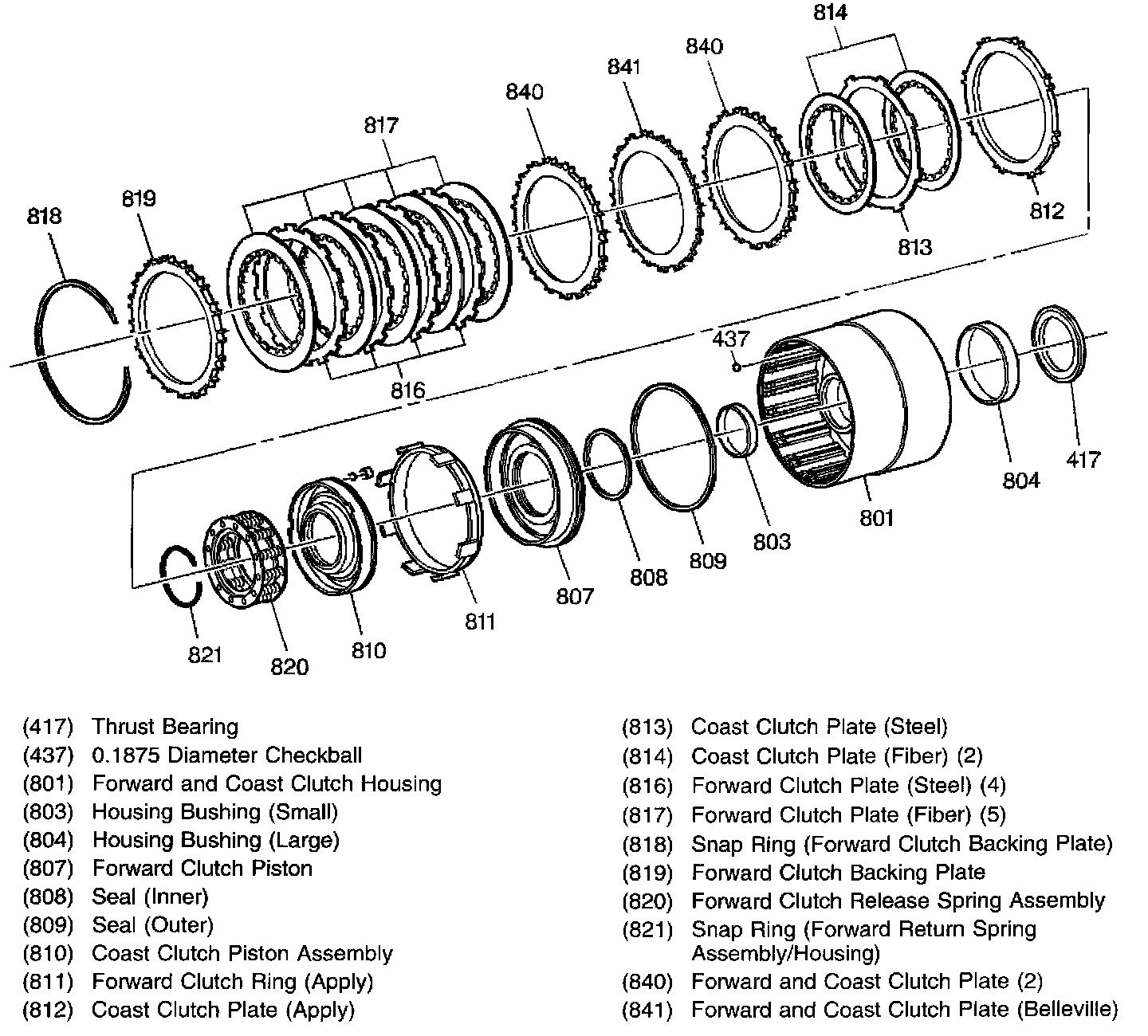

Forward Clutch Assembly

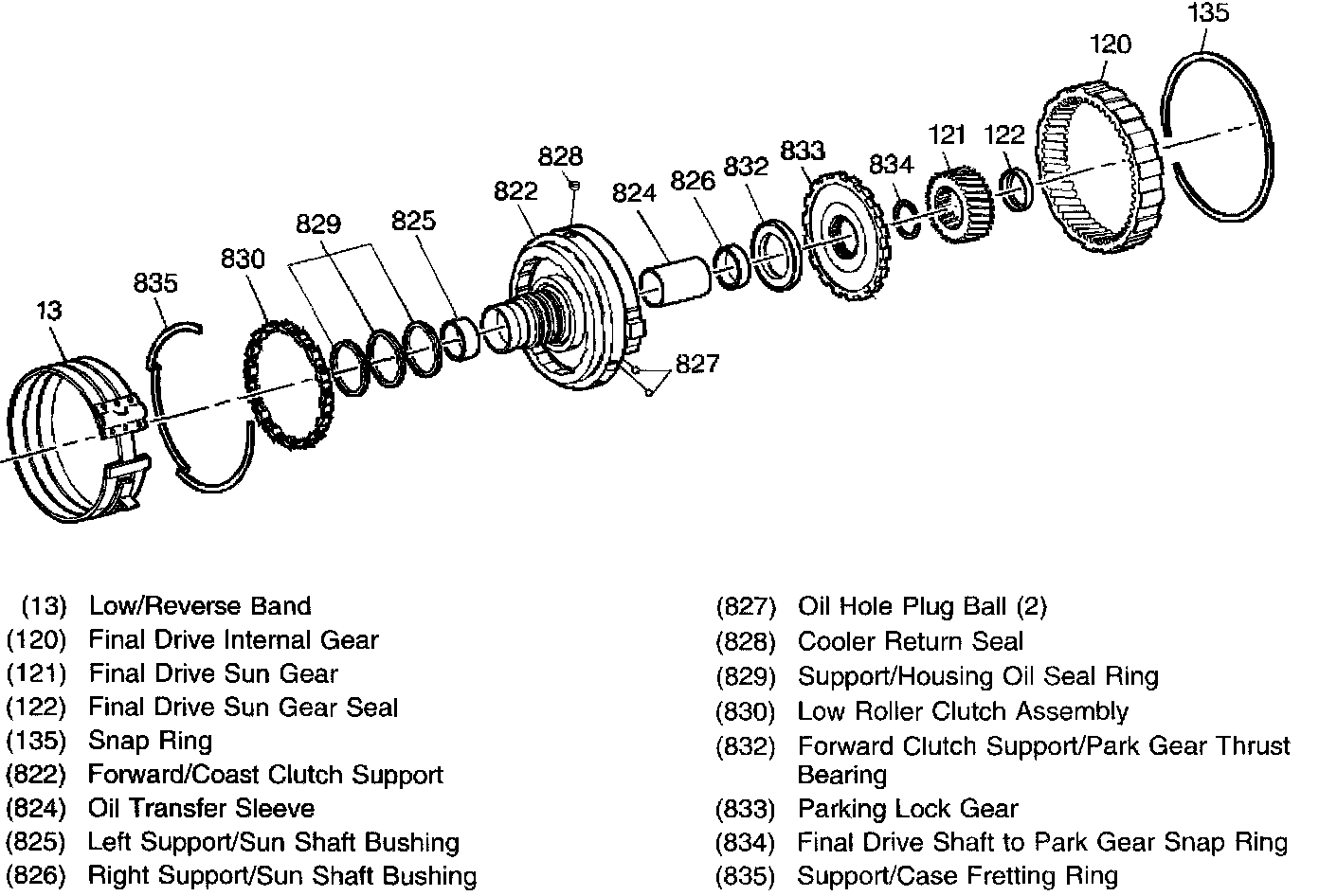

Forward Clutch Support Assembly

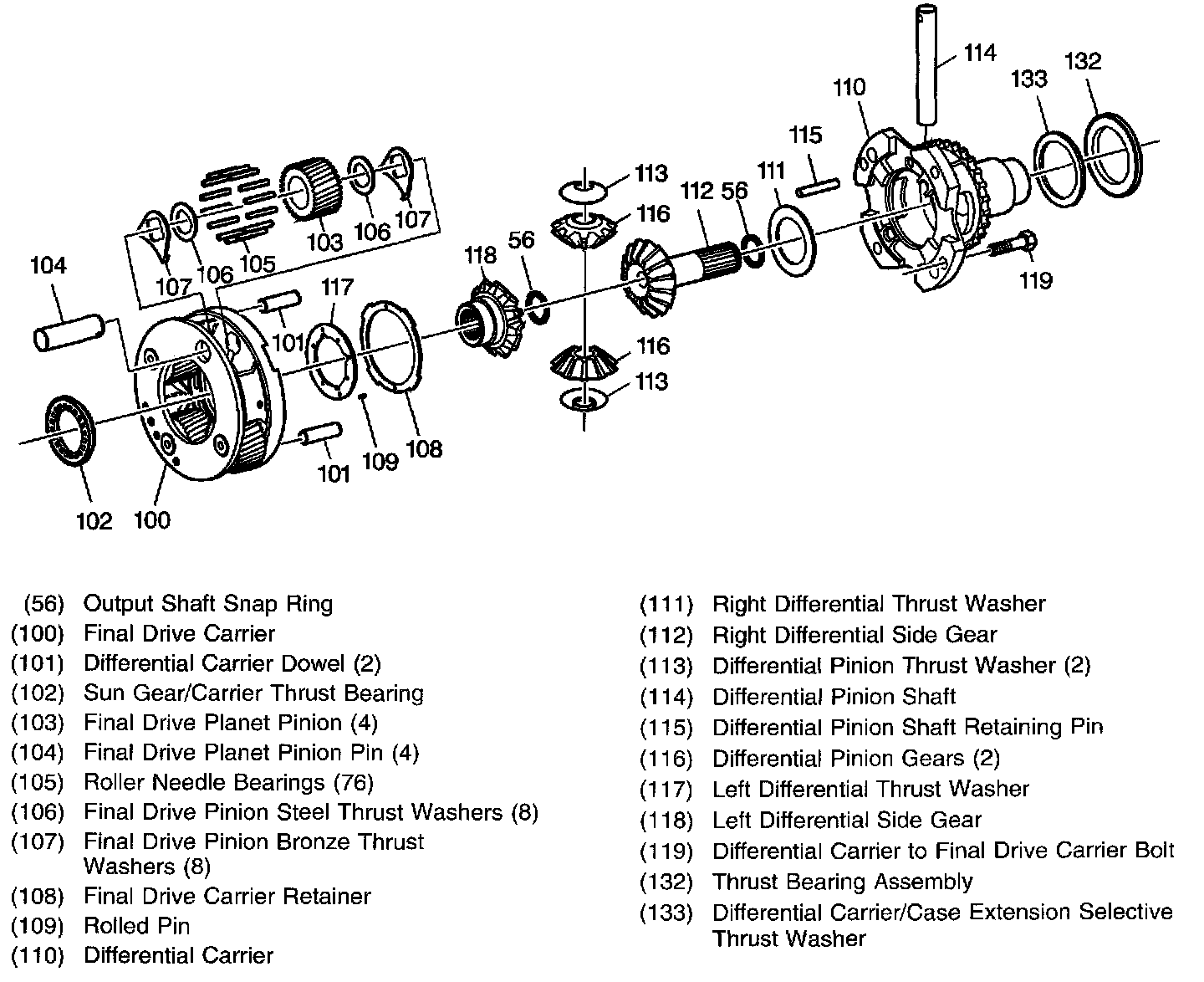

Final Drive Assembly

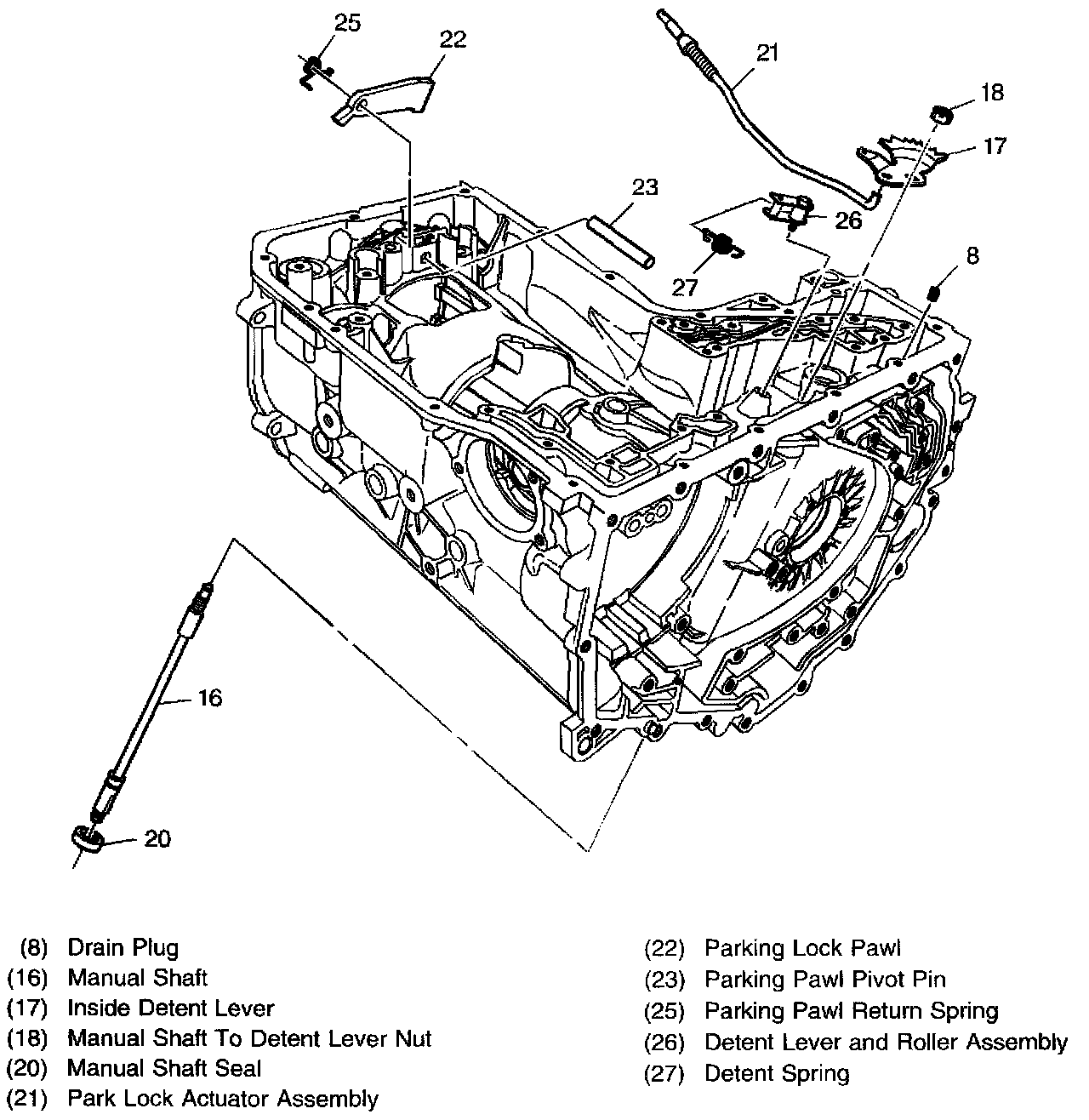

Parking Pawl, Actuator Assembly and Manual Shaft
