Scan Tool Data List - Powertrain Control Module (PCM)

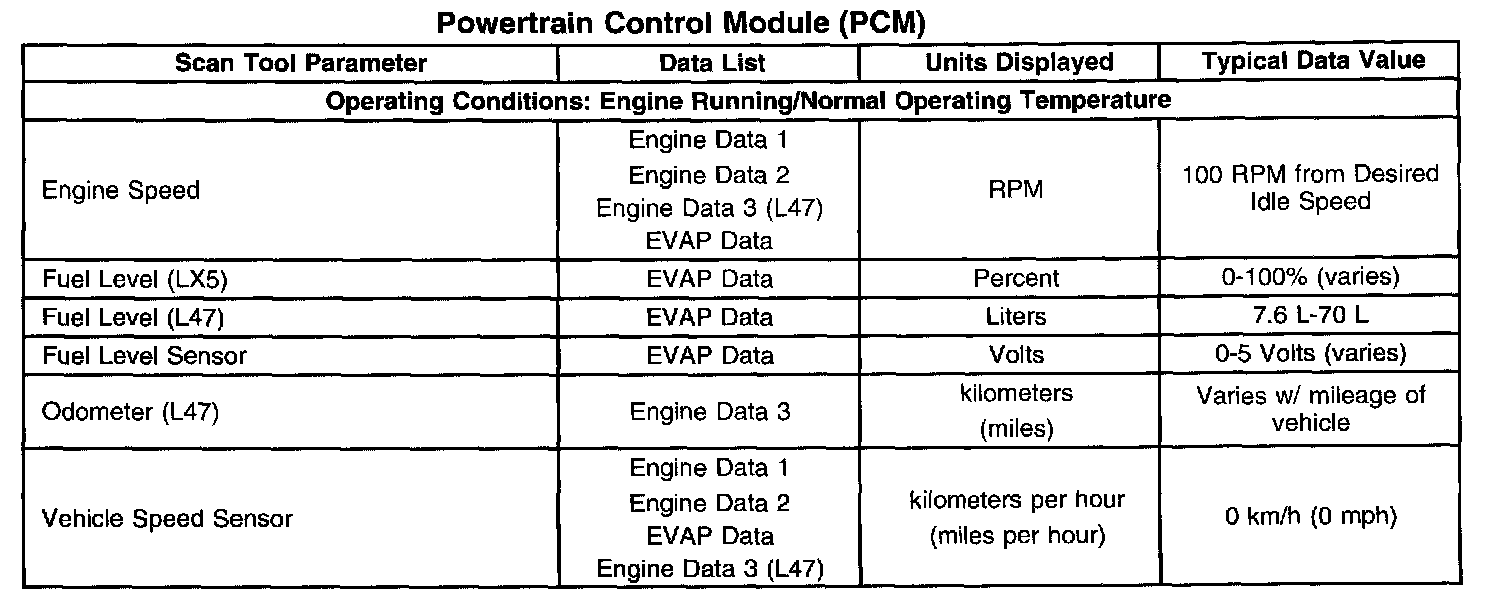

Powertrain Control Module (PCM) Part 1:




Powertrain Control Module (PCM) Part 2:





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application". RPO Codes
