Automatic Transmission/Transaxle

Automatic Transaxle - 4T80-E





Transmission Internal Mode Switch Logic





Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic

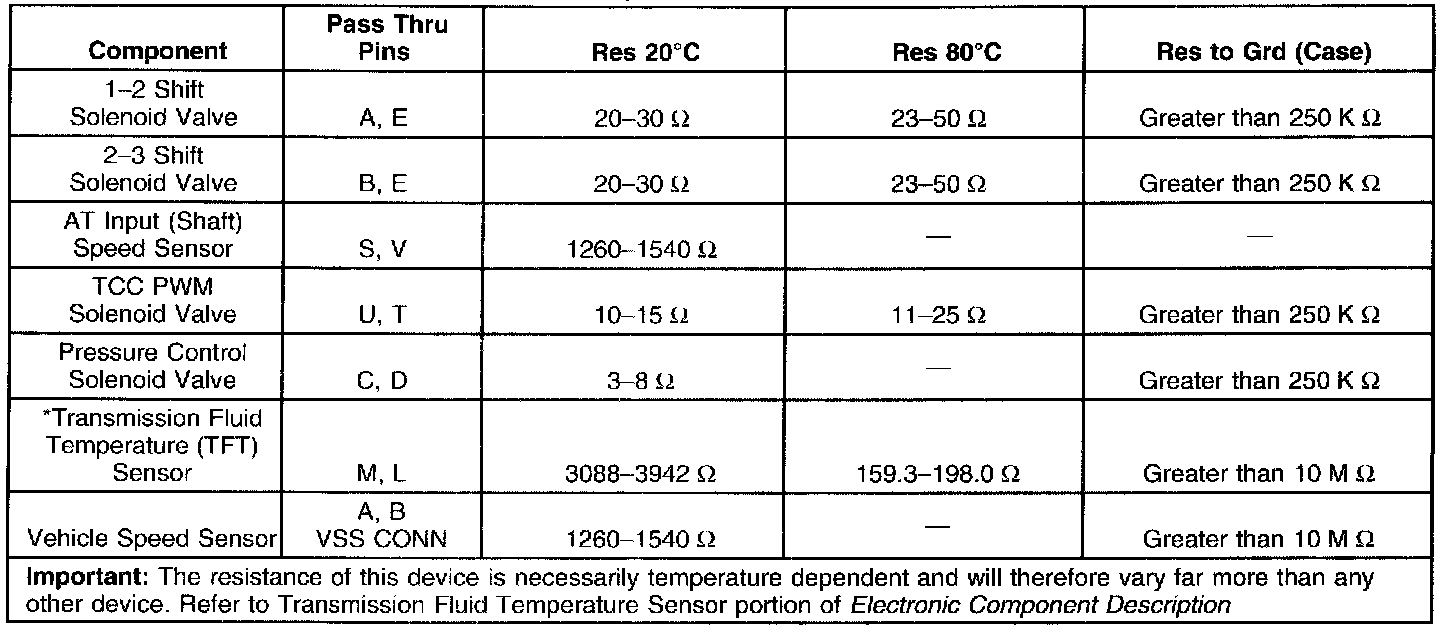

Component Resistance
