Removal Procedure

  1. Raise the vehicle. Lifting and Jacking the Vehicle in General Information.
  2. Remove two electrical connectors on the side of the EBCM.

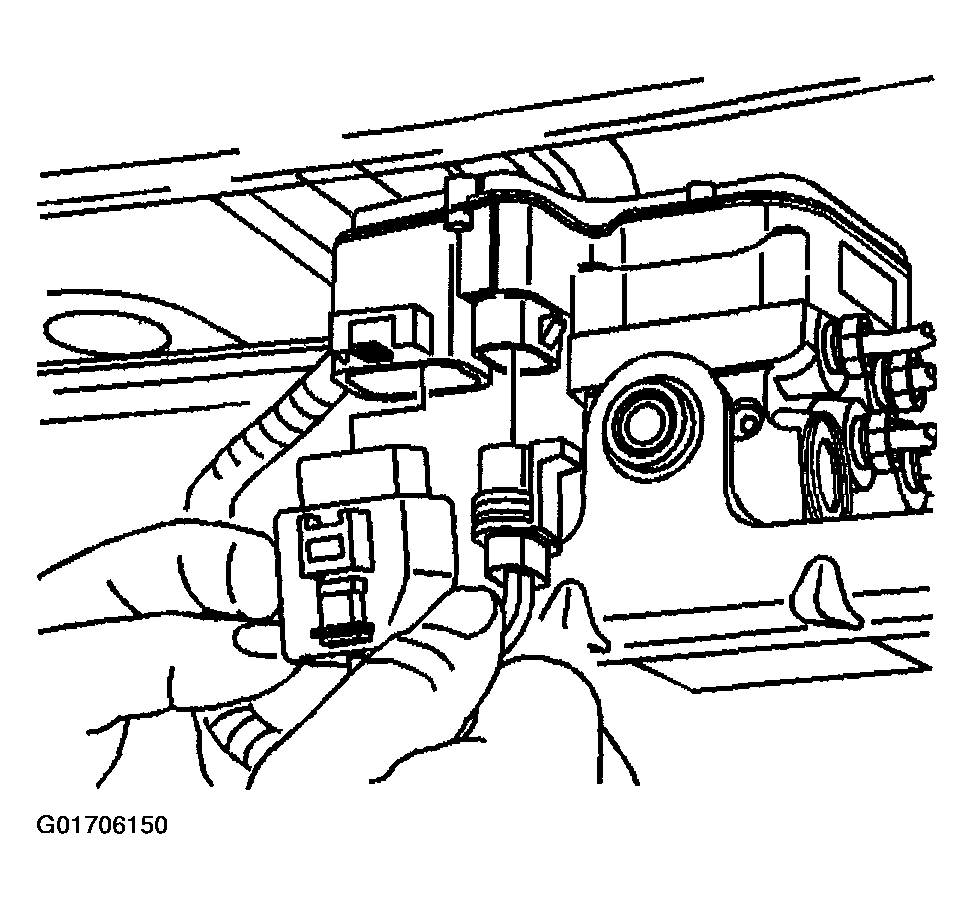

    3. Fig 1: Removing Two Electrical Connectors On Side Of EBCM
    G01706150Courtesy of GENERAL MOTORS CORP.
  3. Using a long flat bladed screw driver, release the lock tab on the electrical connector located on the back of the EBCM.
    IMPORTANT: When performing the following service procedure, make sure that the TORX® screw heads are clean for the proper installation of the T 25- TORX® bit. If the TORX® screw are damaged or can not be removed, replace both the EBCM and the BPMV.
    4. Fig 2: Releasing Electrical Connector Lock Tab
    G01706151Courtesy of GENERAL MOTORS CORP.
  4. Using a T 25-TORX® bit, remove the 4 mounting screws.
    IMPORTANT: Removal may require a light amount of force. DO NOT pry on the EBCM or the BPMV.
  5. Remove the EBCM from the BPMV.

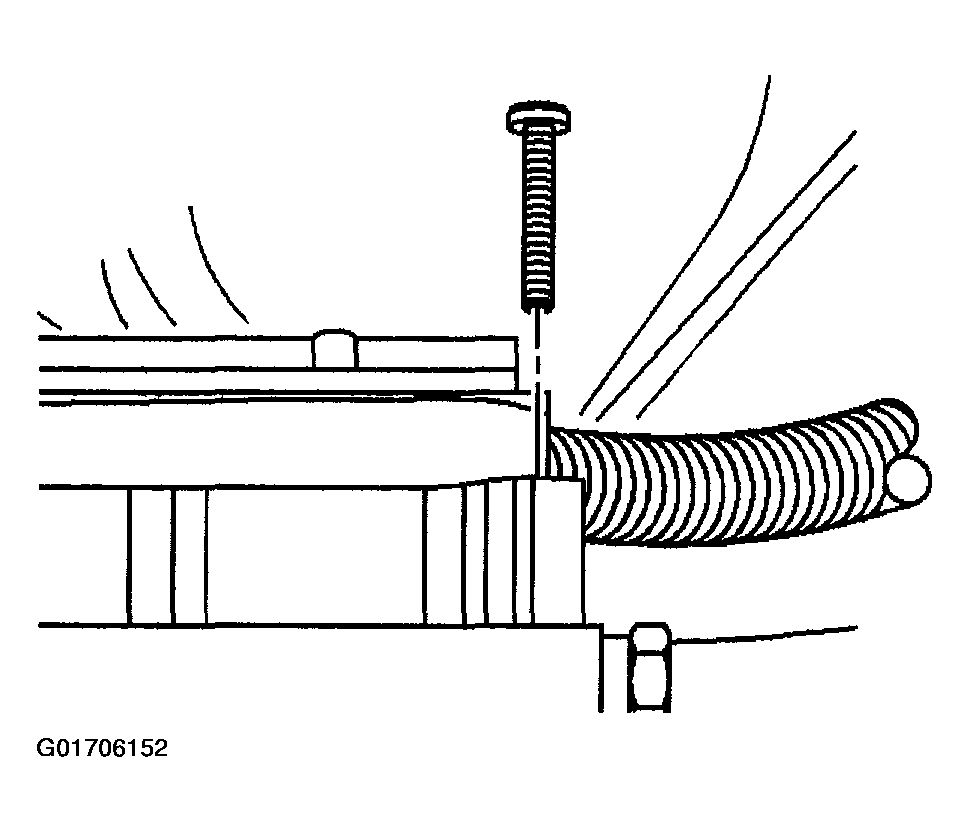

    6. Fig 3: Removing EBCM From BPMV
    G01706152Courtesy of GENERAL MOTORS CORP.
