Transfer Case Connector End View

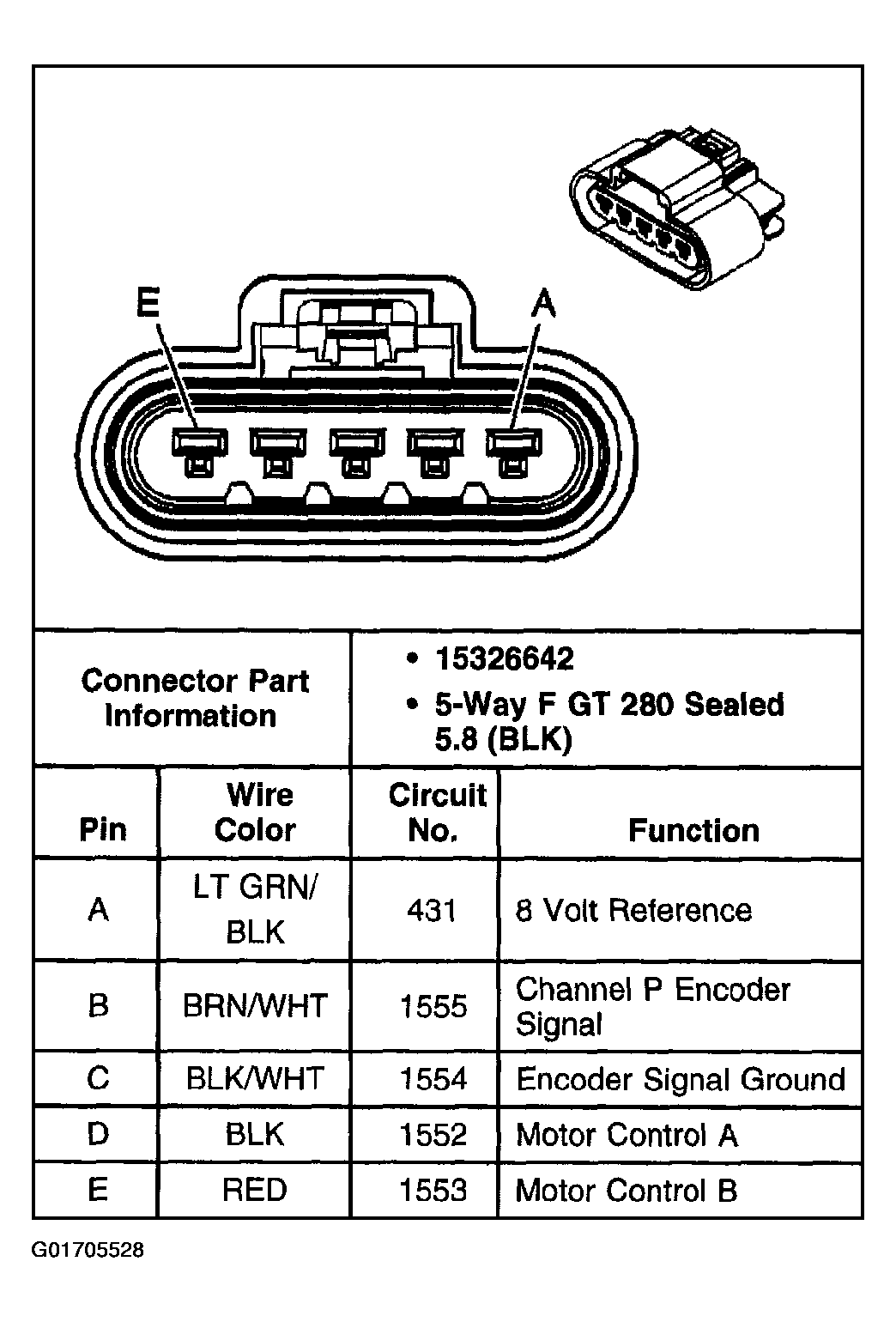

Fig 1: Transfer Case Connector
G01705528Courtesy of GENERAL MOTORS CORP.

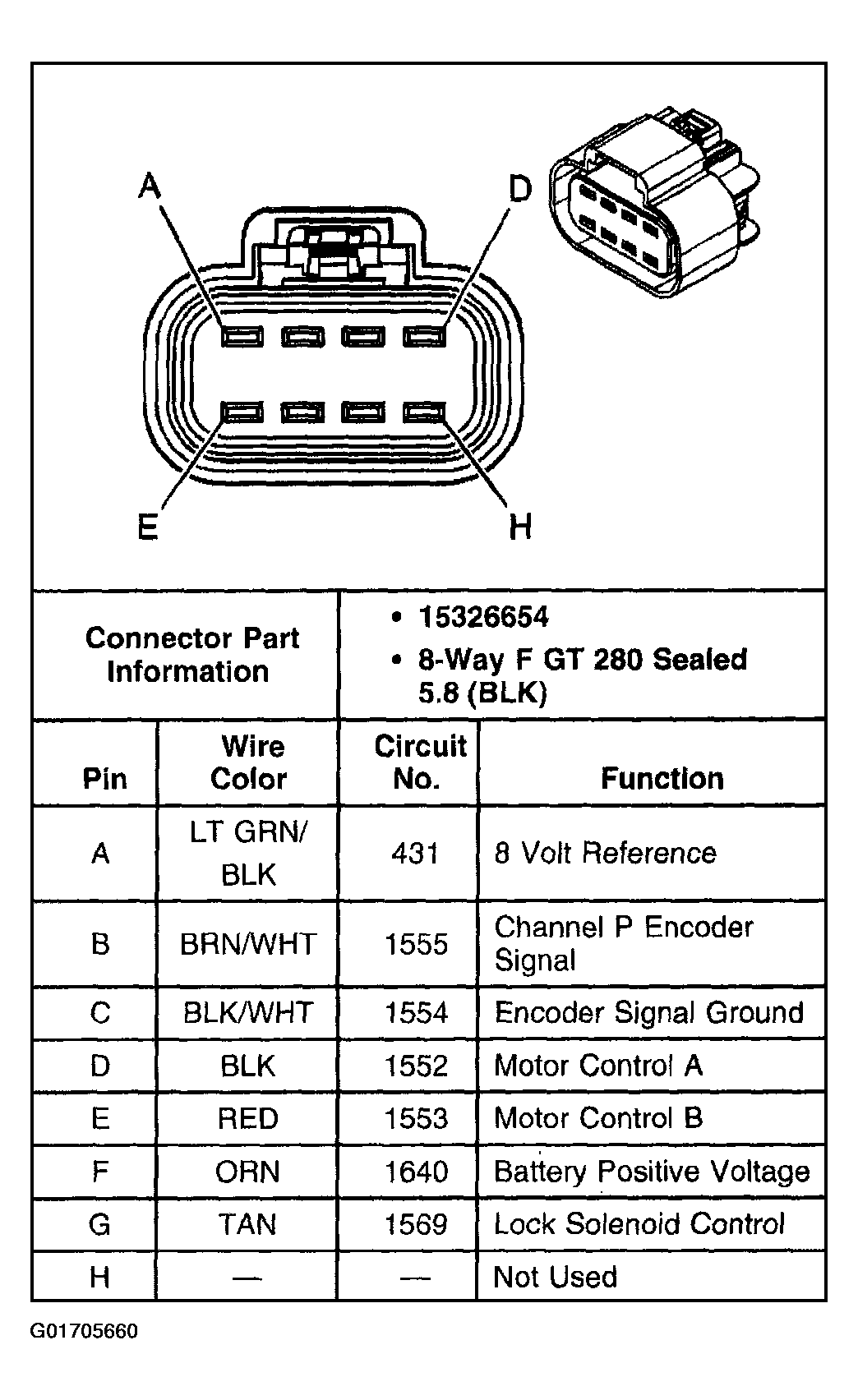

Fig 1: Transfer Case
G01705660Courtesy of GENERAL MOTORS CORP.
